Overview

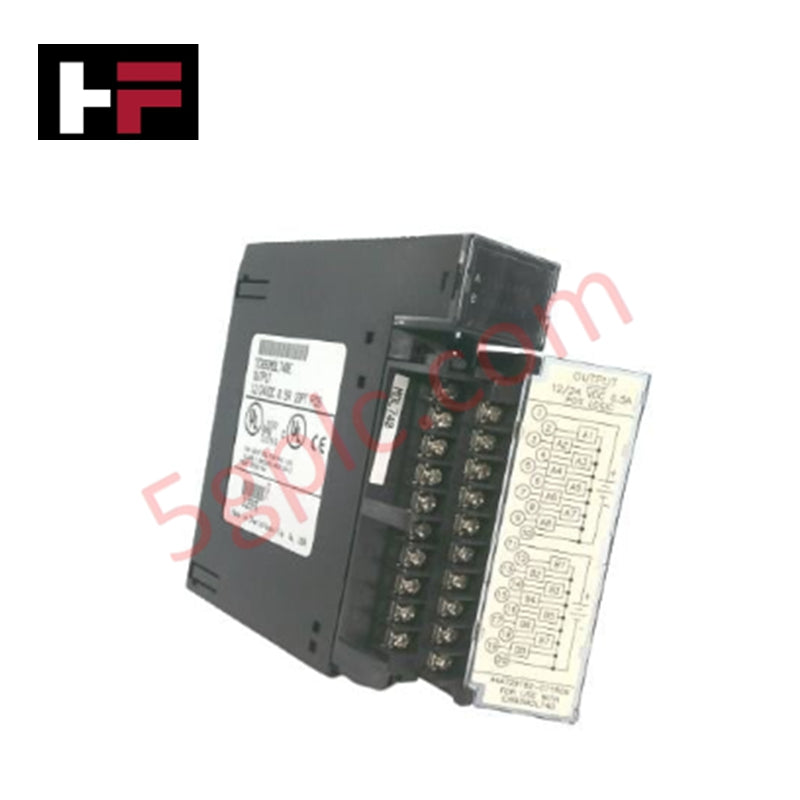

The IC693MDL740 from GE Fanuc is a 16-point positive logic output module designed for Series 90-30 PLC systems. It features two groups of eight channels each, supporting 12–24 VDC operation with a maximum output of 0.5 A per channel. Its sourcing configuration ensures reliable current delivery to connected devices.
Technical Specifications
-
Manufacturer: GE Fanuc Emerson
-
Model / Part Number: IC693MDL740
-
Product Type: Digital I/O Output Module
-
Series: Series 90-30
-
Weight: 0.75 lbs (0.34 kg)
-
Number of Output Points: 16
-
Circuit Type: Sourcing, Positive Logic
-
Output Voltage Range: 12–24 VDC (+20%, –15%)
-
Nominal Voltage: 12/24 VDC
-
Groups: 2
-
Channels per Group: 8
-
Output Current per Channel: 0.5 A
-
Peak Current per Common: 2 A for 10 ms
-
Inrush Current: 4.78 A for 10 ms
-
Maximum Voltage Drop: 1 V
-
Response Time (ON/OFF): 2 ms maximum
-
Module Current Draw: 110 mA
-
Module Input Voltage: 5 VDC
-
Operating Temperature: 0°C to 60°C
-
Storage Temperature: –40°C to 85°C
-
Relative Humidity: 5–95%
Features
-
LED status indicators for each output channel
-
Compact design for single-slot installation in Series 90-30 bases
-
Supports multiple industrial loads including relays, solenoids, and indicators
-
Designed for precise, fast switching with minimal power draw
Applications
-
Interfacing and controlling actuators, relays, and signal devices in Series 90-30 PLCs
-
Suitable for factory automation, process control, and signal distribution
FAQ
Q: Can this module handle inductive loads?
A: The module is rated 0.5 A per point; external flyback diodes are recommended for inductive devices.
Q: How does this compare to IC693MDL742?
A: IC693MDL742 supports 1–2 A per channel and is suited for higher current loads, whereas IC693MDL740 is optimized for smaller 0.5 A devices.
