Product Details

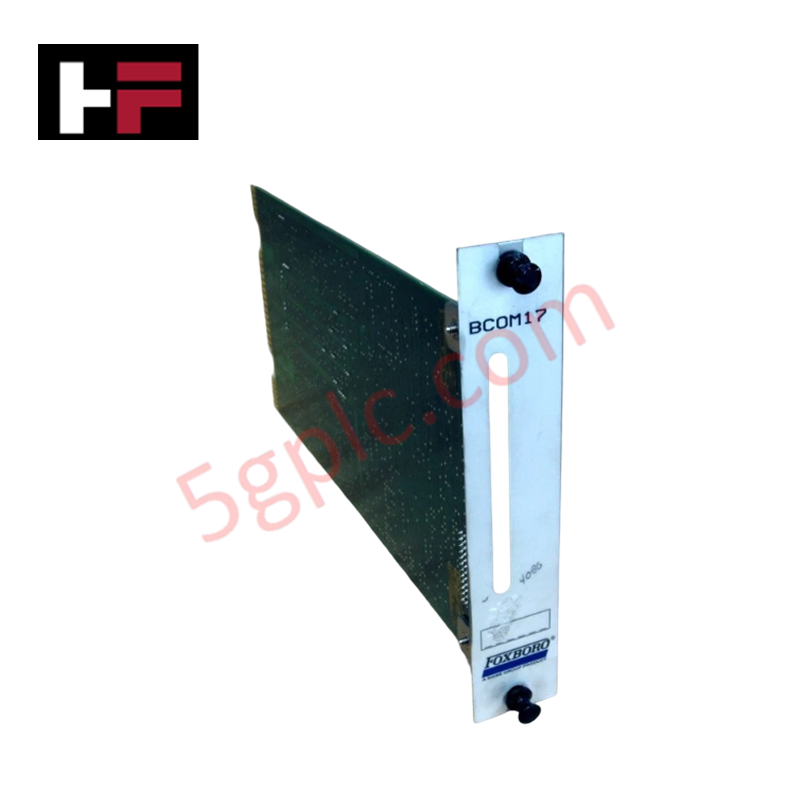

The Foxboro P0914QG BCOM17, also cataloged as the P0914QG Integrator Board, operates as a dedicated hardware component for field device communication and internal power distribution within Foxboro Invensys DCS control networks. Designed for real-time signal routing and data transfer, it processes high-speed digital communications across multi-node hardware architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | P0914QG |
| Brand | Foxboro |
| Origin | USA |
| Weight | 0.3 kg |
| Dimensions | 120 x 60 x 20 mm |
| Operating Temp | 0 deg C to +60 deg C |
| Power Consumption | Standard system backplane power drawing low power |
| Component Type | DCS Integrator Board (BCOM17) |
| Communication Protocols | Multiprotocol serial and system bus integration support |
| Processing Speed | High-speed real-time data handling architecture |
| Memory Capacity | Integrated onboard program and runtime data memory |
| System Compatibility | Foxboro Invensys DCS platforms |
Channel-to-Channel Isolation and Loop Protocol Connectivity
The Foxboro P0914QG BCOM17 board incorporates galvanic channel-to-channel isolation on physical communication lines to reject industrial high-voltage noise and common-mode transients. Integrated data routing logic maintains deterministic signal transmission over 4-20 mA HART loop protocol interface lines, preventing cross-channel electrical interference and eliminating cold junction compensation (CJC) reference errors in process I/O sub-assemblies.
Frequently Asked Questions
Q: How is the P0914QG module mounted and physically anchored within the host assembly?
A: The board mounts directly into the host DCS card cage or subsystem backplane, mating with edge connectors that secure physical power distribution and bus signal routing.
Q: What mechanisms on the P0914QG support fault-tolerant signal execution?
A: The board incorporates hardware-level fault monitoring circuitry and error checking to maintain deterministic data flow and prevent signal interruption across redundant system buses.
Field Installation Guidelines
Insert the P0914QG BCOM17 board into its designated chassis or backplane card slot, ensuring the edge contacts fully engage with the receptacle before tightening mounting screws. Disconnect primary 24 VDC power to the rack prior to module insertion or removal to prevent electrical arcing.
Ground all communication cable shields directly to the panel chassis ground terminal to maintain immunity against EMI/RFI interference. Route field wiring separate from high-voltage AC conductors, ensuring all cabinet conduit fittings maintain a minimum of 5 full threads of engagement on NPT connection ports.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
