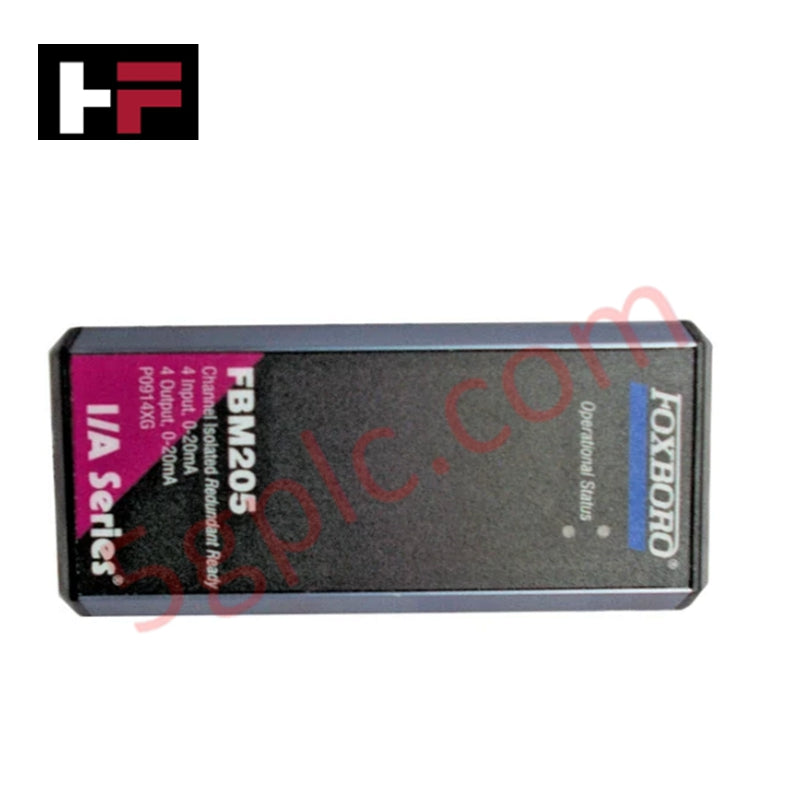

Foxboro FBM205 I/A Series Redundant Analog I/O Interface Module

Product Overview

The Foxboro FBM205 functions as a high-density, redundant analog interface within the I/A Series Distributed Control System (DCS). This module manages four 0–20.4 mA DC analog input channels and four 0–20.4 mA DC analog output channels simultaneously. By providing a direct bridge between field sensors, actuators, and the control network, the FBM205 enables precise monitoring and execution of process variables. We supply this unit as 100% Brand New and Original, ensuring your facility utilizes the latest hardware revisions for maximum operational longevity.

Technical Specifications

Engineering Advantages

The FBM205 solves critical architectural challenges in modern process automation:

• Galvanic Isolation Protection: The module incorporates rigorous galvanic isolation between individual channels and the system logic. This barrier prevents ground loops and protects the control core from high-voltage field-side surges.

• Fault-Tolerant Redundancy: The FBM205 supports redundant fieldbus communication. If one communication path fails, the module continues to transmit data over the secondary path without interrupting the process loop.

• Extreme Climate Resilience: Unlike standard commercial electronics, the FBM205 operates across a wide temperature spectrum from -40°C to +70°C. This eliminates the need for expensive climate-controlled enclosures in many outdoor or remote staging environments.

• Compact Signal Integration: By combining both input and output functions into a single footprint, the module reduces the total number of baseplate slots required, effectively lowering the cost per I/O point and saving cabinet space.

FAQs

• Can I hot-swap the FBM205 during active plant operations?

  Yes. The I/A Series architecture allows for the hot-swapping of FBM205 modules. When you plug a new Brand New module into an active baseplate, the system automatically recognizes the hardware and re-establishes communication without requiring a full system reboot.

• How does the module handle signal over-range conditions?

  The FBM205 supports a range up to 20.4 mA DC. This headroom allows the control system to detect "off-scale" high signals, which helps distinguish between a process alarm and a hardware malfunction.

• Does this module support HART protocol communication?

  The standard FBM205 focuses on high-speed analog signal processing (0-20 mA). If your application requires HART digital data overlay, please verify your specific sub-model variant or contact our technical team for compatible HART-enabled interface options.

• What mounting options are available for the FBM205?

  The module snaps directly into standard Foxboro FBM baseplates (Modular Baseplates). Ensure the baseplate provides the necessary redundant fieldbus connections to utilize the module's full fail-safe capabilities.
