FC-TDIO51 | Honeywell | 24VDC Digital Safety I/O Module

Product Description

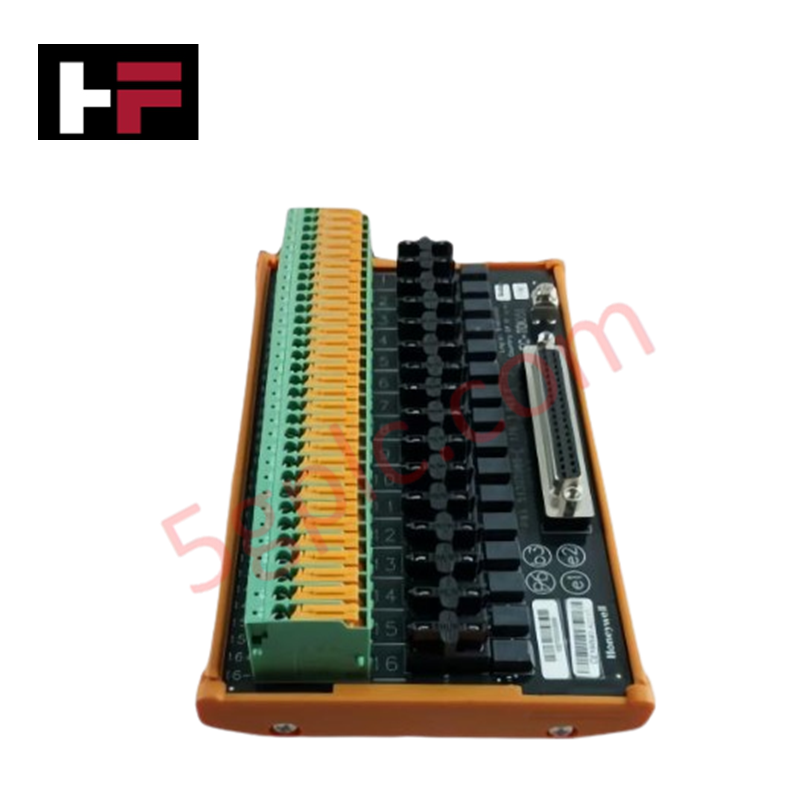

The FC-TDIO51 (Part No. FC-TDIO51) is a high-performance digital input/output module engineered for the Honeywell Safety Manager and Safety Manager SC platforms. This module is designed to handle safety-critical discrete signals, providing 16 channels of 24V DC I/O. Its primary function is to interface field devices such as pushbuttons, limit switches, and small solenoids directly with the safety controller, ensuring high-speed logic execution within SIL 3 rated loops.

The FC-TDIO51 features advanced internal diagnostics and line monitoring capabilities, allowing it to detect field faults including short circuits and wire breaks. Its compact form factor and robust thermal management make it suitable for high-density cabinet installations in demanding industrial environments.

Technical specifications

• I/O Configuration: 16-channel Digital Input/Output (Configurable)

• Operating Voltage: 24V DC nominal

• Input Signal Range: 0 to 30V DC

• Output Drive Capacity: Up to 0.5A per channel (short-circuit protected)

• Diagnostics: Comprehensive self-test and field loop monitoring

• Response Time: Less than 1ms (internal logic)

• Physical Dimensions: 8.0 cm x 10.0 cm x 11.0 cm

• Unit Weight: 0.5 kg

• Environmental Rating: Conformal coated for corrosive atmosphere protection

• Manufacturing Origin: United States

Field ApplicationsThe FC-TDIO51 is commonly deployed in Emergency Shutdown Systems (ESD), Burner Management Systems (BMS), and Fire and Gas (F&G) detection arrays. It provides the necessary granularity for small to medium-scale safety instrumented functions where high signal integrity is required.

Technical FAQ

• Does the FC-TDIO51 support redundant configurations?

• Yes, the FC-TDIO51 can be utilized in redundant pairs to increase system availability and ensure the safety function remains active even during a single module fault.

• Is line monitoring available on all channels?

• Line monitoring (detecting open or short circuits) is available on all channels when configured correctly with end-of-line resistors in the field.
