Product Details

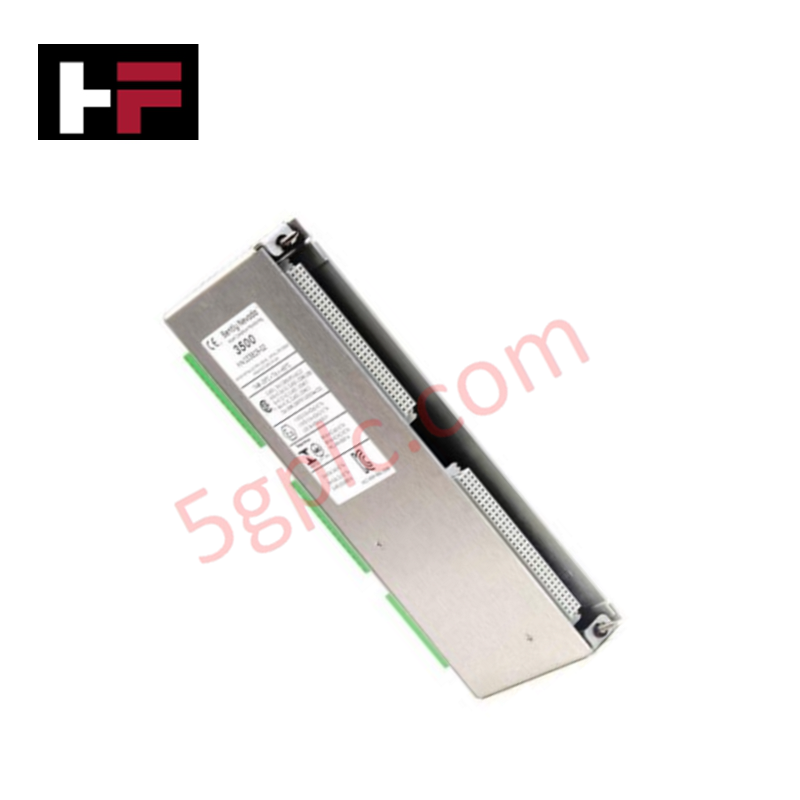

The 133924-01 is a thermocouple (TC) isolated external termination block designed by Bently Nevada for use with the 3500 Machinery Protection System. Equipped with terminal strip screw connectors, this unit routes field thermocouple wiring safely to 3500/60 and 3500/61 temperature monitoring modules, maintaining channel-to-channel electrical isolation to reduce ground loop interference.
Signal Isolation and Wiring Interconnection
This external termination block provides isolated connection points specifically suited for thermocouple sensor inputs. It interfaces between field-installed sensor lead wires and the corresponding 3500 system external termination I/O module via dedicated interconnect cables. The terminal strip layout provides robust screw-clamp wire landings to ensure solid low-resistance connections for low-millivolt temperature signals.
System Integration and Compatibility
The 133924-01 block is designed exclusively for 3500/60 and 3500/61 temperature monitoring I/O modules configured for external termination. External termination blocks cannot be used with internal termination I/O modules. When configuring a 3500 temperature monitoring system with external termination hardware, the termination block, external termination I/O module, and interconnecting cable assemblies must be specified separately.
| Parameter | Specification |
|---|---|
| Model | 133924-01 |
| Brand | Bently Nevada |
| Product Type | External Termination Block |
| Signal Type | Thermocouple (TC) Isolated |
| Connector Type | Terminal Strip Connectors |
| Compatible System | 3500 Machinery Protection System |
| Compatible Modules | 3500/60 & 3500/61 Temperature Monitors |
| Shipping Weight | 2.0 kg (4.4 lb) |
Frequently Asked Questions
Q: What temperature sensors are supported by the Bently Nevada 133924-01 termination block?
A: The 133924-01 is specifically engineered for isolated thermocouple (TC) inputs connected to 3500/60 or 3500/61 temperature monitoring modules.
Q: Can the 133924-01 block be used with internal termination I/O modules?
A: No, external termination blocks are strictly compatible with external termination I/O modules and require separate interconnecting cabling.
Q: What connector style is featured on the 133924-01 block?
A: This model uses standard screw-clamp terminal strip connectors for field wiring termination.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
