Product Details

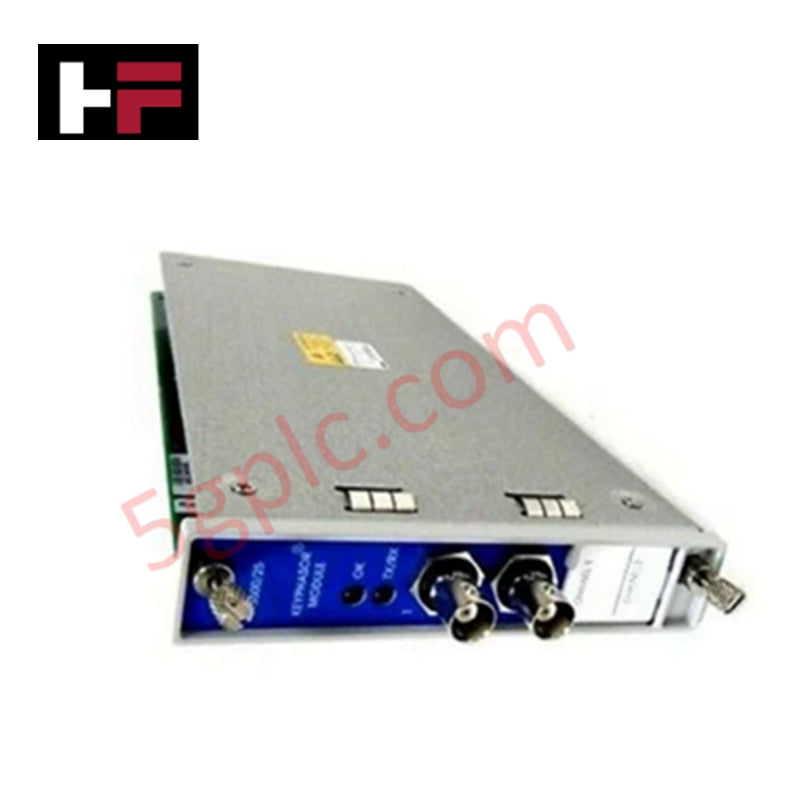

The 3500/25-01-01-01 is a 2-channel Keyphasor module engineered for the Bently Nevada 3500 Machinery Protection System. Designed as a single half-height card, it processes input signals from shaft transducers to provide phase reference timing and rotational speed measurements for other monitoring modules across the rack backplane. This specific configuration features internal termination connections and CSA/NRTL/C hazardous area certification.
Hardware Configuration and Ordering Breakdown
The ordering option digits define the specific physical build and certification level of this module:
- Channel Option (-01): Single half-height 2-channel Keyphasor card.
- I/O Module Option (-01): Internal termination I/O module providing direct terminal strip wire landings.
- Agency Approval Option (-01): CSA/NRTL/C agency approval for certified installations.
Electrical and Environmental Specifications
The module operates on 24 VDC power supplied directly through the rack backplane, with a current consumption of 40 mA and a total power rating of 3.2 W. Designed for industrial control environments, it maintains reliable operation across an ambient temperature range of -30 deg C to +65 deg C.
| Parameter | Specification |
|---|---|
| Model | 3500/25-01-01-01 |
| Brand | Bently Nevada |
| Product Type | Keyphasor Module |
| Card Configuration | Single half-height 2-channel card (-01) |
| I/O Module Type | Internal Terminations (-01) |
| Agency Approval | CSA/NRTL/C (-01) |
| Operating Voltage | 24 VDC |
| Current Consumption | 40 mA |
| Power Consumption | 3.2 W |
| Operating Temperature | -30 deg C to +65 deg C |
| Weight | 1.01 lbs |
Frequently Asked Questions
Q: What channel architecture is supplied with the 3500/25-01-01-01 module?
A: The -01 option indicates a single half-height card containing 2 input channels for processing transducer phase reference signals.
Q: What power input is required for the Bently Nevada 3500/25-01-01-01?
A: It draws 40 mA at 24 VDC (3.2 W power consumption) directly from the 3500 rack backplane power distribution.
Q: What type of wiring connection does the -01 I/O module option provide?
A: The -01 option provides an internal termination I/O module with integral screw terminals for direct field wiring connections behind the rack.
