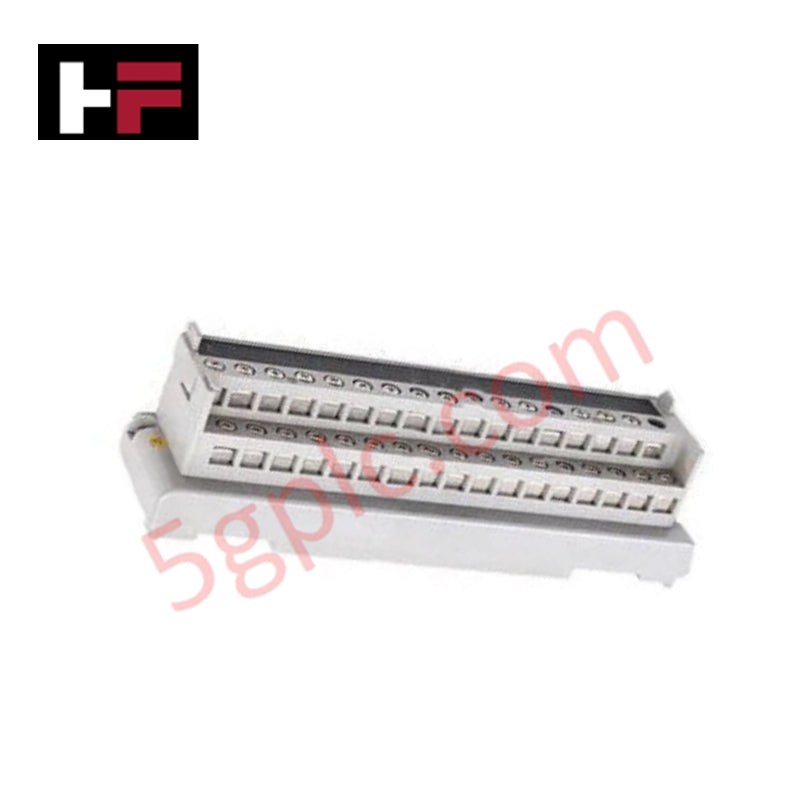

AMM52T | Yokogawa | Current Output Multiplexer Module for CENTUM Systems

The Yokogawa AMM52T is a specialized current output multiplexer module designed for the CENTUM CS and CENTUM VP distributed control systems. It addresses the challenge of managing multiple analog control loops efficiently by multiplexing 16 distinct current signals onto a single output channel architecture. This high-density solution is critical for industrial applications requiring precise actuator control or signal conversion, offering a streamlined way to expand system output capacity without occupying excessive panel space. With robust electrical isolation and high stability, the AMM52T ensures that critical control signals are transmitted accurately, minimizing the risk of interference in complex automation environments.

Technical Specifications

The AMM52T is engineered for high-precision analog signal management and reliable industrial performance.

Model Code Interpretation

For Yokogawa modules, the suffix code is the primary identifier for the physical interface type.

Part Number: AMM52T

AMM52-AXX

• A (Suffix -T): Indicates the Terminal Type.

• -T: Denotes that this module features screw terminals for direct field wiring. This allows for easy connection of output wires to actuators or converters without the need for specialized mating connectors or cable assemblies.

• Note: This is distinct from the "-C" (Connector) version, which would require a specific cable harness.

Installation and Wiring Guidelines

To ensure reliable operation and precise current output, follow these installation practices:

1. Carrier Compatibility: The AMM52T is designed to mount into specific I/O carrier boxes (such as the AMN series). Ensure the module is fully inserted into the slot and the locking mechanism is engaged to secure the connection to the backplane.

2. Direct Wiring: Since this is the "-T" (Terminal) version, you can wire field devices directly to the module face. Ensure that the wire gauge matches the terminal specifications and that connections are tightened to prevent contact resistance issues.

3. Isolation Verification: The module features electrical isolation between input and output channels. This is crucial for preventing ground loops and protecting the control system from voltage spikes on the field side. Verify that the field grounding is consistent with the system requirements.

4. Current Loop Configuration: When configuring the system, ensure that the load impedance connected to the output does not exceed the module's drive capability (typically limited by the 20 mA max rating).

Frequently Asked Questions (FAQ)

Q: What is the primary function of the AMM52T?

A: The AMM52T acts as a current output multiplexer. It allows the control system to manage and distribute 16 different analog current signals efficiently, consolidating them into a robust output interface.

Q: What does the "20 mA per channel" rating mean?

A: This indicates the maximum current drive capability for each output channel. It is the standard range for industrial process control (4-20 mA), ensuring compatibility with most industrial actuators and positioners.

Q: Is the AMM52T compatible with CENTUM VP?

A: Yes, the AMM52T is fully compatible with both CENTUM CS and the newer CENTUM VP systems, providing a seamless migration path for legacy hardware.

Q: Why is electrical isolation important in this module?

A: Electrical isolation protects the sensitive internal electronics of the DCS from high voltage spikes or noise on the field wiring side. It also prevents ground loops, which can cause significant errors in analog signal transmission.
