Product Details
Product Overview

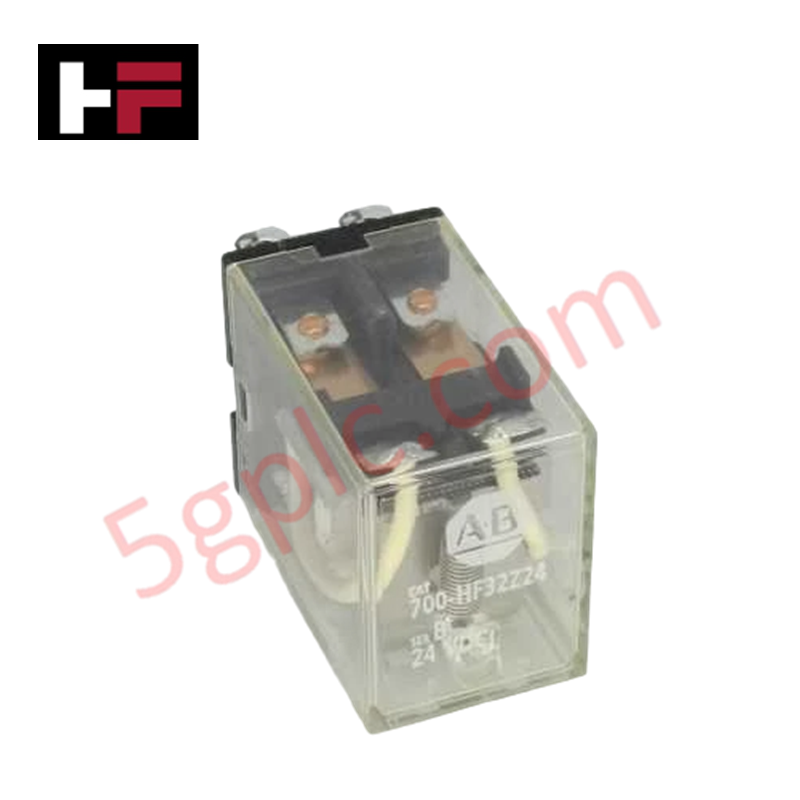

The Allen-Bradley 700-HF32Z24 serves as a high-capacity miniature square-base relay designed for demanding industrial switching environments. This 2-pole (DPDT) device manages high-current loads up to 12A while maintaining a compact footprint. We supply this component as 100% Brand New and Original, ensuring your control circuits benefit from pristine contact surfaces and factory-certified coil performance. It interfaces perfectly with standard plug-in sockets to facilitate rapid machine-level wiring and maintenance.
Technical Specifications
| Parameter | Specification Details |
| Contact Configuration | 2 Change-over Contacts (DPDT) |
| Nominal Contact Current | 12 A (Standard Contact) |
| Control Supply Voltage | 24V DC |
| Actuating Voltage Type | DC |
| Connection Type | Plug-in Connection |
| LED Indication | None (Non-illuminated) |
| Socket Included | False (Relay Unit Only) |
| Base Style | Square Base |
Engineering Advantages
-
High Power-to-Size Ratio: The 700-HF32Z24 handles 12A nominal current, exceeding the capacity of standard 5A or 8A miniature relays. This allows engineers to switch larger inductive loads and motors directly without moving to bulkier industrial contactors.
-
Simplified Plug-in Integration: The plug-in pin configuration enables tool-less relay replacement. This feature minimizes downtime during maintenance cycles, as technicians can swap the relay without disturbing the fixed wiring on the terminal block or socket.
-
Low Power DC Coil: The 24V DC coil draws minimal current from the PLC or controller's output card. This efficiency reduces the thermal load within the enclosure and prevents overloading of sensitive digital output modules.
-
Rugged DPDT Logic: The dual-pole design allows for simultaneous control of two independent circuits. For instance, you can use one pole for high-voltage load switching and the secondary pole for feedback signals to the HMI or PLC, ensuring synchronized logic execution.
FAQs
-
Does this model include a built-in LED for status monitoring? No, the 700-HF32Z24 is the standard non-illuminated version. If your application requires visual status confirmation, you must verify the socket features or use a model with the integrated LED suffix.
-
What socket is compatible with the 700-HF32Z24? This relay fits the Allen-Bradley 700-HN116 or 700-HN139 sockets. Always ensure the socket matches the square-base pin configuration and is rated for at least 12A to avoid terminal overheating.
-
Is this a 100% original Allen-Bradley part? Yes. We only sell Brand New, original Allen-Bradley hardware. Each relay arrives in its individual factory packaging to ensure the silver alloy contacts remain free of oxidation and debris prior to installation.
-
Can I use this relay for switching AC loads? While the control coil requires 24V DC, the 12A contacts can switch both AC and DC loads within the manufacturer's rated voltage limits. Check the specific contact rating table for AC-15 or DC-13 duty cycles to ensure the relay meets your application's load requirements.
