Product Overview

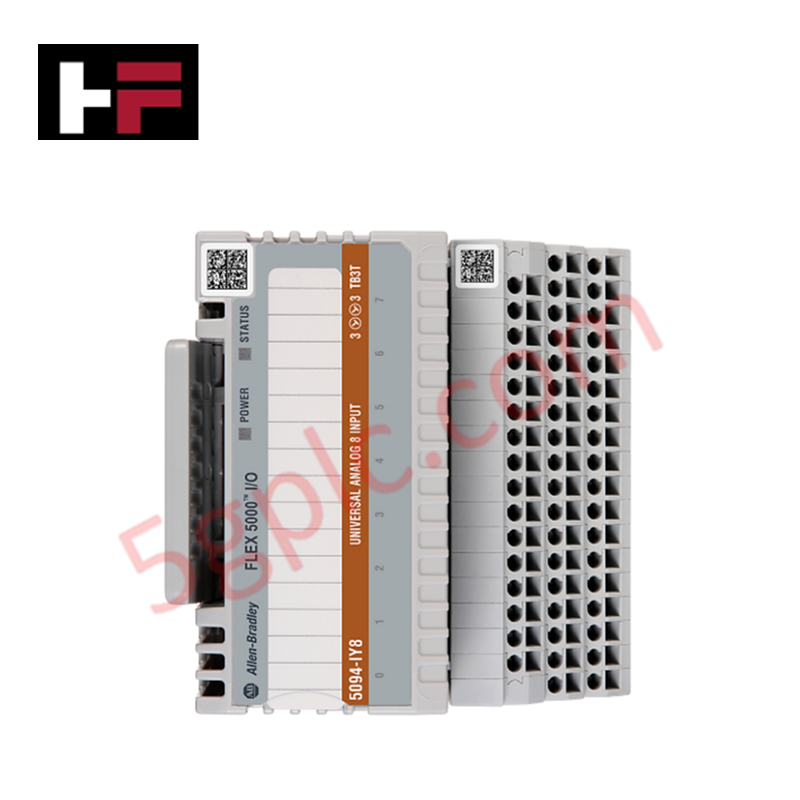

The Allen Bradley 5094-IY8 functions as a high-density, universal analog input solution within the FLEX 5000 I/O platform. This module converts diverse field signals—including voltage, current, RTD, and thermocouple data—into precise digital values for the Logix controller. It streamlines complex systems by consolidating multiple input types into a single 8-channel hardware footprint, reducing cabinet space requirements and simplifying spare parts inventory. We supply this unit as 100% Brand New original factory stock to ensure maximum system uptime.
Technical Specifications
| Feature | Specification Details |
| Manufacturer | Allen Bradley / Rockwell Automation |
| Series | FLEX 5000 |
| Input Channels | 8 Differential or Single-Ended |
| Module Type | Universal Analog (Voltage, Current, RTD, Thermocouple) |
| A/D Conversion | Sigma-Delta (Two 24-bit multiplexed ADC) |
| Voltage Ranges | ±10V, 0...10V, 0...5V |
| Current Ranges | 0...20 mA, 4...20 mA |
| RTD Support | Platinum (100, 200, 500, 1000 Ω), Nickel, Copper |
| Thermocouple Types | B, C, D, E, J, K, L, N, R, S, T |
| Input Impedance | >1 MΩ (Voltage/RTD/TC), 90 Ω typical (Current) |
| Common Mode Voltage | ±10V (Channel to Channel in Differential mode) |
Engineering Advantages
-
Universal Signal Processing: The 5094-IY8 eliminates the need for dedicated specialized modules. By supporting everything from low-level millivolt thermocouple signals to high-level 10V process signals on the same card, it offers unparalleled flexibility in mixed-signal environments.
-
Superior Signal Integrity: Two integrated 24-bit Sigma-Delta ADCs provide high-resolution conversion and excellent noise rejection. This technology ensures stable data even in electrically "noisy" industrial settings where electromagnetic interference typically degrades analog accuracy.
-
Reduced Engineering Complexity: The module supports both differential and single-ended wiring configurations. This versatility allows engineers to adapt the hardware to existing field wiring without requiring interposing signal conditioners.
-
High-Speed Data Performance: As part of the FLEX 5000 family, the 5094-IY8 communicates over high-speed EtherNet/IP, significantly reducing I/O scan times compared to legacy FLEX I/O systems.
FAQs
-
Can the 5094-IY8 mix different input types on the same module?
Yes. You can configure each of the 8 channels independently via the Studio 5000 software. For example, you can monitor a 4-20mA pressure sensor on Channel 0 while reading a Type K thermocouple on Channel 1.
-
Does this module require a specific terminal base?
Yes, the 5094-IY8 requires a FLEX 5000 mounting base (such as the 5094-TB3 or 5094-TB3S). Always ensure the terminal block matches the high-density requirements of the 8-channel universal module.
-
How does the module handle cold junction compensation (CJC) for thermocouples?
The module performs internal cold junction compensation when using the appropriate terminal base, ensuring accurate temperature readings without external compensation hardware.
-
Is this a direct replacement for 1794 series analog modules?
The 5094-IY8 belongs to the newer FLEX 5000 series. While it provides similar functionality to 1794-IF8IH modules, it requires the FLEX 5000 architecture and a compatible Logix controller. It offers significantly higher resolution and faster backplane speeds.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
