Product Details
Overview

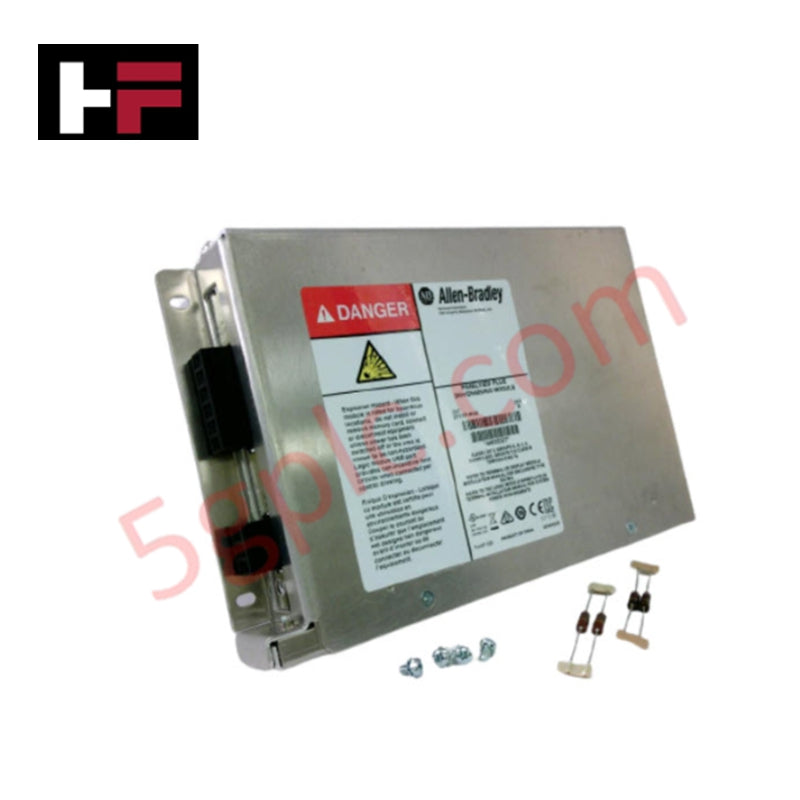

The Allen-Bradley 2711P-RN15S is a ControlNet communication adapter designed for PanelView Plus and PanelView Plus CE operator terminals. It enables high-speed, deterministic data exchange between visualization terminals and ControlLogix controllers over a ControlNet network. Featuring dual BNC ports for network redundancy and a dedicated Network Access Port (NAP) for configuration, this module provides robust connectivity for industrial HMI systems.
Technical Specifications
-
Manufacturer: Allen-Bradley (Rockwell Automation)
-
Model / Catalog Number: 2711P-RN15S
-
Product Line: PanelView Plus / PanelView Plus CE
-
Product Type: ControlNet Communication Module
-
Communication Interface: ControlNet
-
Number of ControlNet Ports: 2 BNC connectors
-
Network Access Port (NAP): 1 port (configuration and diagnostics)
-
Supported Messages: Scheduled and unscheduled data transfers
-
ControlNet Media: 1786-RG6/A (standard PVC) and 1786-RG6F/B (high-flex cable)
-
Network Redundancy: Fully supported
-
Supported Node Range: 1–99 nodes
-
NAP Cable: 1786-CP
-
Hot-Swap Capability: Not supported (no removal or insertion under power)
-
Retaining Screw: M3 metric, 5 mm length
-
Nominal Supply Voltage: 24V DC (supplied by terminal)
-
Weight: 0.75 lbs (0.34 kg)
-
Operating Temperature: 0°C to +55°C (32°F to +131°F)
-
Storage Temperature: –40°C to +85°C (–40°F to +185°F)
-
Relative Humidity: 5–95% non-condensing
Key Features
-
Provides reliable ControlNet connectivity for PanelView Plus terminals
-
Dual redundant BNC ports for fault-tolerant network operation
-
Supports both scheduled and unscheduled message communication
-
Dedicated Network Access Port for network configuration and diagnostics
-
Compact and easy-to-mount design for industrial HMI systems
Applications
-
Process and discrete manufacturing visualization
-
Real-time HMI data exchange with ControlLogix and CompactLogix controllers
-
Redundant network architectures in critical process automation
-
Industrial systems requiring deterministic and time-synchronized communication
FAQs
Q1: Which terminals are compatible with the 2711P-RN15S module?
It is compatible with PanelView Plus 700, 1000, 1250, and 1500 terminals.
Q2: Does this module support redundant ControlNet connections?
Yes, it supports full ControlNet network redundancy for enhanced reliability.
Q3: Can the 2711P-RN15S be replaced under power?
No. This module cannot be inserted or removed while powered.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
