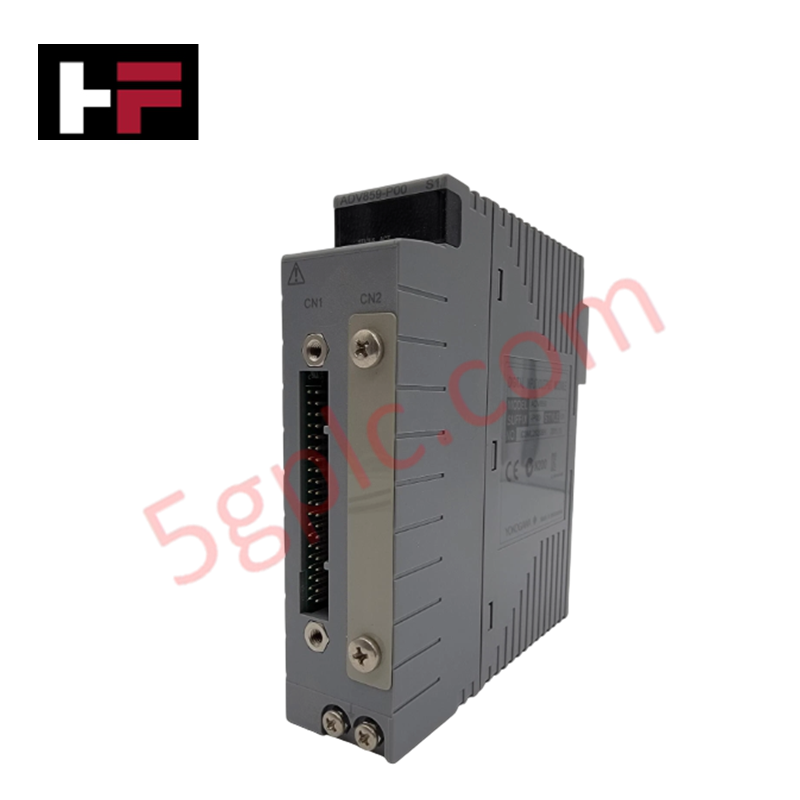

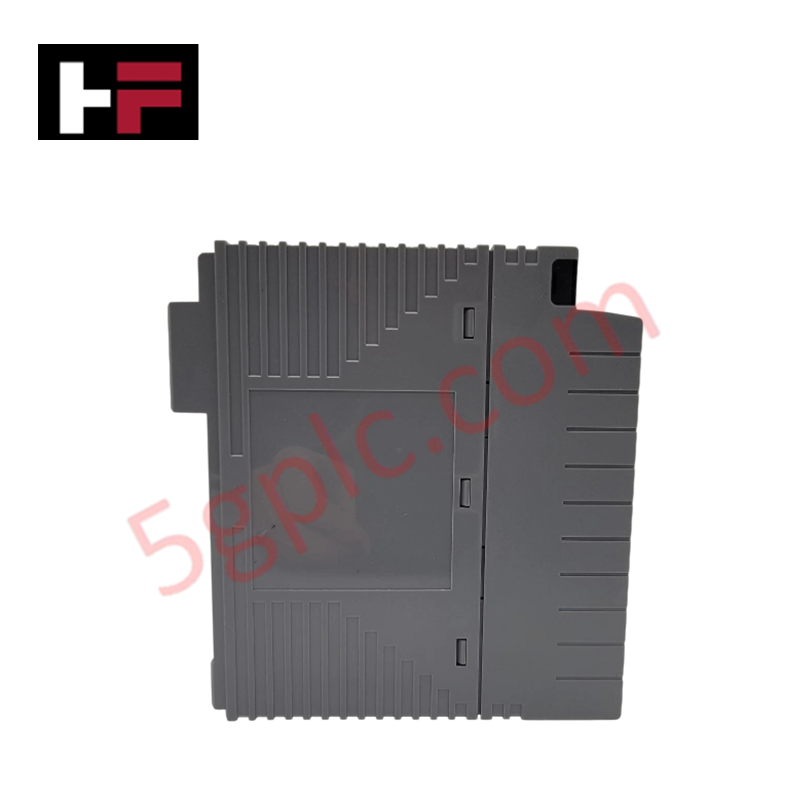

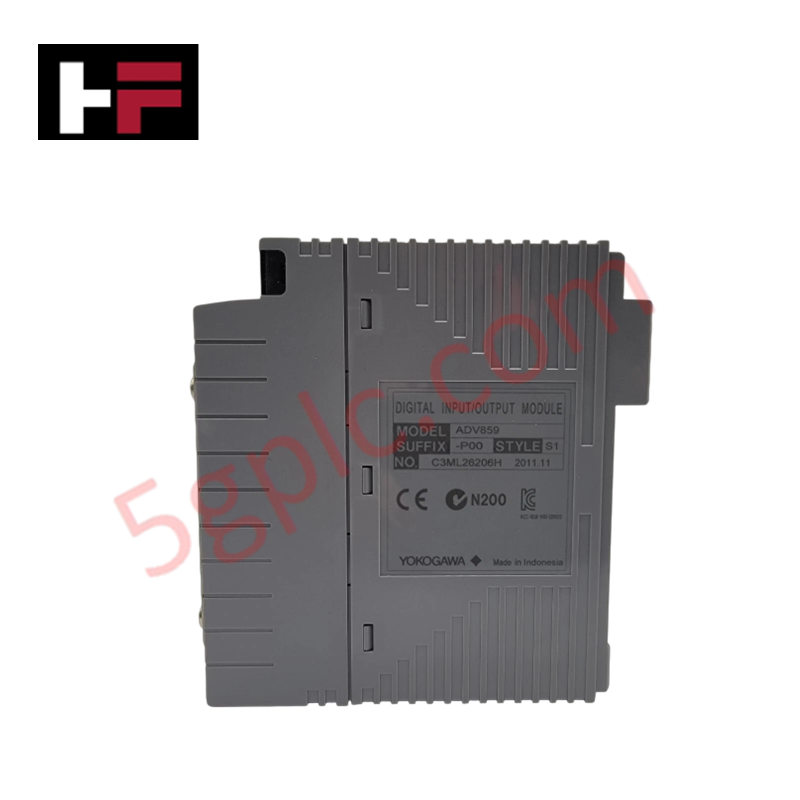

ADV859-P00 | Yokogawa CENTUM VP Hybrid Digital I/O Module

Product Overview

The Yokogawa ADV859-P00 serves as a high-density, hybrid digital interface for the CENTUM VP and ST control architectures. This versatile module integrates 16 isolated digital inputs and 16 isolated transistor outputs within a single FIO slot, providing a streamlined solution for distributed control nodes and skid-mounted equipment. We guarantee this unit is 100% Brand New and Original, delivering factory-certified precision for your critical automation infrastructure.

Part Number Breakdown

The ADV859 series follows a modular configuration to meet specific system requirements:

• ADV859: Hybrid Digital I/O Base Model (16-Input / 16-Output).

• -P: Supports advanced output logic, including one-shot pulse and time-proportional control.

• 0: Standard industrial version without specialized explosion protection.

• 0: Basic hardware configuration for standard mounting.

Technical Specifications

The ADV859-P00 provides robust electrical parameters for reliable signal processing:

Engineering Advantages

• High-Density Space Optimization: The 16/16 hybrid design consolidates input feedback and output commands into a single module. This eliminates the need for separate I/O cards, drastically reducing cabinet footprint and hardware costs in crowded control rooms.

• Precision Actuator Control: The module executes one-shot pulse and time-proportional (PWM) control directly at the I/O level. This capability enables precise dosing and thermal management by driving solenoids or solid-state relays with high temporal accuracy.

• Total Signal Integrity: Individual channel-to-channel isolation prevents electrical noise, ground loops, or field-side surges from propagating through the system. This protection ensures that a localized fault on one device does not compromise the logic of the entire I/O nest.

• Flexible Field Compatibility: The input section accepts both potential-free (dry) contacts and voltage-generating signals. This flexibility allows engineers to interface with a wide variety of limit switches, proximity sensors, and auxiliary contacts without additional signal conditioning.

FAQs

• Can I drive inductive loads like large relays directly with this module?

  The ADV859-P00 handles inductive loads up to 100 mA per channel. For high-capacity solenoids or large power relays, we recommend installing external flyback diodes to suppress inductive kicks and extend the lifespan of the output transistors.

• Does this module support pushbutton edge counting?

  No. The ADV859-P00 is optimized for standard status acquisition and pulse-width modulation (PWM) outputs. If your application requires high-speed pushbutton counting, consider the ADV151-P series.

• Is this a "New Surplus" or "Refurbished" item?

  Neither. We provide only 100% Brand New, factory-original Yokogawa modules in their original sealed packaging. This ensures you receive the latest hardware revisions and full manufacturer reliability.

• What is the benefit of the current sink output format?

  The current sink (NPN) configuration provides a reliable switching method for 24V DC circuits, making it highly compatible with standard industrial PLC/DCS field wiring and common relay coils.
