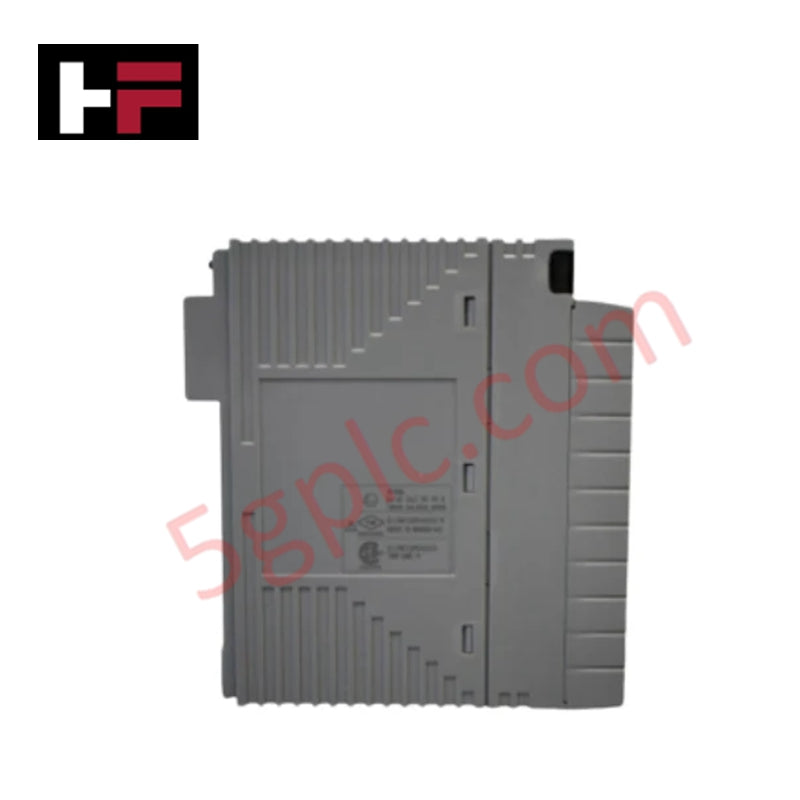

ADV551-P10 | Yokogawa | CENTUM VP 32-Channel Digital Output Module

Product Overview

The Yokogawa ADV551-P10 functions as a high-density discrete control interface for the CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). This 32-channel module executes switching commands from the safety or process logic to drive field actuators, including solenoid valves, interposing relays, and signaling lamps. By providing high-speed transistor switching and robust optical isolation, the ADV551-P10 ensures precise execution of batch sequences and emergency interlocks in complex industrial environments.

Condition: 100% Brand New and Original Factory Sealed.

Part Number Breakdown: ADV551-P10

Yokogawa utilizes a specific alphanumeric coding system to define the hardware capabilities of the ADV551 series:

• ADV551: Digital Output Module (32-channel, 24 V DC, Isolated).

• -P: Equipped with integrated Pulse Width Output / Time-Proportional Output functions.

• 1: Specifies a hardware revision for enhanced thermal dissipation.

• 0: Standard basic specification for universal subrack compatibility.

Technical Specifications

The ADV551-P10 provides high-resolution switching performance for critical industrial control loops.

• Number of Channels: 32, fully isolated

• Rated Output Voltage: 24 V DC

• Load Current: Up to 100 mA per channel

• External Load Voltage: 24 V DC $\pm$ 10%

• Response Time: $\le$ 3 ms (Status output); $\le$ 10 ms (Pulse output)

• Isolation Type: Optical isolation between system and field-side circuits

• Connection Method: Pressure-clamp terminal or KS signal cable

• Weight: 0.45 lbs (approx. 0.2 kg)

Engineering Advantages

• Time-Proportional Control Efficiency: The ADV551-P10 executes pulse-width modulation (PWM) directly at the hardware level. This offloads calculation-heavy timing tasks from the main controller CPU, ensuring perfectly timed dosing or heating cycles without logic scan-time jitter.

• Maximized Cabinet Density: Packing 32 isolated outputs into a single slot significantly reduces the required hardware footprint. Engineers can decrease the number of I/O nodes and subracks, lowering the total cost of installation and cooling in large-scale facilities.

• Advanced Transient Protection: The module incorporates internal suppression circuitry to handle the back-EMF common in inductive loads like solenoid valves. This protection prevents localized electrical spikes from propagating to the internal DCS bus, maintaining overall system stability.

• High-Speed Execution: A 3 ms response time for status outputs enables the DCS to react nearly instantaneously to process deviations. This speed proves vital for high-speed interlocking and safety-related sequence-of-events (SOE) recording.

• Simplified Maintenance Access: The module supports live-insertion and removal within redundant configurations. Maintenance teams can replace hardware without process interruption, utilizing the integrated status LEDs for immediate fault identification at the rack level.

FAQs

• Does the ADV551-P10 require an external power supply?

  Yes. You must provide a 24 V DC field-side power supply to drive the output loads. The module utilizes this external power to switch the 32 channels via its internal transistor array.

• Can the ADV551-P10 replace the standard ADV551-S model?

  The ADV551-P10 includes all functional capabilities of the "S" model while adding advanced pulse width functions. It serves as a direct upgrade; however, always verify your system's software revision supports the P-series features before commissioning.

• What precautions should I take for high-current loads?

  The module supports 100 mA per channel. If your actuator (such as a large motor starter or high-power contactor) exceeds this rating, you must use an interposing relay to prevent damaging the module’s output transistors.

• How does the "1" in the P10 suffix impact compatibility?

  The "1" indicates a specific hardware revision. While it maintains backward compatibility with most CENTUM VP subracks, it offers improved thermal efficiency over the original "0" revision, making it ideal for high-density cabinet layouts.
