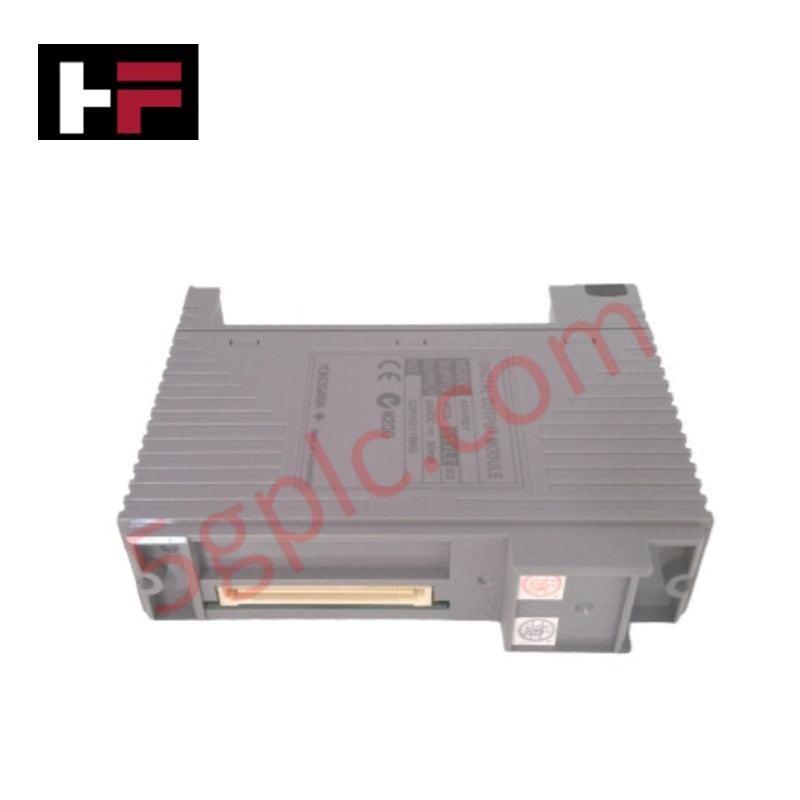

ADV551-P03 | Yokogawa | 32-Channel Digital Output Module CENTUM VP

Product Overview

The Yokogawa ADV551-P03 serves as a high-density discrete control interface for the CENTUM VP Distributed Control System (DCS). This 32-channel module executes switching commands to manage field actuators, including solenoid valves, interposing relays, and signaling lamps. Equipped with the "P" functional suffix, this module supports advanced pulse width and time-proportional output functions. The "03" designation indicates a specific hardware revision optimized for stable 24V DC switching and enhanced thermal performance in high-density subracks.

Condition: 100% Brand New and Original Factory Sealed.

Part Number Breakdown: ADV551-P03

Yokogawa utilizes a structured suffix system to define the functional and connection specifications:

• ADV551: Digital Output Module (32-channel, 24 V DC, Isolated).

• -P: Equipped with Pulse Width Output and Time-Proportional Output functions.

• 0: Standard type hardware specification.

• 3: Updated hardware revision for enhanced signal timing and component longevity.

Technical Specifications

The ADV551-P03 provides high-speed switching and robust electrical isolation for critical control loops.

• Number of Channels: 32, isolated

• Rated Output Voltage: 24 V DC

• Maximum Load Current: 100 mA per channel (Note: Total load must comply with subrack power limits)

• Response Time (Status): 3 ms or less

• Response Time (Pulse): 10 ms or less

• Isolation Type: Optical isolation between system and field

• External Connection: Pressure-clamp terminal or KS signal cable

• Current Consumption: 500 mA (at 5 V DC)

Engineering Advantages

• Hardware-Based Pulse Modulation: The ADV551-P03 executes time-proportional control cycles internally. This offloads timing-critical tasks from the main controller CPU, ensuring consistent pulse widths for dosing or heating applications regardless of the DCS logic scan time.

• Maximized Rack Density: Processing 32 outputs within a single slot maximizes I/O density. This allows engineers to utilize smaller control cabinets and fewer subracks, significantly reducing the total cost of installation and footprint in modular control rooms.

• Precision Timing Execution: The module revision "03" incorporates updated internal oscillators to maintain high accuracy for pulse width functions. This ensures that field actuators receive perfectly timed signals for processes requiring quasi-analog control.

• Ultra-Fast Signal Execution: A 3 ms response time for status outputs ensures nearly instantaneous command delivery. This performance is vital for high-speed interlocking and sequence-of-events (SOE) applications where millisecond precision prevents mechanical damage.

• Integrated Diagnostic Feedback: The module continuously monitors its internal health and provides status feedback to the CENTUM VP software. Maintenance teams can identify channel faults or power supply issues directly from the HMI, minimizing Mean Time to Repair (MTTR).

FAQs

• Does the ADV551-P03 require an external field power supply?

  Yes. You must provide a 24 V DC external supply to drive the output loads. The module switches this power across the 32 channels via its isolated transistor array.

• Can I use this module to replace an older ADV551-P00 model?

  Yes. The ADV551-P03 is functionally compatible with the P00 and P01 versions. It serves as a direct upgrade, offering the same 32-channel pulse output capabilities with improved hardware reliability.

• What precautions are necessary for inductive loads?

  The module handles typical inductive loads up to its rated current. For highly inductive actuators like large solenoid valves, we recommend installing external suppression diodes to protect the output transistors from back-EMF spikes.

• Is the ADV551-P03 compatible with redundant I/O?

  Yes. When used with a redundant-capable baseplate, you can install these modules in pairs. The system maintains continuous control even if one module requires replacement or experiences a fault.
