ADM52C | Yokogawa CENTUM CS 3000 Contact Output Module

Product Overview

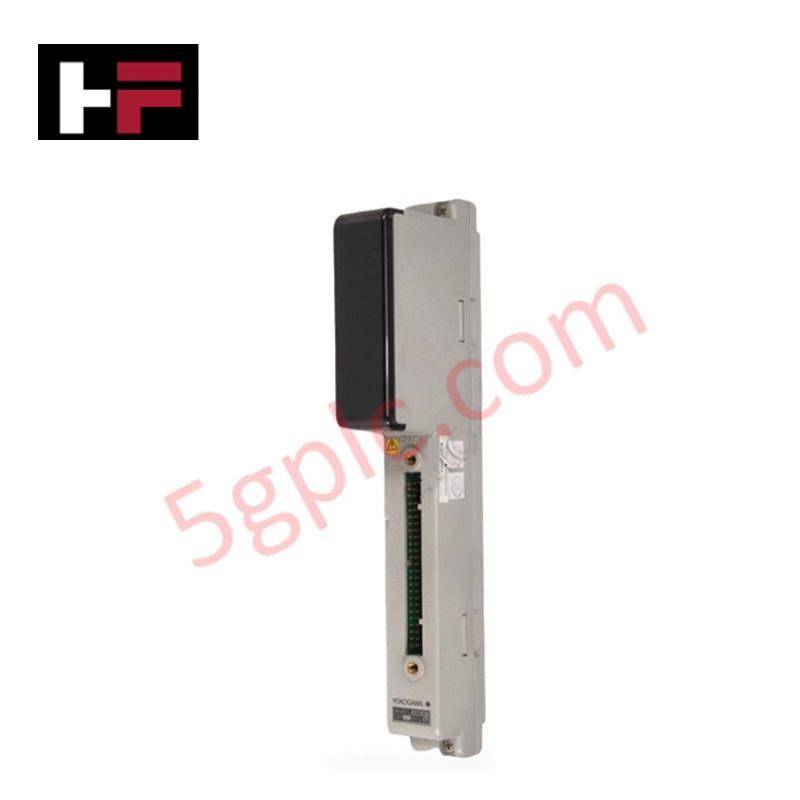

The Yokogawa ADM52C functions as a high-density contact output interface designed for the CENTUM CS 3000 Distributed Control System (DCS). This module manages 32 discrete output points, enabling the controller to execute switching commands for field devices such as solenoid valves, actuators, and motor starters. By utilizing a connector-type interface, the ADM52C simplifies high-volume wiring and ensures a secure electrical link between the DCS backplane and external terminal boards.

Technical Specifications

The ADM52C provides robust switching capabilities optimized for high-density I/O nests:

Engineering Advantages

• High-Density Output Concentration: The ADM52C consolidates 32 output channels into a single module slot. This design allows engineers to manage extensive discrete control loops while minimizing the total number of I/O nests required in the marshalling cabinet.

• Streamlined Connector Wiring: This module eliminates the need for 32 individual screw-terminal connections at the module front. Instead, a single high-speed connector links to a KS9 or KS10 cable, which routes signals directly to a terminal board (such as the TE32). This approach slashes installation time and prevents field-wiring errors.

• Segmented Signal Isolation: The internal architecture groups the 32 outputs into two banks of 16, with a common minus side for each bank. This isolation strategy protects the main system bus from field-side electrical noise and prevents a fault in one output bank from affecting the entire module.

• Low Thermal Signature: Optimized circuitry minimizes internal power consumption and heat generation. This thermal efficiency ensures stable performance even when the I/O nest is fully populated with 32-point modules in non-ventilated enclosures.

FAQs

• Is the Yokogawa ADM52C supplied as a new or refurbished unit?

  We offer the ADM52C exclusively as 100% Brand New and Original equipment. Each module arrives in the original Yokogawa factory box, ensuring you receive the full reliability of a zero-hour industrial component.

• What is the difference between ADM52C and ADM52?

  The "C" suffix in ADM52C denotes the Connector Type interface. While the standard ADM52 might utilize terminal screws, the ADM52C uses a multi-pin connector designed for use with Yokogawa KS-series cables and terminal boards, making it ideal for rapid system integration.

• Can the ADM52C drive AC loads directly?

  The ADM52C typically manages DC switching signals. To drive high-voltage AC loads (such as 220V AC motors), we recommend using the ADM52C to trigger interposing relays. This practice protects the module from high-voltage transients and inductive kickback.

• What terminal board is compatible with this module?

  The ADM52C typically pairs with the TE32 Terminal Board via a KS9 or KS10 connector cable. Always verify your system’s specific wiring manual to ensure the cable pinout matches your field termination requirements.
