Product Details

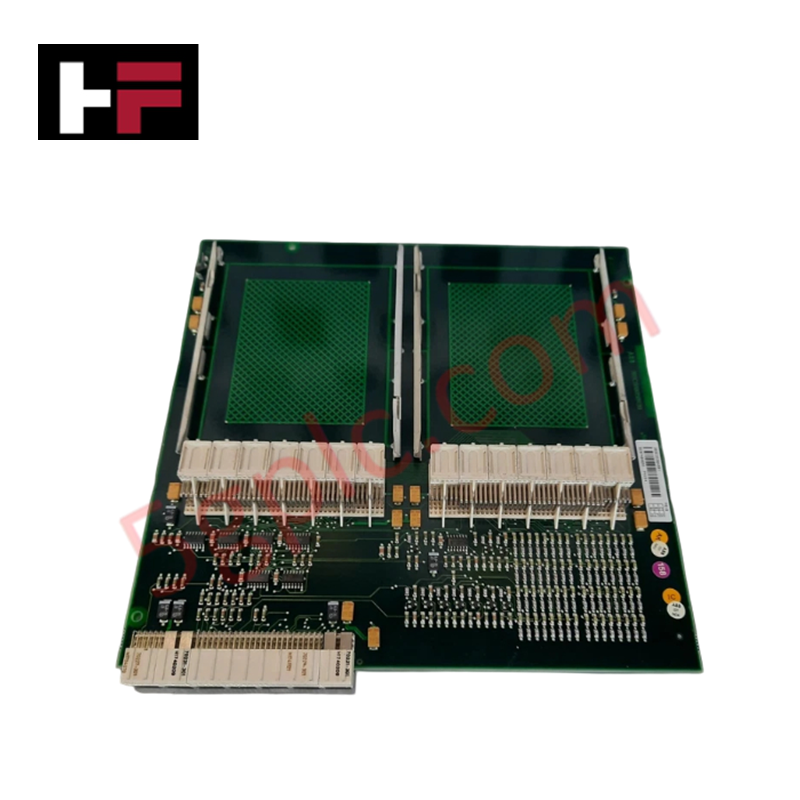

The ABB PM154 3BSE003645R1, also cataloged as the PM154 Processor Card, operates as a dedicated hardware component for dual-redundant execution and fieldbus control tasking within AC800M and Advant Controller platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PM154 |
| Part Number | 3BSE003645R1 |
| Brand | ABB |
| Origin | Sweden |
| Weight | Approx. 1.10 kg |
| Dimensions | Standard sub-rack card slot size (approx. 240 mm x 180 mm x 35 mm) |
| Operating Temp | -25 deg C to +70 deg C |
| Power Consumption | Max 15 W (internal logic load) |
| Communication Protocols | Redundant Ethernet, RS-232, RS-485, PROFIBUS DP interface via field bus |
| Programming Tool | Control Builder M (CBM) |
| System Redundancy | Hardware-supported seamless primary/secondary failover execution |
| Expansion Capacity | Direct bus connectivity to S800 I/O module series |
Firmware Flash Compatibility & Deterministic Backplane Communications
Designed for high-availability control racks, the ABB PM154 processor module synchronizes operational memory structures across redundant Ethernet bus architecture. Internal logic processing coordinates firmware flash compatibility to ensure seamless primary-to-secondary CPU switchover within deterministic task cycles. The unit manages backplane bus communication velocity and I/O density scaling across downstream PROFIBUS DP links and connected S800 series I/O racks, keeping cycle jitter within strict sub-millisecond limits during full control loop execution.
Frequently Asked Questions
Q: How is seamless CPU switchover achieved between redundant PM154 modules?
A: Redundant control configurations utilize dedicated high-speed synchronization links between primary and backup units. When the active CPU detects a system fault or power interruption, state data transfer allows the secondary module to take over task execution without dropping I/O loop outputs.
Q: Can firmware updates be loaded into the PM154 module while online?
A: Online firmware flashing depends on the software version compatibility in Control Builder M (CBM). Dual-processor architectures allow updating the backup unit first before triggering a controlled redundant switchover to update the remaining module.
Q: What are the backplane power supply requirements for a dual PM154 rack setup?
A: Each PM154 processor card draws power directly from the 24 VDC backplane power distribution rail. The system power supply must be sized to accommodate combined logic draws and startup inrush loads without dropping below the operational voltage threshold.
Field Installation Guidelines
- Verify that the sub-rack backplane is completely de-energized prior to inserting or seating the PM154 processor module into its designated chassis slot.
- Ensure ESD grounding wrist straps are properly connected to the panel PE terminal during installation to protect CMOS memory components from electrostatic damage.
- Torque all front-panel retaining screws to 0.5 Nm to maintain chassis ground continuity and prevent vibration-induced mechanical displacement.
- Route serial communication (RS-232/485) and Ethernet cables separately from high-voltage AC lines, adhering to standard industrial noise rejection practices.
- Connect PROFIBUS DP shield terminations directly to the grounded cable entry bracket to minimize high-frequency electromagnetic interference on fieldbus lines.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
