Product Details

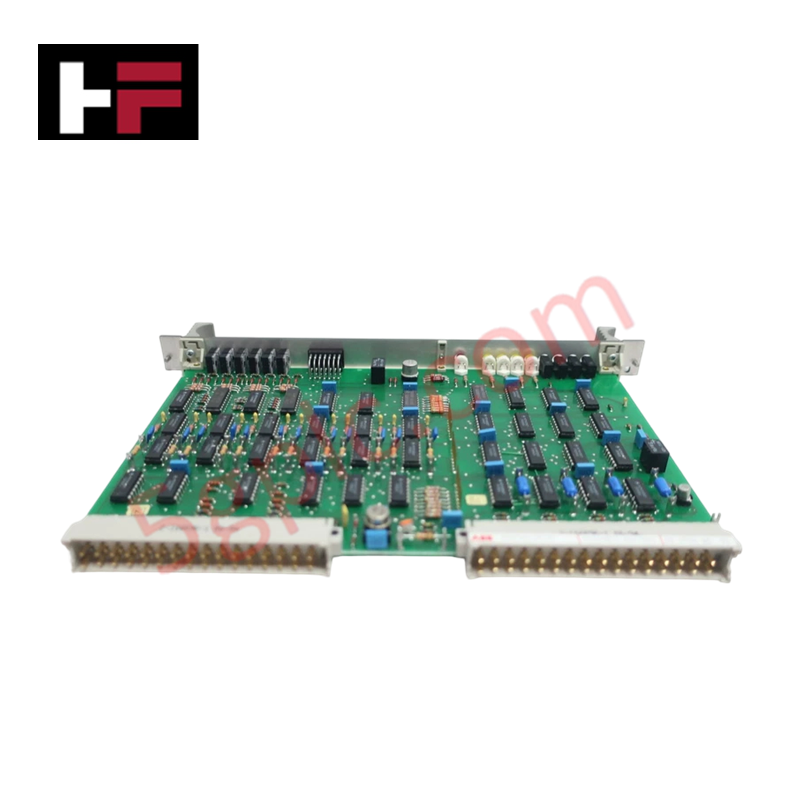

The ABB GD 9924 BE V2 HIEE401091R2, also cataloged as the GD 9924 BE V2 Industrial Control Board, operates as a dedicated hardware component for high-speed signal processing, gate driver control, and closed-loop regulation within ABB industrial control systems. The board manages local feedback signals from field sensors and executes high-speed switching logic for power conversion units. It provides direct physical signal conditioning, backplane communication decoding, and galvanically isolated control outputs to drive field actuators and power electronics subracks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | GD 9924 BE V2 HIEE401091R2 |
| Brand | ABB |
| Origin | Switzerland |
| Weight | 0.65 kg (1.43 lbs) net |
| Dimensions | 30 mm x 234 mm x 160 mm (1.18 in x 9.21 in x 6.30 in) |
| Operating Temp | 0 to +60 deg C (Storage: -40 to +70 deg C) |
| Power Consumption | Supplied via internal rack backplane power bus |
| Board Type | Industrial Control / Gate Driver Interface Board |
| Signal Processing | High-speed digital and analog signal conditioning |
| Protection Rating | IP00 (installed inside IP20 control rack/subrack) |
Backplane Bus Communication Velocity and Firmware Flash Compatibility
The GD 9924 BE V2 control board maintains high backplane bus communication velocity across system subracks, ensuring real-time transfer of control parameters and diagnostic status frames. Integrated firmware flash compatibility enables reliable execution of stored control algorithms and supports structured system updates across reboot cycles. High-velocity processing minimizes loop execution delays between field feedback acquisition and gate driver output response.
Frequently Asked Questions
Q: Is the GD 9924 BE V2 control board hot-swappable under live rack power?
A: No. Main power to the subrack backplane must be completely disconnected before removing or seating the board to prevent edge-connector damage and logic bus corruption.
Q: How does the board protect internal logic from high-voltage transients on output channels?
A: The board incorporates galvanic isolation barriers, optocouplers, and signal suppression circuits that isolate low-voltage processing logic from field switching spikes.
Q: What mounting form factor is required for physical installation?
A: The board is designed for slot mounting inside standard ABB industrial subracks equipped with card guide rails and multi-pin backplane mating connectors.
Field Installation Guidelines
- Isolate all main power supplies feeding the control subrack and de-energize external field loops prior to board installation.
- Carefully align the board edges with the top and bottom card guides of the target subrack slot.
- Slide the board inward with steady pressure until the rear multi-pin connector seats completely into the backplane socket.
- Fasten the top and bottom front panel retaining screws to 0.4 Nm to secure the assembly against vibration and establish continuous chassis grounding.
- Use shielded cables for all external signal connections, bonding shields to the panel functional earth bar near the cabinet cable entry.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
