Product Details

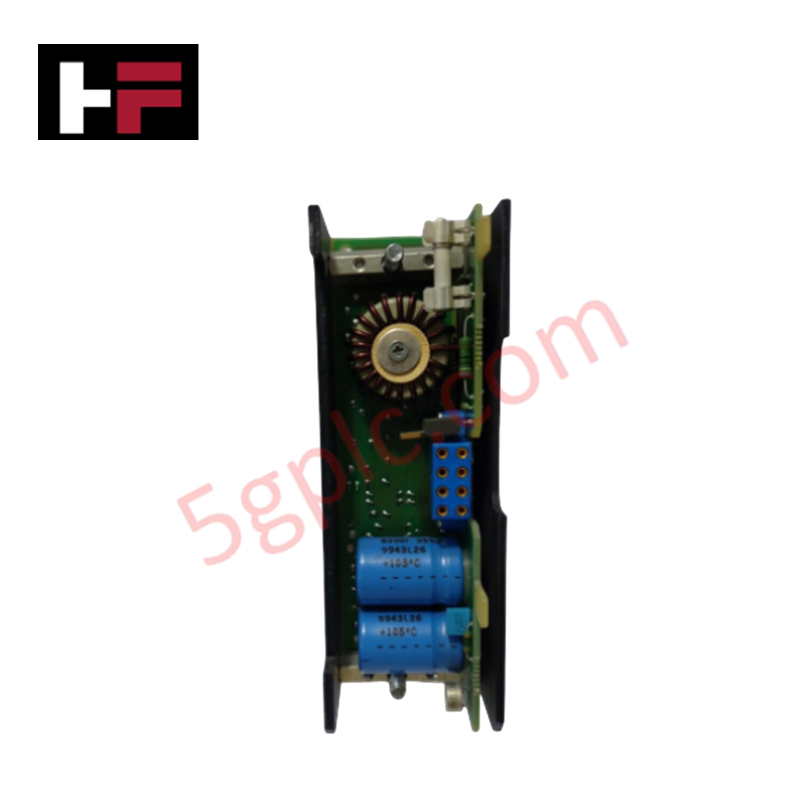

Configured for internal DC voltage regulation and bus power conversion in ABB Advant Master subracks, the ABB DSSR 170 48990001-PCC (DSSR 170 Power Supply Modules) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSSR 170 |
| Order Code | 48990001-PCC |
| Brand | ABB |
| Origin | Sweden |
| Product Type | Power Supply Modules |
| Input Voltage | 24 VDC |
| Output Voltage | 5 VDC regulated |
| Output Current | 10 A |
| Spare Fuse | 5 A (Part Number 56722011-21) |
| Dimensions | 234 mm x 54 mm x 108 mm |
| Weight | 0.6 kg |
| Operating Temp | 0 to 55 deg C |
| Power Consumption | Internal conversion loss profile |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Backplane Bus Communication & I/O Density Scaling
The ABB DSSR 170 power supply module steps down 24 VDC input power to deliver a stabilized 5 VDC, 10 A logic supply directly across the backplane bus. Maintaining regulated power rails prevents voltage drop issues during high-density I/O card population. Integrated backplane interfaces ensure firmware flash compatibility and status reporting across host controller diagnostics.
Frequently Asked Questions
Q: What primary voltage conversion does the DSSR 170 unit perform?
A: The DSSR 170 accepts a 24 VDC input supply and converts it to a regulated 5 VDC output at up to 10 A to energize backplane logic components.
Q: Can the DSSR 170 power supply module be extracted while primary DC power is applied?
A: Main 24 VDC input power must be switched off prior to inserting or removing the unit to prevent arc discharge across backplane connectors and logic corruption.
Field Installation Guidelines
- Isolate primary 24 VDC power before inserting the DSSR 170 power supply module into the chassis rack.
- Align module guides with the subrack rails and slide in until the rear power plug engages completely with the backplane.
- Fasten faceplate locking screws to ensure solid chassis grounding and structural stability under operational vibration.
- Verify that the internal 5 A protection fuse (56722011-21) is seated correctly before energizing the module.
- Ensure adequate convection air flow above and below the module assembly inside the enclosure.
