Product Details

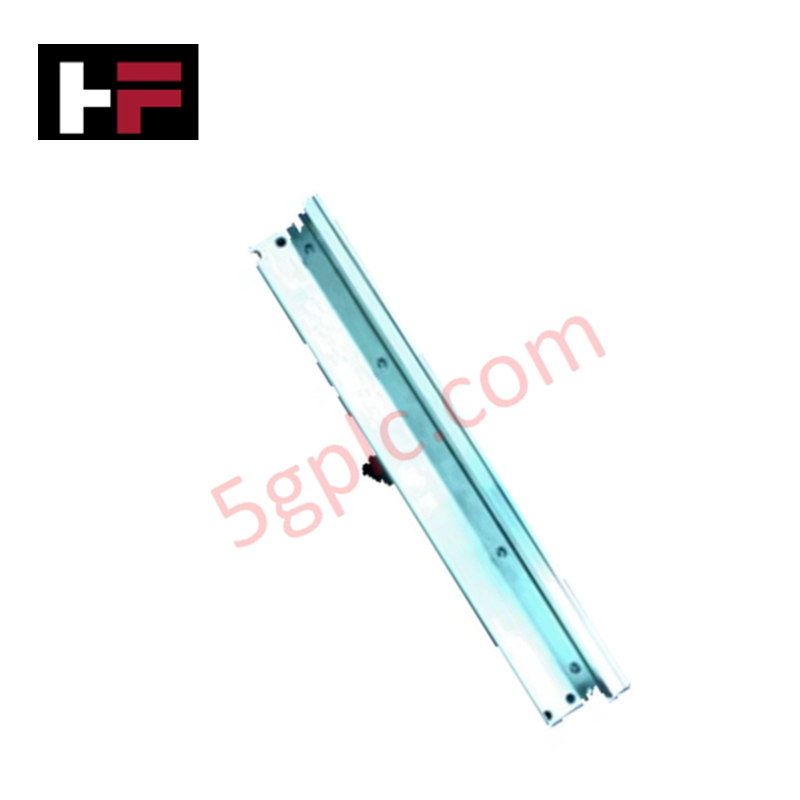

The ABB DSRA 110 21660559-H, also cataloged as the DSRA 110 Terminal Carrier Kit, operates as a dedicated hardware component for mechanical mounting bar structural support and hardware positioning within ABB control cabinet enclosures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSRA 110 |
| Part Number | 21660559-H |
| Brand | ABB |
| Product Type | Terminal Carrier Kits |
| Component Type | Mounting Bar for Connection Units and Modems |
| Origin | Sweden |
| Weight | 1.225 kg |
| Dimensions | 19" x 3S |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | Passive structural assembly (0 W) |
| Customs Tariff Number | 85389091 |
| WEEE Compliance | Product Not in WEEE Scope |
Subrack Structural Frame Alignment and High I/O Density Scaling
Engineered for 19-inch subrack integration, the carrier bar accepts connection units and modem modules while optimizing physical layout efficiency. Structural metal construction ensures chassis ground continuity across mounted field termination interfaces, supporting high I/O density scaling inside control cabinets. Solid metallic mechanical fastening prevents physical displacement and vibration decoupling, protecting backplane bus interface cables from stress or strain.
Frequently Asked Questions
Q: Does the DSRA 110 terminal carrier kit draw electrical power from the backplane?
A: No, the DSRA 110 is a passive mechanical mounting bar assembly with zero electrical power consumption.
Q: Can individual mounting bars be replaced without replacing the entire carrier kit assembly?
A: Yes, the structural mounting bar is available as an individual component under part number 21660566-22.
Q: How is chassis earth grounding achieved across mounted terminal modules?
A: Metallic contact surfaces on the carrier kit bond mechanically to the main enclosure frame when retaining fasteners are tightened, establishing earth grounding continuity.
Field Installation Guidelines
- Verify subrack cabinet dimensions match the 19" x 3S mounting specification before positioning the carrier kit.
- Align the mounting bar side flanges with the cabinet rack guide holes and insert M6 fixing bolts.
- Torque all mounting screws to standard engineering specifications to secure structural rigidity and chassis ground contact.
- Mount connection units or modems onto the carrier bar, ensuring locking latches are fully engaged.
- Maintain a minimum physical separation distance of 200 mm between low-voltage modem/signal wiring and AC power distribution cables.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
