Product Details

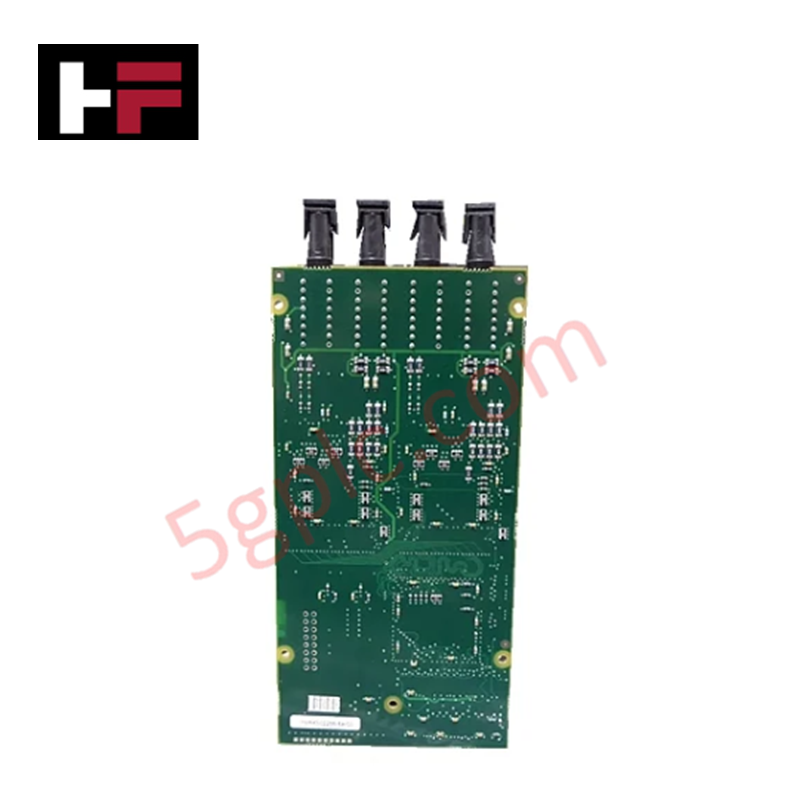

The ABB 1MRK002305-AAr01, also cataloged as the 1MRK002305-AA Analog Output Module, operates as a dedicated hardware component for multi-channel analog current signal generation within ABB System 800xA platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1MRK002305-AAr01 |
| Brand | ABB |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | 24 VDC Nominal |
| Storage Temp | -40 to +80 deg C |
| Protection Rating | IP20 |
| Humidity | 0% to 95% RH, non-condensing |
| Output Channels | 16 channels |
| Output Signal Type | Current (0-20 mA, 4-20 mA) |
| Output Resolution | 16-bit |
| Accuracy | +/-0.05% of full scale |
| Output Impedance | < 1 ohm |
| Sampling Rate | Up to 100 samples/second per channel |
| Signal Isolation | Isolated outputs |
Backplane Bus Communication Velocity & I/O Density Scaling
The module delivers 16-channel I/O density scaling inside a single subrack footprint to drive current loops for variable speed drives, control valves, and process positioners. Utilizing a 16-bit digital-to-analog converter, each output channel updates at up to 100 samples/second while maintaining an accuracy of +/-0.05% of full scale across 0-20 mA and 4-20 mA ranges. High backplane bus communication velocity allows simultaneous field updating without internal frame buffering delays. Firmware flash compatibility across system revisions guarantees deterministic execution and channel-to-channel signal isolation under IP20 operational environments.
Frequently Asked Questions
Q: What current output ranges are selectable on the 1MRK002305-AAr01 channels?
A: Each of the 16 isolated output channels supports software-configurable current ranges of 0-20 mA and 4-20 mA with 16-bit signal resolution.
Q: What is the maximum update speed per output channel on this module?
A: The internal processing engine executes signal conversions at a rate of up to 100 samples/second per channel.
Field Installation Guidelines
- Verify that the external 24 VDC power supply feed is de-energized prior to inserting or removing the card from the chassis slot.
- Use twisted-pair shielded instrumentation cables for all 4-20 mA signal runs to minimize inductive noise pickup.
- Connect cable shield drain wires to a dedicated cabinet grounding bar at one end only to prevent ground loop currents.
- Ensure cabinet enclosure ventilation maintains ambient operating temperatures between -20 and +60 deg C to preserve +/-0.05% full-scale accuracy.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
