51204172-175 | Honeywell | MC-TAOY22 Experion PKS Analog Output Redundancy FTA

Product Overview

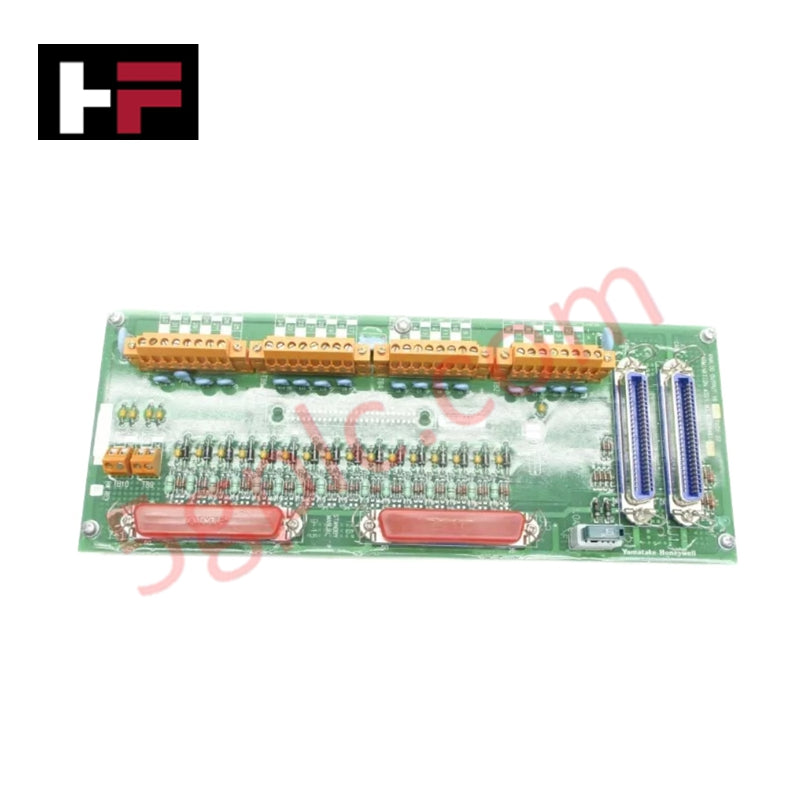

The Honeywell MC-TAOY22 (51204172-175) serves as a high-precision, 16-channel Analog Output Field Termination Assembly (FTA) specifically engineered for the Experion PKS and TDC 3000 environments. This 100% Brand New and original module manages critical control signals for final control elements like valves and actuators. By incorporating advanced readback functionality and redundancy support, this FTA ensures continuous process uptime and superior loop accuracy in mission-critical industrial applications.

Technical Specifications

Engineering Advantages

• Precision Loop Control: The hardware delivers an industry-leading accuracy of ±0.05% FS. This minimizes variance in valve positioning and motor speed control, directly improving chemical yield and energy efficiency in complex refining processes.

• Instantaneous Redundancy Switching: The module supports full hardware redundancy with negligible fault tolerance time. In the event of a primary processor failure, the secondary circuit takes over the 16-channel load immediately, preventing process surges or emergency shutdowns.

• Advanced Status Monitoring: An integrated readback function constantly detects the actual output status via internal feedback loops. This allows the DCS to verify that the field device actually received the commanded signal, closing the loop on hardware diagnostics.

• High-Impedance Load Driving: With a maximum load capacity of ≤800Ω at 24VDC, this FTA drives signals over long cable runs without voltage drops. This solves the industrial pain point of controlling field devices located in remote sections of a plant far from the marshalling cabinet.

• Extreme Environmental Resilience: The wide operating range of –40°C to +70°C eliminates the need for cabinet heaters or cooling fans in most geographic locations. The ruggedized PCB substrate resists thermal fatigue, ensuring long-term stability in outdoor instrument houses.

FAQs

• How does the redundancy switching function on the MC-TAOY22?

  The module interfaces with redundant I/O processors. It monitors the heartbeat of the active controller and switches the output bus to the standby module within milliseconds if it detects a hardware fault, ensuring "bumpless" transfer for all 16 channels.

• Can I mix 4-20mA and 0-10V signals on the same FTA?

  The MC-TAOY22 supports both standards. However, you must configure each channel pair correctly within the Honeywell Experion software environment and ensure the field wiring matches the voltage or current mode selected for that specific output.

• Is this unit a direct replacement for older AO FTA models?

  The 51204172-175 is the enhanced version of the MC-TAOY22 series. It provides higher accuracy and better thermal stability than legacy 5130-series boards. Always verify your current I/O base compatibility before performing a hot-swap.

• Does the "Brand New" condition include factory seals?

  Yes. We supply every MC-TAOY22 51204172-175 as 100% Brand New original stock. Each unit arrives in its original factory packaging with intact serial numbers and quality assurance documentation from Honeywell.
