Product Details

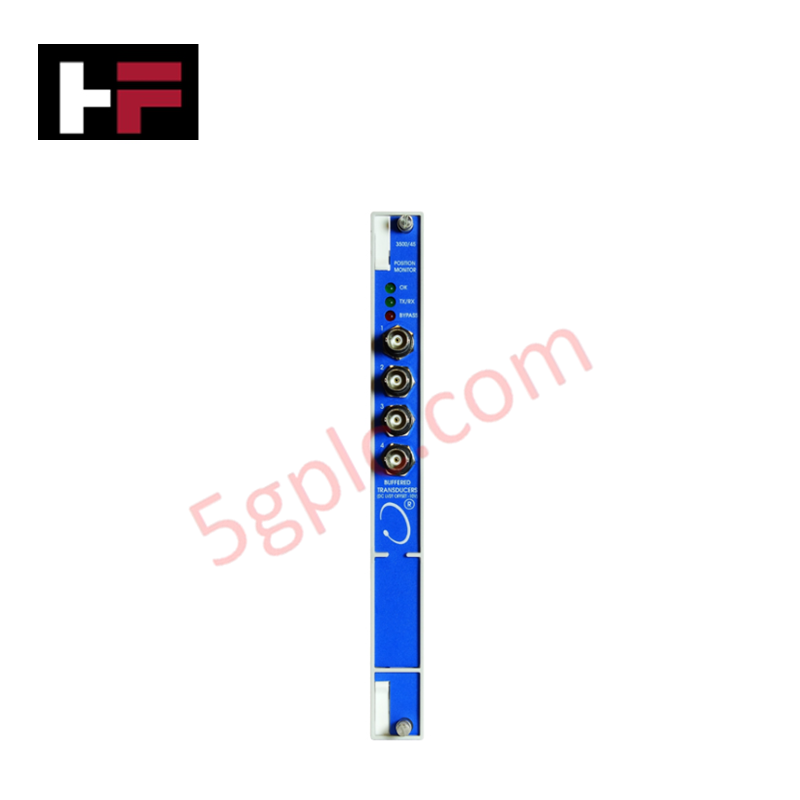

The Bently Nevada 3500/45-01-00 is a four-channel position monitor designed for the 3500 Series Machinery Protection System. It continuously measures parameters such as differential expansion, thrust position, valve position, and general DC linear variable differential transformer (LVDT) inputs, comparing them against user-programmable alarm setpoints to protect critical rotating machinery.
Ordering Option Breakdown
The complete part number specifies the associated I/O module type and regulatory approval status. Option code 01 designates a Position I/O Module with internal terminations supporting proximitor sensors, rotary positional transducers (RPT), and DC LVDTs. Option code 00 indicates that no specific country or agency approvals are required for this configuration.
Environmental and Physical Specifications
The monitor operates reliably in industrial environments spanning temperatures from -30 deg C to +65 deg C (-22 deg F to +150 deg F) with up to 95% non-condensing humidity. It requires one full-height front slot in the 3500 rack, measuring approximately 24.13 cm x 2.44 cm x 24.18 cm with a net weight of 0.91 kg and a shipping weight of 2 kg.
| Parameter | Specification |
|---|---|
| Model | 3500/45-01-00 |
| Brand | Bently Nevada |
| Product Type | Position Monitors |
| I/O Module Option | Position I/O Module with internal terminations (01) |
| Agency Approval Option | None / Not required (00) |
| Operating Temperature | -30 deg C to +65 deg C (-22 deg F to +150 deg F) |
| Storage Temperature | -40 deg C to +85 deg C (-40 deg F to +185 deg F) |
| Operating Humidity | Up to 95% non-condensing |
| Rack Space Requirement | 1 full-height front slot |
| Dimensions (H x W x D) | 24.13 cm x 2.44 cm x 24.18 cm (9.50 in x 0.96 in x 9.52 in) |
| Weight | 0.91 kg (2.0 lb) |
| Shipping Weight | 2 kg (4.4 lb) |
| Country of Origin | USA |
Frequently Asked Questions
Q: What transducer types are supported by the 3500/45-01-00 position monitor configuration?
A: Option code 01 supports position I/O modules with internal terminations for proximitor sensors, rotary positional transducers (RPT), and DC LVDTs.
Q: How much rack space does the monitor module occupy?
A: The main monitor module occupies one full-height front slot in a 3500 series rack.
