Product Description

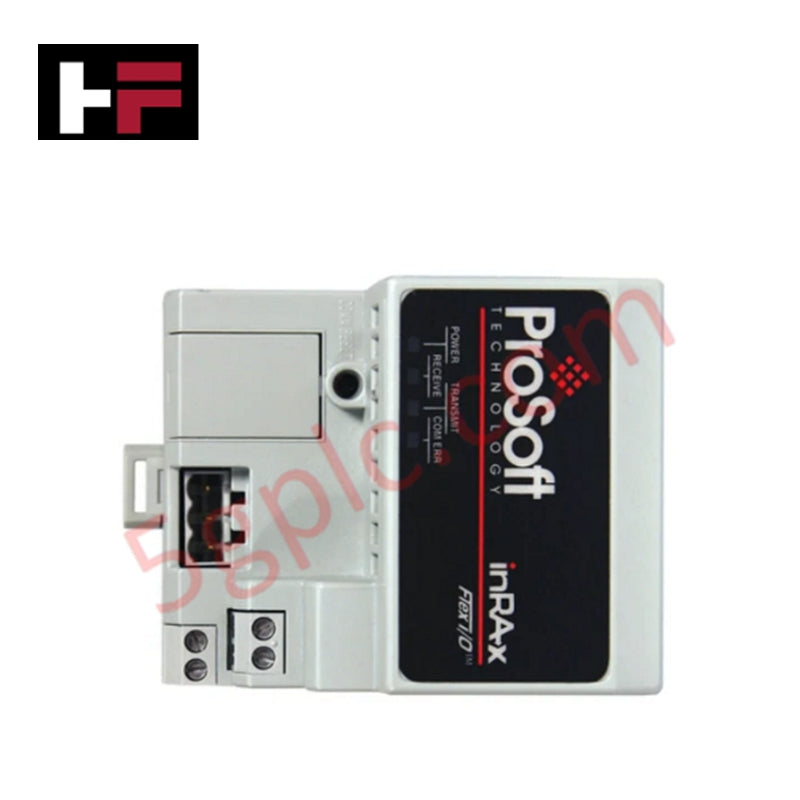

The 3170-MBS from ProSoft Technology is a single-slot Modbus Slave communications adapter designed for seamless integration of Modbus devices with Rockwell Automation PLCs. It enables data exchange between heterogeneous networks using a common memory database, providing reliable communication for SCADA and field device applications. The module supports configurable serial ports, high-level diagnostic monitoring, and floating-point data transfer compatible with multiple implementations.
Form Factor & Compatibility
-
Form Factor: Single-slot, compatible with 1794 backplane
-
Backplane Compatibility: Installable in any backplane slot
-
Backplane Current Load: 20 mA @ 5 V
Power & Electrical
-
External Power Supply: 12–24 VDC
-
Current Draw: 340 mA–170 mA
-
Optical Isolation: 500 V from backplane
Environmental Specifications
-
Operating Temperature: 0°C to 55°C (32°F to 131°F)
-
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
-
Shock: 30 g operational, 50 g non-operational
-
Vibration: 5 g, 10–150 Hz
-
Relative Humidity: 5–95% RH, non-condensing
LED Indicators
-
Module Status
-
Backplane Transfer Status
-
Application Status
-
Serial Activity/Error Status
Serial Ports
-
Configuration Port (PRT 1): Mini-DIN RS-232 with hardware handshaking
-
Application Port (PRT 2): Mini-DIN RS-232/422/485, jumper selectable
Physical Dimensions
-
Height × Width × Depth: 3.7 × 3.7 × 2.7 in (94 × 94 × 69 mm)
-
Weight: 0.5 kg (approx.)
Key Features
-
Network Integration: Enables data exchange across two communication protocols using a shared memory database
-
Diagnostics: View network and application diagnostics from a single configuration/debug port
-
Modbus Slave Interface:
-
Emulates Modbus slave on configurable application port
-
Supports Modbus RTU and ASCII protocols
-
Floating-point data transfer compatible with Enron, Daniel®, and other formats
Applications
Ideal for SCADA systems and field device interfaces requiring Modbus slave connectivity. It facilitates integration of legacy and modern devices within a single network environment.
FAQ
Q: How many Modbus protocols does this module support?
A: Supports both Modbus RTU and Modbus ASCII protocol versions.
Q: Can it handle floating-point data?
A: Yes, including Enron, Daniel®, and other floating-point formats.
Q: What kind of serial connections are available?
A: Configurable RS-232/422/485 serial ports with jumper selection for flexibility.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
