Product Details
Overview

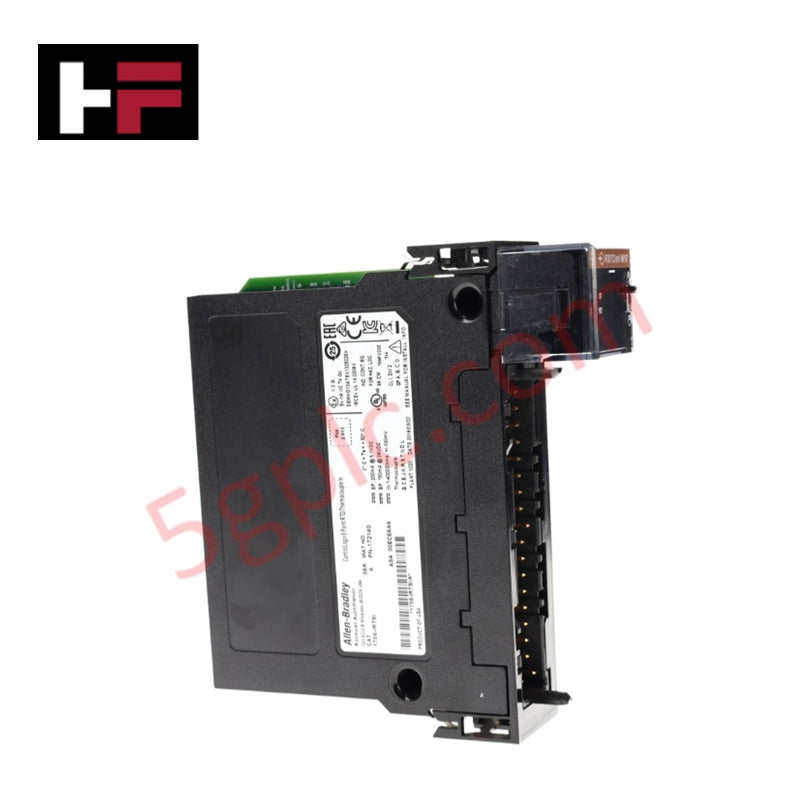

The Allen-Bradley 1756-IRT8I is an 8-channel ControlLogix isolated analog input module optimized for precise temperature and millivolt (mV) measurements. Designed for thermocouple applications, it offers high-resolution signal acquisition and maintains full electrical isolation between input channels and the backplane.
Technical Specifications
-
Manufacturer: Allen-Bradley (Rockwell Automation)
-
Model / Part Number: 1756-IRT8I
-
Product Type: ControlLogix Isolated Analog I/O Module
-
Channels: 8 isolated inputs
-
Input Mode: Thermocouple
-
Input Voltage Range: -100 to 100 mV
-
Actual Input Range Capability: -101 to 101 mV
-
Resolution: 24-bit theoretical, 23.98-bit effective across full range
-
Removable Terminal Block: 36-pin (compatible with 1756-TBCH or 1756-TBS6H)
-
Isolation: Each input channel is individually isolated to prevent interference
-
Module Mounting: Standard ControlLogix chassis slot
Key Features
-
High-accuracy 8-channel analog input for thermocouples
-
Individually isolated channels improve system safety and signal integrity
-
Compatible with standard ControlLogix terminal blocks for easy installation
-
Supports millivolt-range signals for precise process monitoring
-
Ideal for temperature and low-voltage sensor integration
Applications
-
Industrial process temperature measurement and monitoring
-
Integration with ControlLogix systems requiring isolated analog inputs
-
High-precision signal acquisition for research or manufacturing processes
FAQs
Q1: What type of signals does the 1756-IRT8I accept?
It supports thermocouple temperature signals and low-voltage millivolt inputs.
Q2: How many inputs are isolated?
All 8 channels are individually isolated for improved safety and reduced cross-talk.
Q3: Which terminal blocks are compatible?
It is compatible with 36-pin 1756-TBCH or 1756-TBS6H removable terminal blocks.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
