Overview

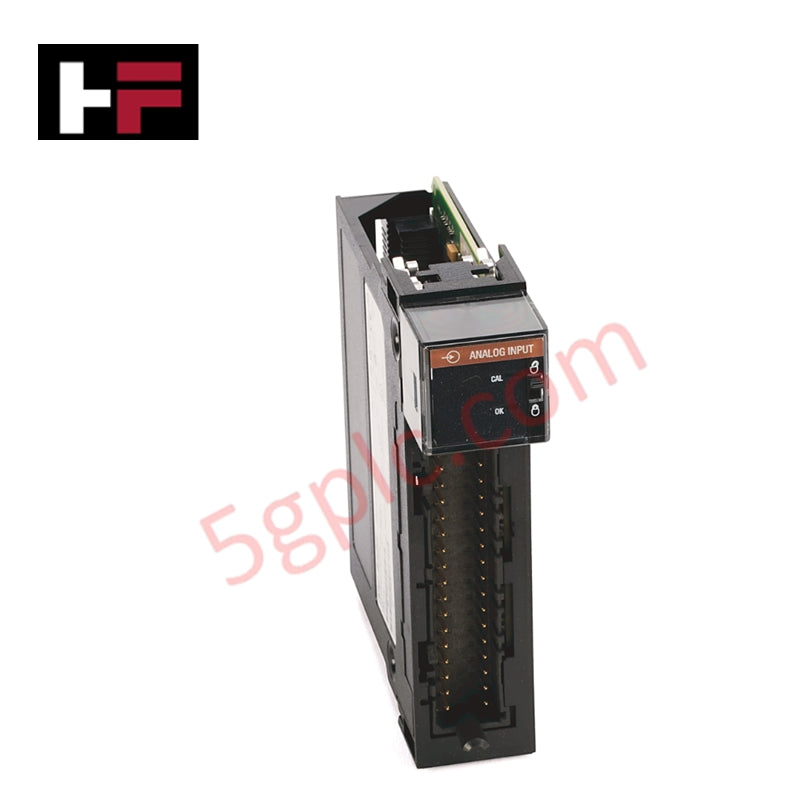

The Allen-Bradley 1756-IF8IH is a high-precision ControlLogix analog input module featuring 8 isolated differential channels with integrated HART communication. Designed for reliable process monitoring, this module ensures accurate analog data acquisition in industrial automation environments.
Technical Specifications
-
Manufacturer: Allen-Bradley
-
Product Line: ControlLogix
-
Model / Part Number: 1756-IF8IH
-
Product Type: Isolated Analog Input Module with HART Protocol
-
Module Type: 8-Point Differential Analog Input (Isolated)
-
Analog Input Range: 0–20 mA or 4–20 mA
-
Resolution: 16–21 Bits
-
Enclosure Type: Open
-
Overvoltage Protection: ±24 V DC
-
HART Protocol: Dedicated modem for communication on each channel
-
Backplane Compatibility: ControlLogix chassis
-
Removable Terminal Blocks: Compatible with standard 1756 series terminal blocks
-
Weight: 0.50 lbs (0.23 kg)
Key Features
-
Fully isolated channels to prevent cross-talk and improve signal integrity
-
HART-enabled inputs for advanced digital communication alongside analog measurements
-
High-resolution acquisition suitable for critical process monitoring
-
Compact open-style module for flexible installation in ControlLogix racks
-
Reliable ±24 V overvoltage protection for enhanced durability
Application Scenarios
-
Industrial process monitoring and control requiring isolated analog inputs
-
Integration with ControlLogix controllers for high-accuracy data acquisition
-
HART-compatible field device measurement and diagnostic applications
-
Multi-channel analog input for process automation and SCADA systems
FAQs
Q: How many channels support HART simultaneously?
A: All 8 channels support HART communication simultaneously for real-time diagnostics.
Q: What is the input signal range?
A: The module accepts 0–20 mA and 4–20 mA signals.
Q: Is the module isolated?
A: Yes, all 8 channels are fully isolated to prevent interference between inputs.
