Product Details
Overview

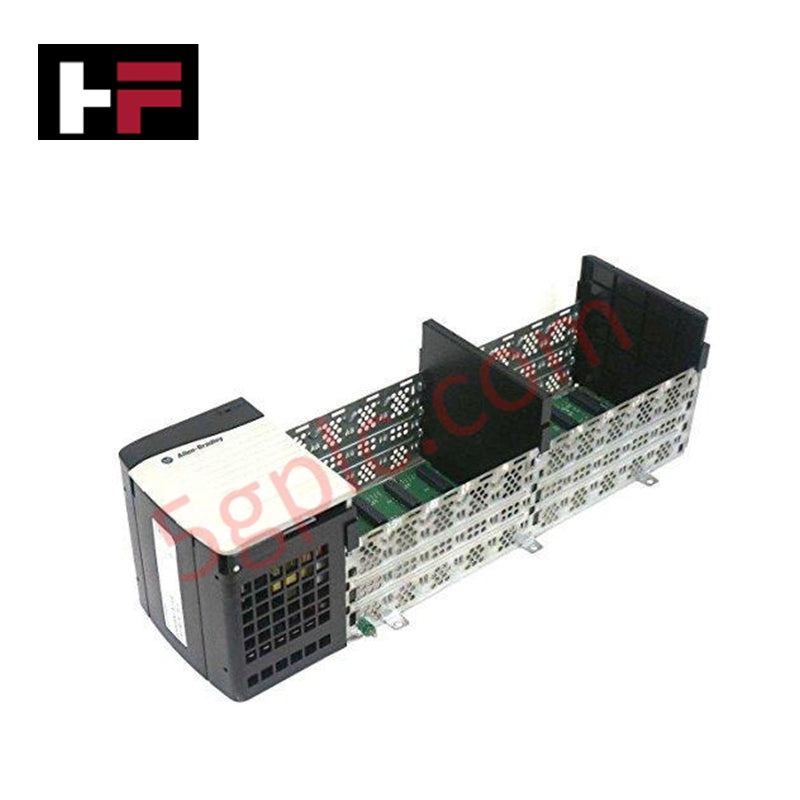

The Allen Bradley 1756-A13 is a durable 13-slot chassis designed for use within the ControlLogix family of programmable logic controllers (PLCs). This panel-mount unit provides reliable electrical connections, efficient power distribution, and a robust design suitable for demanding industrial automation applications.
Key Features
-
Model Number: 1756-A13
-
Part Number: 1756-A13
-
Manufacturer: Allen Bradley
-
Product Line: ControlLogix
-
Product Type: 13-Slot Chassis
-
Mounting: Panel mount
-
Orientation: Horizontal
-
Slots: 13 slots for flexible module configurations
-
Weight: 3.31 lbs (1.50 kg)
-
Enclosure: Open
Electrical Specifications
-
Backplane Current
-
1.2VDC: 1.5A
-
3.3VDC: 4A/4A
-
5.1VDC: 15A/6A
-
24VDC: 2.8A/2.8A
-
Power Dissipation (Max): 5.4 W
-
Backplane Current (5VDC): 10A
-
Backplane Current (24VDC): 2.8A
Temperature and Environmental Conditions
-
Operating Temperature (Series B): 0°C to +60°C (+32°F to +140°F)
-
Operating Temperature (Series C): -25°C to +60°C (-13°F to +140°F)
-
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
-
Relative Humidity: 5% to 95% (non-condensing)
Grounding Specifications
-
Functional Earth Ground: 8.3 mm² (8 AWG) solid or stranded copper wire rated for 90°C (194°F) or higher
-
Protective Earth Ground: 2.1 mm² (14 AWG) solid or stranded copper wire rated for 90°C (194°F) or higher
Applications
The 1756-A13 chassis is designed to house and protect ControlLogix modules, making it ideal for industrial automation systems requiring up to 13 modules. It's commonly used in applications that demand flexibility and reliability, such as machine control, process automation, and factory floor automation.
FAQs
Q: What is the primary use of the 1756-A13 chassis?
A: The 1756-A13 chassis serves as a housing for ControlLogix modules, offering stable power distribution and secure connections in industrial automation systems.
Q: How many modules can be installed in the 1756-A13 chassis?
A: The 1756-A13 chassis features 13 slots, providing ample space for various ControlLogix modules based on system needs.
Q: What is the temperature range for the 1756-A13?
A: The 1756-A13 operates within a temperature range of 0°C to +60°C for Series B, and -25°C to +60°C for Series C.
