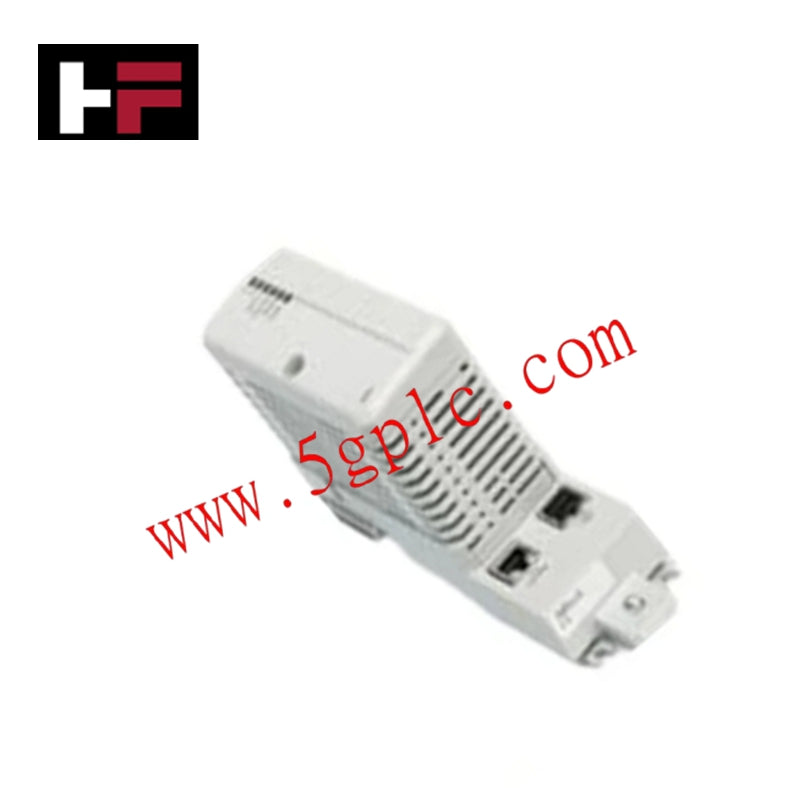

ABB DI802 3BSE022360R1 S800 I/O Digital Input Module

Description

The DI802 3BSE022360R1 is an 8-channel 120V digital input module with individual galvanic isolation for each channel, preventing noise or faults from spreading. Its input filter minimizes false triggering, and its compact rail-mounted design integrates easily with MTUs for simplified wiring within S800 I/O systems.

Specifications

• Manufacturer: ABB

• Country of Origin: Switzerland

• Model Number: DI802 (3BSE022360R1)

• Product Type: Digital Input Module

• Number of Channels: 8 (Isolated)

• Input Voltage Range: 120 V AC/DC (Nominal)

• Signal Logic: High/Low detection

• Power Supply: 24 V DC (Internal via ModuleBus)

• Galvanic Isolation: Individual channel isolation

• Input Filter Time: 20 ms (Default)

• Weight: 0.25 kg

Features

• High-Voltage Signal Monitoring: Specifically rated for 120V AC/DC environments, eliminating the need for interposing relays for standard mains-level sensing.

• Per-Channel Isolation: Enhanced system reliability through individual isolation, protecting the control logic from field-side electrical transients.

• Reliable Signal Filtering: Integrated software and hardware filtering ensures stable status reporting even in electrically noisy industrial settings.

• Modular S800 Integration: Compact form factor allows for high-density I/O clusters on a single DIN rail, reducing overall enclosure requirements.

• Hot-Swap Support: Designed for industrial availability, allowing for module replacement while the system is powered (with compatible MTU).

• Diagnostic Indicators: Front-panel LED array provides instantaneous status for each of the 8 inputs and the overall health of the module.
