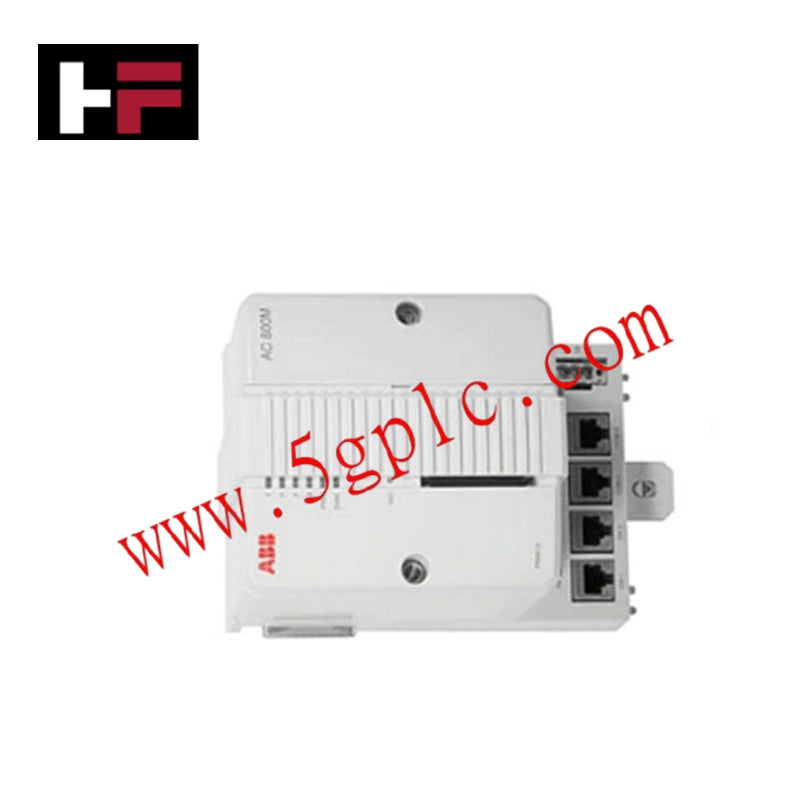

ABB PM866K01 3BSE050198R1 AC 800M High-Performance Processor Unit Kit

Description

The PM866K01 3BSE050198R1 is a high-performance logic execution engine for Advant OCS and System 800xA platforms. With a 32-bit architecture and 64 MB of RAM, it supports larger I/O counts and complex programs. The kit includes the PM866 CPU and baseplate for DIN rail installation. Optimized for mission-critical operations, it offers power and communication redundancy to prevent interruptions. Dual Ethernet ports enable high-level networking, while the dedicated ModuleBus provides synchronization for local S800 I/O clusters, making it a reliable hub for distributed control systems.

Specifications

• Manufacturer: ABB

• Country of Origin: Sweden / Estonia

• Model Number: PM866K01

• Order Number: 3BSE050198R1

• Product Type: Processor Unit Kit

• Microprocessor: 32-bit RISC (96 MHz)

• Onboard RAM: 64 MB

• Onboard Flash: 8 MB

• Interfaces: 2x RJ45 Ethernet, 2x RS-232, 1x ModuleBus

• Nominal Voltage: 24 V DC (19.2 - 30 V DC)

• Installation: 35mm DIN rail

• Protection Class: IP20

Features

• Maximum Computational Capacity: Equipped with a 96 MHz processor and 64 MB of RAM to handle extensive control strategies and high-density data processing.

• Network Redundancy Support: Dual Ethernet interfaces facilitate redundant network topologies, ensuring continuous data flow between controllers and HMI stations.

• Large-Scale I/O Management: Optimized for high-density I/O clusters, providing rapid signal synchronization via the high-speed ModuleBus link.

• High-Availability Architecture: Designed for redundant CPU configurations to ensure zero process downtime during hardware failures or maintenance.

• Versatile Connectivity: Supports multiple communication protocols including MMS, Modbus TCP, and PROFIBUS/PROFINET via expansion modules.

• Rugged Industrial Performance: Maintains stability in harsh environments with specialized thermal management and vibration-resistant mounting.
