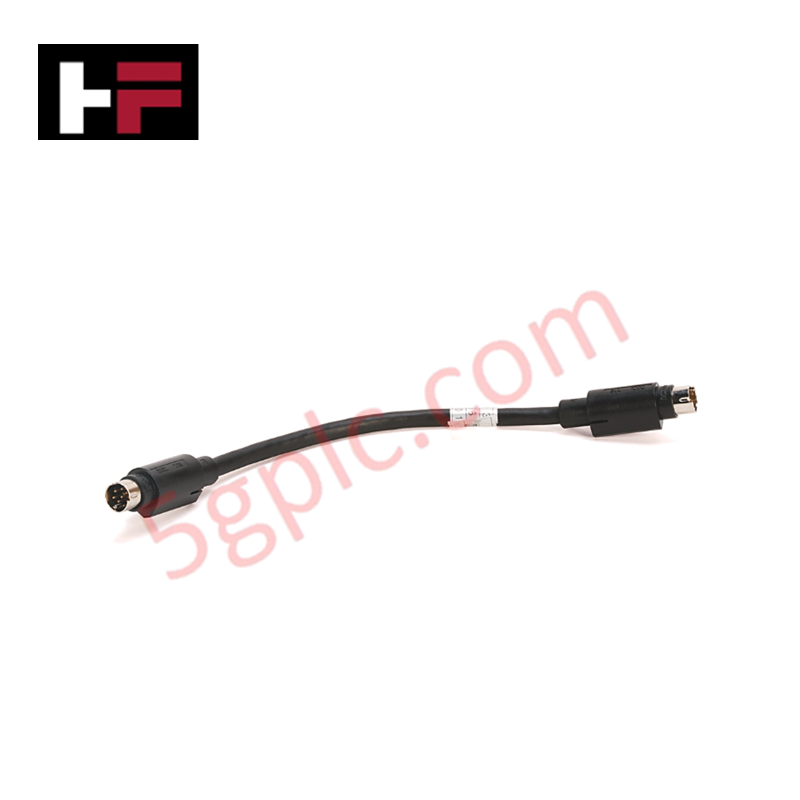

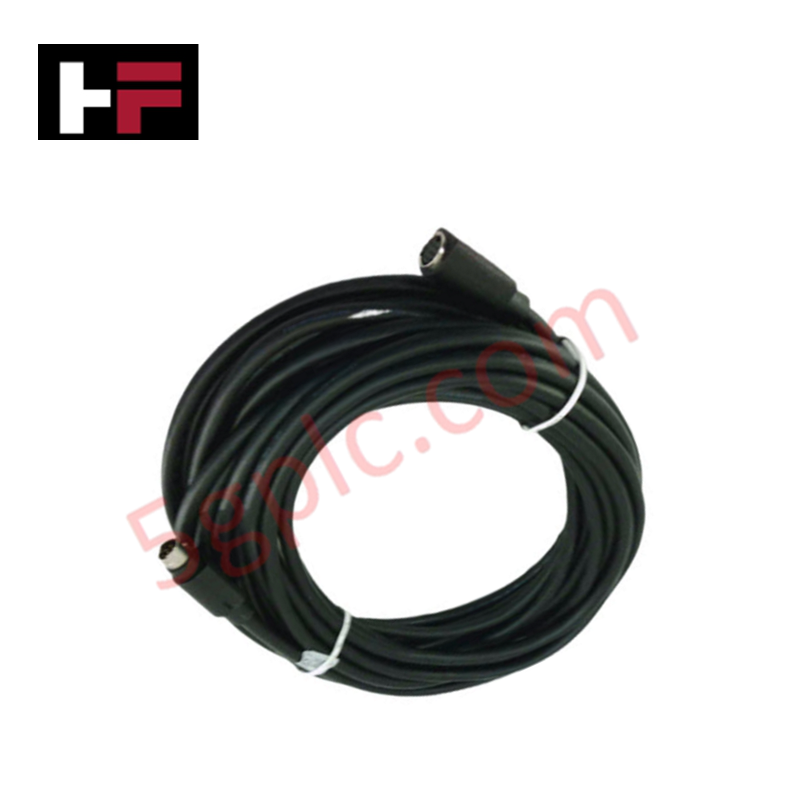

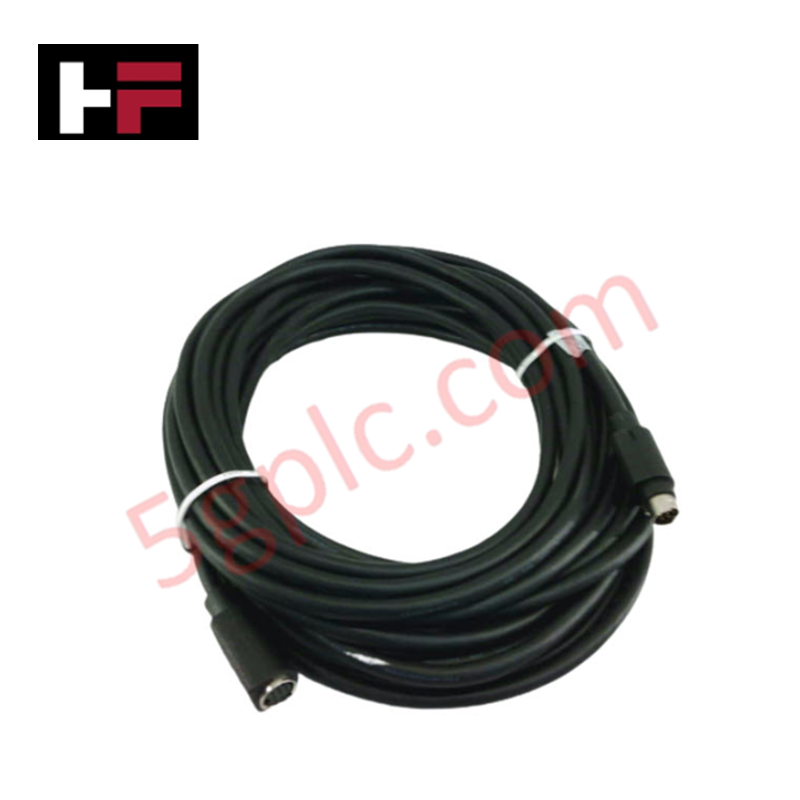

Allen-Bradley 1202-H90 SCANport Human Interface Module Cable Kit

Product Overview

The Allen-Bradley 1202-H90 delivers extended connectivity for industrial drive systems utilizing the SCANport interface. This 9-meter cable kit enables engineers to remotely mount a Human Interface Module (HIM) away from the variable frequency drive (VFD) enclosure. Featuring a durable male-to-female configuration, it ensures a secure and direct connection for programming, monitoring, and troubleshooting drive parameters. We supply this item as a 100% Brand New, factory-sealed unit.

Part Number Breakdown

• 1202: Identifies the Allen-Bradley drive accessories and cable product family.

• H: Denotes the accessory type (HIM / Human Interface Module cable).

• 90: Specifies the cable length (9 meters).

Technical Specifications

Engineering Advantages

Extended Remote Mounting Capability
The 1202-H90 provides a generous 9-meter extension, allowing you to mount the Human Interface Module (HIM) in a highly visible and accessible location, even if the drive itself is installed in a hard-to-reach area, inside a locked cabinet, or high up on a machine frame. This flexibility significantly improves operational safety and ease of use for plant floor technicians.

Seamless SCANport Integration
Designed specifically for products supporting the SCANport interface, this cable ensures plug-and-play compatibility with Allen-Bradley drives and HIMs. The male-to-female connector design creates a direct passthrough link, maintaining full data integrity for drive configuration, status monitoring, and fault diagnostics without signal degradation over the extended distance.

Durable Industrial Construction
Built to withstand the rigors of daily industrial use, the cable kit features robust shielding and strain relief at the connection points. Its durable jacket protects the internal wiring from physical damage, oil, and typical factory floor contaminants, ensuring a long service life for your critical drive communication link.

FAQs

Q: What is the maximum length of the 1202-H90 cable?
A: This cable kit provides a total length of 9 meters (approximately 29.5 feet), which is ideal for extending a drive's HIM to a remote operator station or a more accessible panel door location.

Q: Which drives and modules are compatible with this cable?
A: The 1202-H90 is designed for use with any Allen-Bradley drive and Human Interface Module (HIM) that features a SCANport interface. It is commonly used with PowerFlex and other legacy drive families that support this communication standard.

Q: What type of connectors does this cable use?
A: The cable features a male-to-female connector configuration. This allows it to plug directly into the SCANport port on the drive, while the female end accepts the standard plug from the detachable HIM.

Q: Can I use this cable to connect a PC to the drive?
A: No. This cable is specifically engineered to connect a Human Interface Module (HIM) to a drive. For connecting a PC to a SCANport drive for programming, you would typically need a different interface converter, such as a 1203-USB or similar SCANport-to-USB/Serial adapter.
