Product Overview

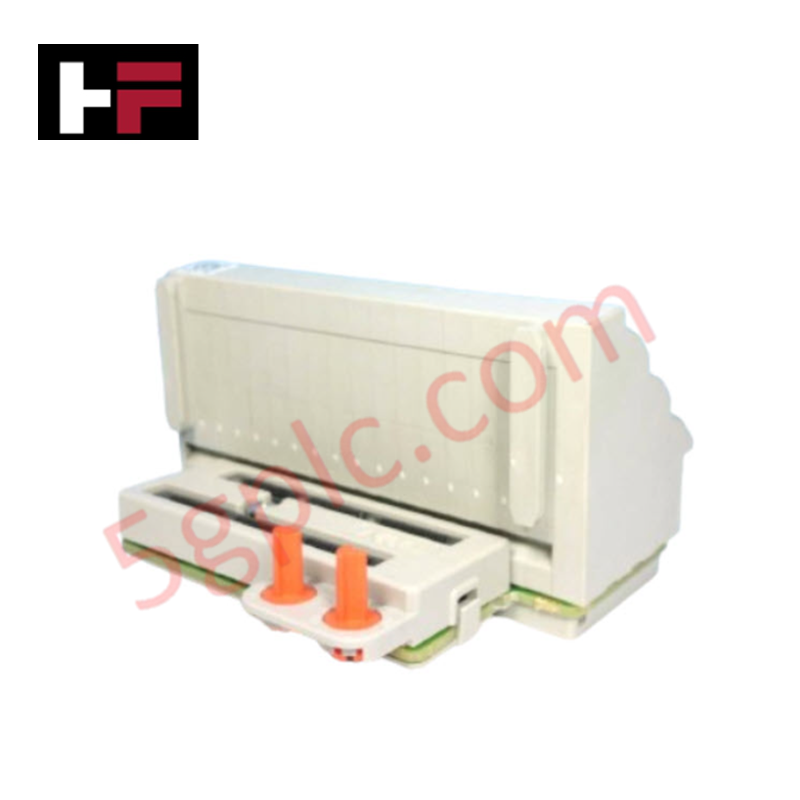

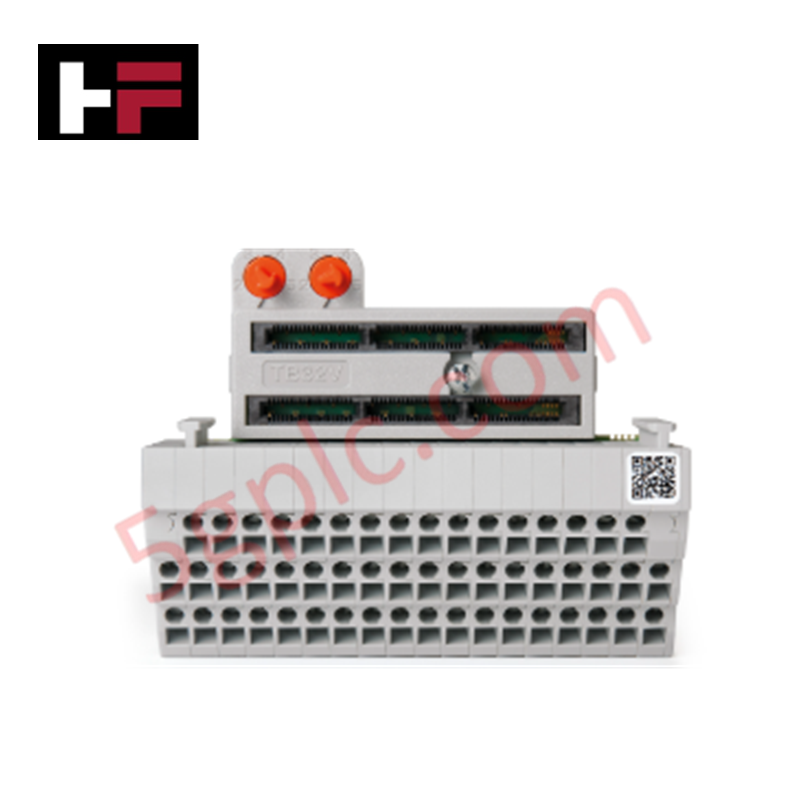

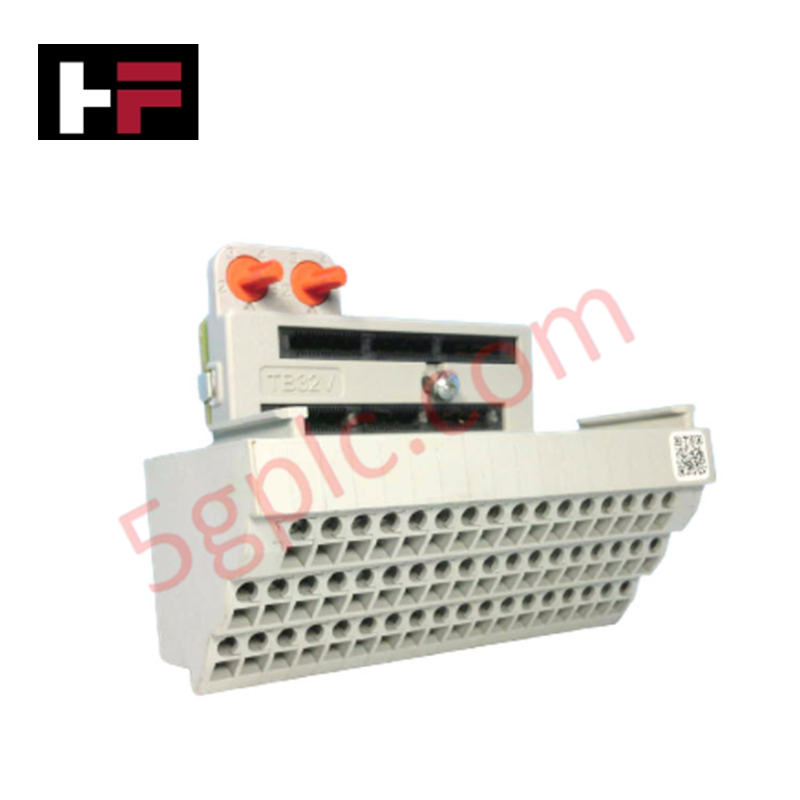

The Allen-Bradley 5094-RTB32C provides a robust and serviceable wiring interface for the FLEX 5000 distributed I/O system. This 32-point removable terminal block (RTB) streamlines the connection of field devices to FLEX 5000 I/O modules. It handles standard I/O ratings of 2 Amps at 32V DC and supports up to 10 Amps for sensor/actuator power. Engineered for harsh industrial environments, it operates reliably in temperatures ranging from -40°C to 70°C. We supply this item as a 100% Brand New, factory-sealed unit.
Part Number Breakdown
-
5094: Identifies the FLEX 5000 I/O platform.
-
RTB: Denotes the Removable Terminal Block accessory.
-
32: Specifies the number of connection points (32 terminals).
-
C: Indicates the specific electrical and mechanical variant.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Line | FLEX 5000 |
| Product Type | Removable Terminal Block (RTB) |
| I/O Rating | 2 Amps at 32 Volts DC |
| Sensor/Actuator Power | 10 Amps at 18-32 Volts DC |
| Wire Size | 14-22 AWG (Copper only) |
| Terminal Torque | 0.4 N•m |
| Isolation Voltage | 250 Volts continuous |
| Operating Temperature | -40°C to 70°C |
| Vibration Resistance | 5 g |
| Shock Resistance | 30 g (Operating) |
Engineering Advantages
Extreme Environmental Durability
The 5094-RTB32C is built to withstand the harshest industrial conditions. It maintains full operational integrity in extreme temperatures ranging from -40°C to 70°C and tolerates up to 95% non-condensing humidity. With a vibration resistance of 5 g and an operating shock rating of 30 g, this terminal block ensures secure wire connections even in high-vibration machinery and heavy-duty processing environments.
Rapid Maintenance and Serviceability
Designed for maximum uptime, the removable terminal block allows technicians to disconnect the entire wiring assembly from the I/O module without removing individual wires. This plug-and-play capability drastically reduces Mean Time To Repair (MTTR) during module replacement or system troubleshooting, eliminating the risk of wiring errors during reinstallation.
Flexible Mounting and High Power Capacity
This RTB supports versatile mounting orientations, including horizontal, vertical, and inverted positions, giving engineers complete freedom in control panel layout. It efficiently manages power distribution by supporting up to 10 Amps at 18-32V DC for sensor and actuator power, simplifying the wiring architecture for dense I/O applications.
FAQs
Q: What is the operating temperature range of the 5094-RTB32C?
A: This terminal block is rated for an exceptionally wide operating temperature range of -40°C to 70°C, making it suitable for extreme environments such as outdoor installations, freezer applications, or hot manufacturing floors.
Q: What torque specification should be used for the terminal screws?
A: To ensure a secure and reliable connection without damaging the terminal block, you should apply a torque of exactly 0.4 N•m to the terminal screws.
Q: What type and size of wire does this RTB accept?
A: The 5094-RTB32C is designed for use with copper wire only. It accommodates wire sizes ranging from 14 AWG to 22 AWG.
Q: Can this terminal block handle power for sensors and actuators?
A: Yes. In addition to standard 2A I/O signals, the block features dedicated paths for sensor/actuator power, supporting a maximum of 10 Amps at 18-32V DC.
