GE Fanuc IC693MDL340 सीरीज 90-30 120 VAC आउटपुट मॉड्यूल

Product Description

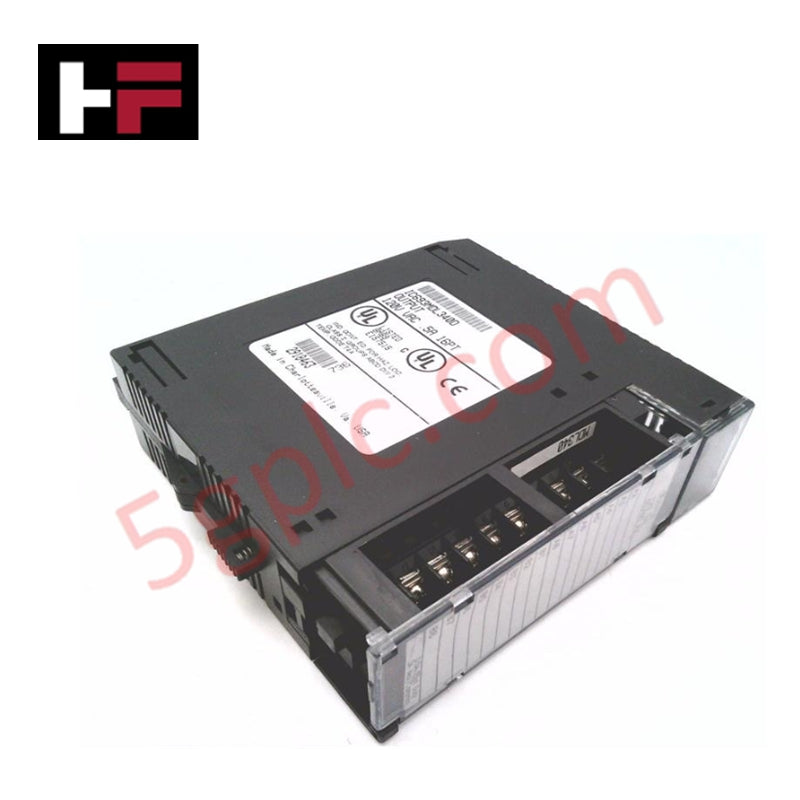

The IC693MDL340 is a discrete output module from the GE Fanuc Series 90-30 family. Designed for AC control applications, it provides 16 output points arranged in two isolated groups. With strong isolation, fast switching response, and reliable performance, this module is well-suited for industrial automation systems requiring 120 VAC outputs.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Product Line: Series 90-30

• Part Number: IC693MDL340

• Product Type: Output Module

• Weight: 1.00 lbs (0.45 kg)

• Outputs: 16 discrete channels

• Groups: Two groups, each with 8 channels

• Nominal Output Voltage: 120 VAC

• Output Voltage Range: 85–132 VAC

• Frequency: 50–60 Hz

• Output Current per Point: 0.5 A

• Output Current per Group: 3 A maximum

• Isolation: 1500 V between field and logic sides; 500 V between groups

• Inrush Current: 20 A for one cycle

• On Response Time: 1 ms

• Off Response Time: ½ cycle

• Maximum Output Voltage Drop: 1.5 V

• Off-State Leakage Current: ≤ 2 mA at 120 VAC

• Minimum Load Current: 50 mA

• Product Lifecycle Status: Discontinued / Obsolete

Application Scenarios

• Industrial Control Systems: Provides reliable AC output switching for Series 90-30 PLCs.

• High-Density Output Needs: Supports 16 outputs across two isolated groups.

• Safety-Critical Applications: Strong isolation between logic and field sides ensures protection.

• Legacy System Maintenance: Suitable for supporting discontinued Series 90-30 installations.

FAQ

Q: How many outputs does the IC693MDL340 provide?  A: It offers 16 discrete outputs divided into two groups of eight.

Q: What is the maximum current per output point?  A: Each point supports up to 0.5 A, with 3 A per group.

Q: What isolation levels are provided?  A: 1500 V between field and logic sides, and 500 V between groups.

Q: Is the IC693MDL340 still in production?  A: No, it has been discontinued and is considered obsolete.
