Product Details

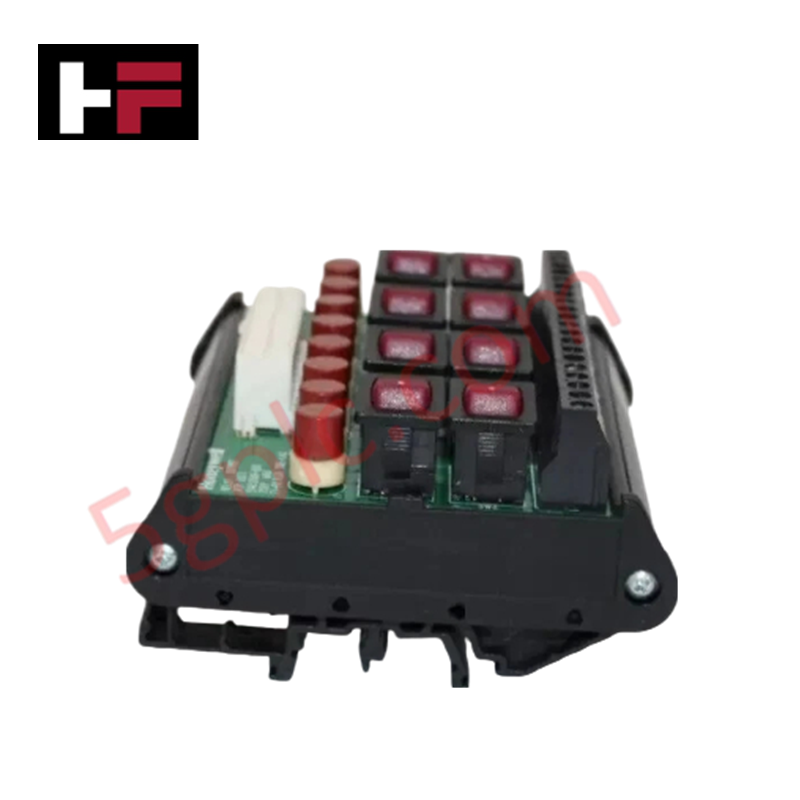

The Honeywell 900RTR-H001, also cataloged as the 900RTR-H001 Remote Terminal Panel (RTP), operates as a dedicated hardware component for field contact multiplexing and load isolation within Honeywell HC900 Controller platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 900RTR-H001 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.5 kg |
| Dimensions | Standard DIN-rail / Panel Mount RTP Assembly |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Passive panel / 24 VDC coil supply |
| Module Type | Remote Terminal Panel (RTP) Assembly |
| System Compatibility | Honeywell HC900 Controller Series |
| Supported Channel Types | DI, DO, AO, and 16-point AI signal routing |
| Maximum Cable Length | Up to 5 m (16.4 ft) |
| Operating Voltage | 24 VDC |
Channel-to-Channel Isolation and DCS Field Interface
The 900RTR-H001 panel assembly interfaces rack-mounted I/O modules with field actuators via pre-wired cable harnesses spanning up to 5 m. Built to route digital inputs, digital outputs, analog outputs, and 16-point analog inputs, the assembly maintains physical channel-to-channel isolation between field power lines and controller backplane electronics. High galvanic isolation across terminal points shields 4-20 mA HART loop protocol circuits and relay contacts from common-mode noise, switching surges, and potential ground loops across distributed control panels.
Frequently Asked Questions
Q: What is the maximum recommended cable length between the 900RTR-H001 RTP and the HC900 rack module?
A: The assembly supports standard pre-fabricated multi-conductor interconnect cables up to a maximum length of 5 m (16.4 ft).
Q: Which I/O signal types can be routed through the 900RTR-H001 terminal assembly?
A: The RTP module accommodates connections for Digital Inputs (DI), Digital Outputs (DO), Analog Outputs (AO), and 16-point Analog Input (AI) module configurations.
Q: Is external power required at the 900RTR-H001 panel for contact operation?
A: An external 24 VDC power feed is wired to the panel to drive relay coils and field loop circuits as required by the connected output modules.
Field Installation Guidelines
- Mount the 900RTR-H001 panel securely onto standard DIN rail or enclosure sub-panels using mechanical mounting hardware.
- Connect the multi-pin pre-fabricated interface cable from the HC900 rack module header to the RTP socket, locking both retention latches.
- Terminate field actuator wiring to screw terminals using specified wire gauges and torque settings.
- Separate high-voltage AC load lines from low-voltage analog signal wiring in panel wire raceways.
- Connect cable shielding drain wires directly to the primary enclosure earth ground bar to maintain signal noise immunity.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
