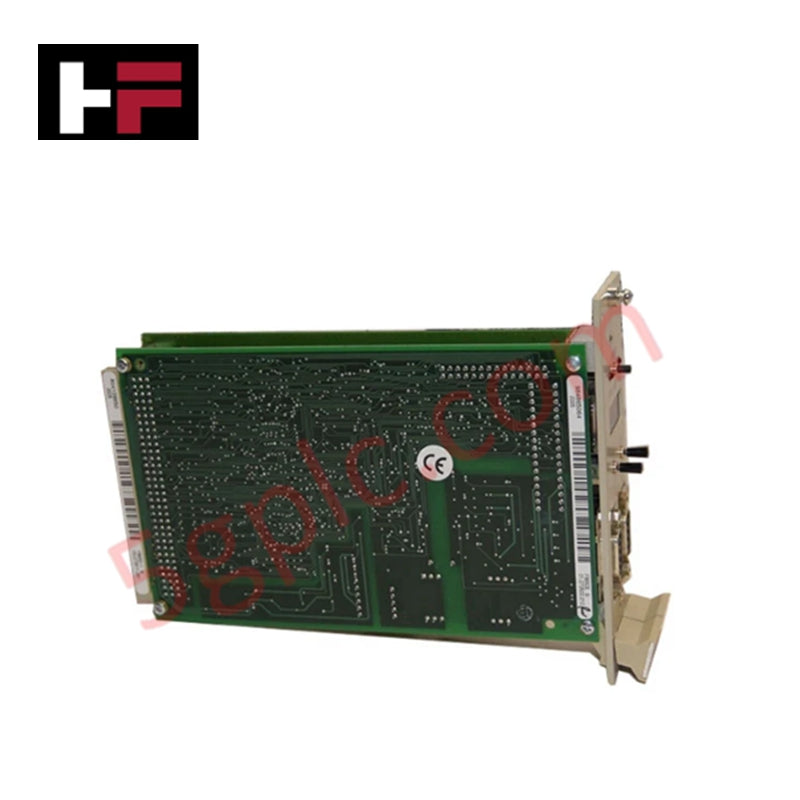

HIMA H51q System F 8650A Central Processing Module (CPM)

Technical Architecture Overview

The F 8650A serves as the high-integrity central processing unit for HIMA PES H51q-MS, HS, and HRS safety systems. Engineered to meet rigorous safety standards (AK 1-6 and SIL 3), this module utilizes a redundant microprocessor architecture to ensure fail-safe operation in critical process environments. It manages logic execution, system diagnostics, and communication protocols across the backplane, providing the computational foundation for emergency shutdown and fire and gas applications.

Detailed Hardware Specifications

• Model Identification: F 8650A

• Processor Architecture: Dual INTEL 386EX 32-bit microprocessors

• System Clock Speed: 25 MHz

• Firmware Memory: 1 MB Flash-EPROM for Operating System storage

• Application Memory: 512 KB Flash-EPROM for user-defined safety programs

• Volatile Data Storage: 256 KB SRAM for real-time variables and stack operations

• Communication Ports: Dual RS 485 serial interfaces for peripheral connectivity

• Integrated Diagnostics: 4-digit alphanumeric matrix display for real-time status and error codes

• Safety Mechanism: Hardware-based fail-safe watchdog for autonomous error switch-off

• Watchdog Output: 24 VDC output, 500 mA rated capacity, short-circuit protected

• System Compatibility: Optimized for H51q-MS, H51q-HS, and H51q-HRS safety racks

• Safety Integrity Level: Certified for use in safety-related requirements up to AK 6 / SIL 3

Safety Logic and Diagnostic Functionality

The F 8650A is designed with a 1-out-of-2 (1oo2) or 2-out-of-4 (2oo4) internal voting structure depending on the system configuration. The onboard matrix display provides engineers with immediate site diagnostics without requiring external software for basic troubleshooting. If a critical internal fault is detected, the fail-safe watchdog immediately de-energizes the safety-related outputs to bring the process to a predefined safe state.

Technical FAQ

What is the function of the watchdog output on the F 8650A?The 24 VDC watchdog output is used to signal the healthy status of the CPU to external monitoring devices or to power safety relays. If the F 8650A detects a hardware discrepancy, this output drops to 0V.

Can the user program be modified while the system is online?Modifications depend on the specific H51q system redundancy level. In HRS (High Redundancy) configurations, the F 8650A supports specialized reload procedures to maintain safety integrity during updates.
