IC200ERM002 GE Fanuc VersaMax I/O Expansion Receiver Module

Product Overview

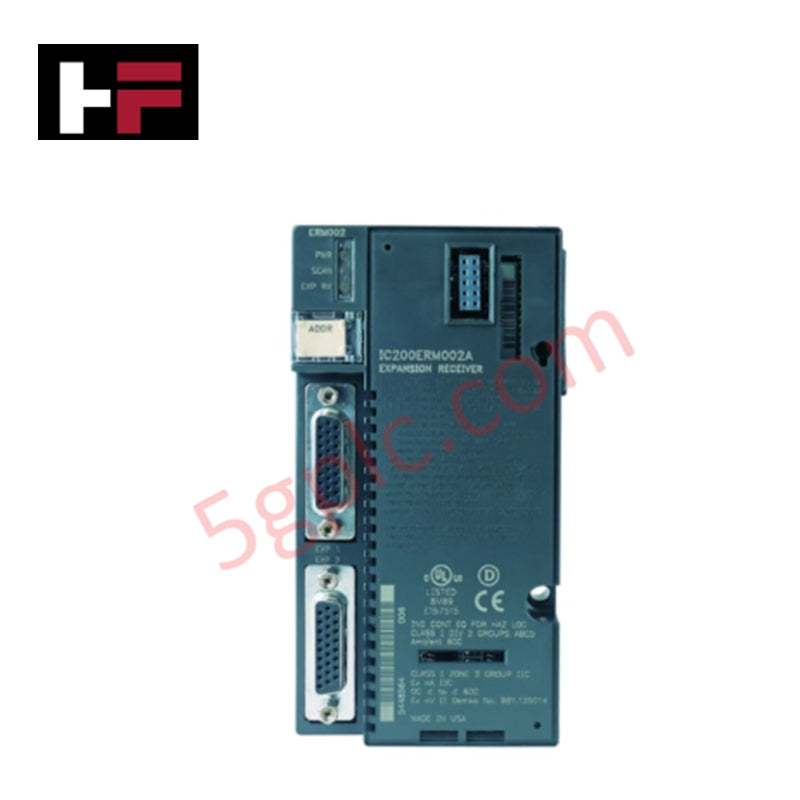

The GE Fanuc IC200ERM002 is a non-isolated expansion receiver module designed for the VersaMax PLC series. It enhances system capacity by allowing additional I/O modules to connect, supporting up to seven groups with a maximum of eight modules per group. The module provides robust backplane communication, LED status indicators, and dual 26-pin D-shell ports for daisy chaining or terminator connections. Its compact design and flexible mounting make it ideal for expanding PLC capabilities in industrial automation environments.

Technical Specifications

• Manufacturer: GE Automation and Controls

• Series: VersaMax

• Model Number: IC200ERM002

• Product Type: Non-Isolated Expansion Receiver Module

• Weight: Approx. 0.9 lbs

• Dimensions (W x H): 66.8 mm x 128 mm (2.63 x 5.04 inches)

• Backplane Current: 5 V DC: 70 mA, 3.3 V DC: 20 mA

• Data Transfer Rate: 5 Mbps (multi-rack) or 2.765 Mbps (single-ended)

• Maximum Cable Length: 50 ft (multi-rack), 3.3 ft (single-ended)

• Ports: Two 26-pin female D-shell expansion ports (top for inbound, bottom for daisy-chaining/terminator)

• LED Indicators: Three on-board LEDs for device and module status

• Power Requirements: Requires main PLC power supply; optional boosters or additional supplies for large configurations

• Mounting: Compatible with standard DIN rail installation

Key Features

• Expands VersaMax PLC systems to support additional I/O modules

• Supports up to 7 groups with 8 modules per group

• Dual 26-pin expansion ports for flexible daisy chaining and terminator connections

• Three LEDs provide clear operational and fault status

• Compact design suitable for dense control panels

• Backplane current optimized for 5 V and 3.3 V operation

Applications

• Extending I/O capacity in VersaMax PLC networks

• Distributed control and data acquisition systems

• Factory automation requiring modular expansion

• Machine control setups where additional I/O modules are needed

FAQ

Q1: How many expansion modules can IC200ERM002 support?
Up to seven groups, each with a maximum of eight modules.

Q2: What is the maximum cable distance for daisy-chaining?
50 ft (15 m) for multi-rack systems, 3.3 ft (1 m) for single-ended setups.

Q3: Are status indicators included?
Yes, three on-board LEDs provide module and device status.

Q4: Is a separate power supply required?
Yes, the module must be connected to the main PLC power supply; additional boosters can be used if needed.
