Product Details
Overview

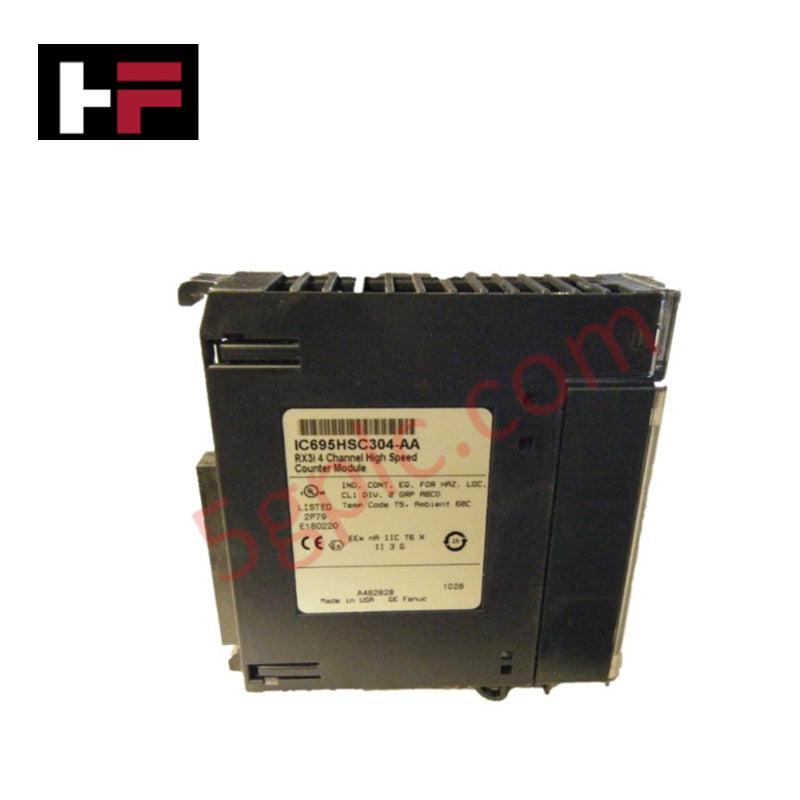

The IC695HSC304 from GE Fanuc is a high-speed counter module for the RX3i PACSystems platform. It provides four independent counter channels capable of handling multiple counter types with fast and precise signal processing. The module is engineered for demanding industrial control and automation applications.
Technical Specifications
-
Model: IC695HSC304
-
Module Type: RX3i High-Speed Counter Module
-
Counter Channels: 4 independent channels
-
High-Speed Inputs: 8
-
High-Speed Outputs: 7
-
Supported Counter Types: A, B, C, D, E, Z, and User-Defined
-
Maximum Count Rate: 1.5 MHz (internal oversampling up to 40 MHz)
-
Counting Range: -2,147,483,648 to +2,147,483,647
Input Specifications:
-
Voltage Ranges: 5 VDC nominal (4.7–5.5 VDC), 12–24 VDC nominal (10–26.4 VDC)
-
Peak Input Voltage: 35 VDC
-
Input Impedance: 10 kΩ
Output Specifications:
-
Voltage Range: 4.7–40 VDC
-
Maximum Output Current: 1.5 A per channel, 10.5 A per module
-
Surge Current: 4.5 A for <450 μs
-
Isolation: 250 VAC continuous, 2500 VAC for 1 minute
Power Requirements:
-
64 mA @ 5 VDC
-
457 mA @ 3.3 VDC
Physical & Mounting:
-
Mounting: RX3i Universal Backplane
-
Dimensions: 34 × 145 × 140 mm
-
Weight: ~0.94 kg
Applications
Ideal for industrial counting, motion control, and process automation systems that require high-speed and precise counting capabilities.
FAQ
-
Q: How many counter channels are supported?
A: Four independent channels. -
Q: What is the maximum count rate?
A: 1.5 MHz with internal oversampling up to 40 MHz. -
Q: Can the module handle surge currents?
A: Yes, up to 4.5 A for durations under 450 μs.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
