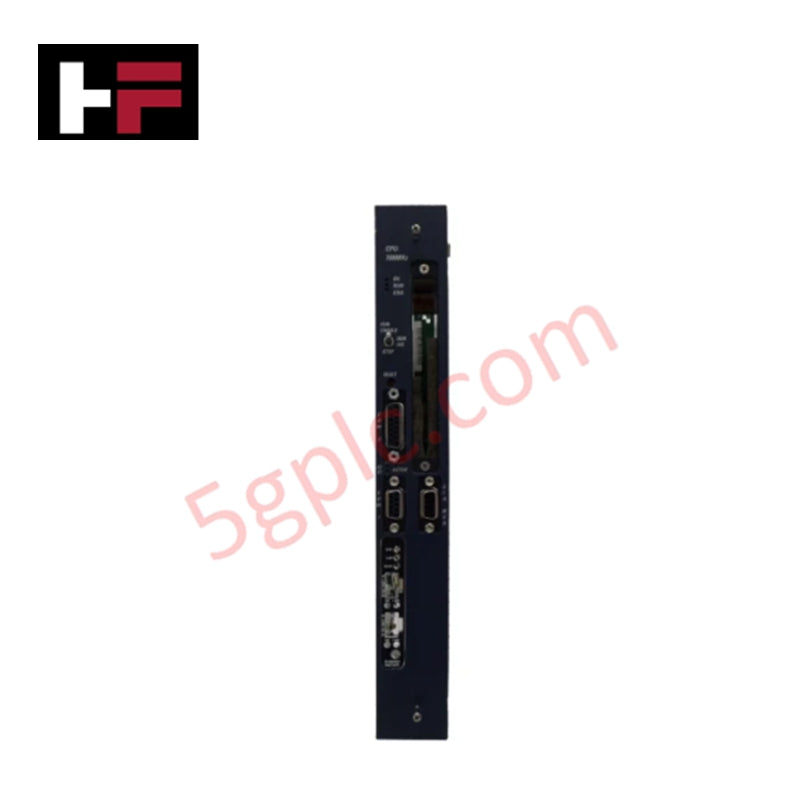

General Electric IC698CPE020 RX7i PACSystems CPU Module

Product Description

The IC698CPE020 is a rack-mounted CPU module from the GE Fanuc PACSystems RX7i series. Designed for high-performance industrial automation, it integrates a Pentium III microprocessor with extensive memory resources and advanced communication capabilities. This CPU supports multiple programming languages and protocols, making it a versatile choice for complex control systems.

Key Features

• Model Number: IC698CPE020

• Series: PACSystems RX7i

• Processor: Pentium III, 700 MHz

• User Memory: 10 MB RAM

• Flash Memory: 10 MB non-volatile storage

• Boolean Execution Speed: 0.14 ms per 1000 Boolean contacts/coils

• Program Blocks: Up to 512 blocks, each with a maximum size of 128 KB

Technical Specifications

• Weight: 2.00 lbs (0.91 kg)

• Discrete I/O Memory: 32 Kbits

• Analog I/O Memory: 32 Kwords

• CPU Memory: 10 MB user logic RAM

• Compatible Storage: SRAM and Flash memory

• Communication Ports:

• Two LAN ports

• Two RS232/RJ45 serial ports

• One RS232 Station Manager port

• Built-in Ports: 2 Serial (RS-232/RS-485), 1 Ethernet (Auto 10/100, RJ45)

• Ethernet Data Rate: 10/100 Mbps

• Supported Ethernet Protocols: SRTP, Modbus TCP (Server/Client), Ethernet Global Data (EGD)

• Supported Serial Protocols: Modbus RTU Slave, SNP, Serial I/O

• FTP/Webserver: Supported, up to 16 connections

• Redundancy: Media redundancy via LAN2; controller redundancy via LAN3 synchronization port

• Floating Point Operations: Supported

• Programming Languages: Ladder Diagram, Structured Text, Function Block Diagram, C

• Current Draw: +5 VDC at 4.5 A nominal; +12 VDC at 0.042 A nominal; -12 VDC at 0.008 A nominal

• Operating Voltage: 5–12 VDC

• Location: RX7i rack installation

Application Scenarios

• Complex Automation Systems: Ideal for large-scale industrial control requiring high-speed processing.

• Flexible Programming: Supports multiple languages for diverse engineering requirements.

• Networked Control: Integrated Ethernet and serial communication for distributed systems.

• Redundancy Support: Ensures system reliability with controller and media redundancy.

FAQ

Q: What processor does the IC698CPE020 use?  A: It is powered by a 700 MHz Pentium III microprocessor.

Q: How much memory is available for user programs?  A: 10 MB RAM and 10 MB flash memory.

Q: Which programming languages are supported?  A: Ladder Diagram, Structured Text, Function Block Diagram, and C.

Q: Does the CPU support redundancy?  A: Yes, both media redundancy and controller redundancy are supported.
