Schneider TSXBLK8 Terminal Block 36-Point 24-Output

Product Overview

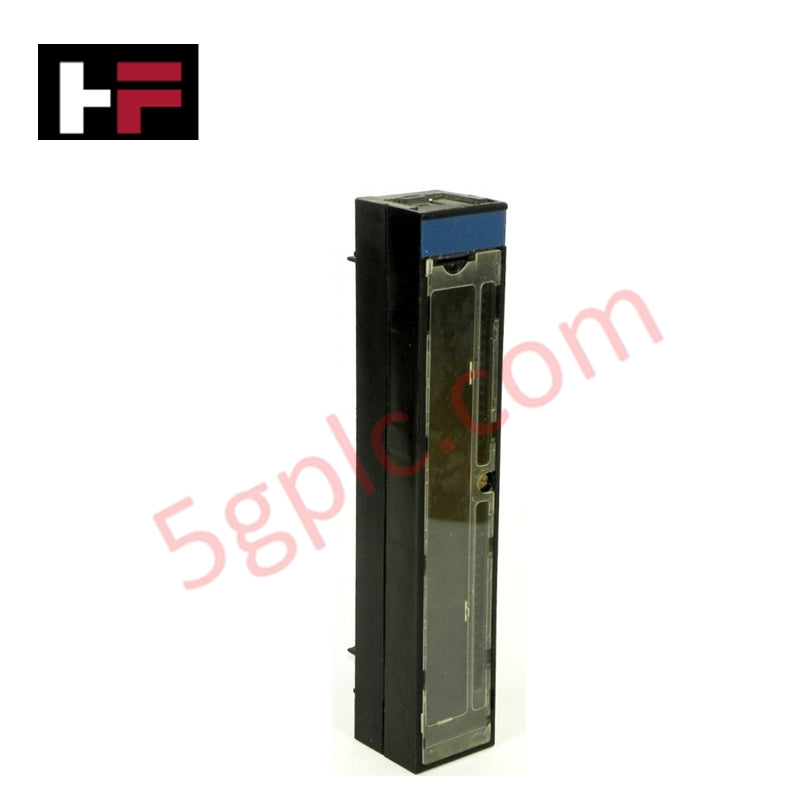

The Schneider TSXBLK8 Terminal Block is a 36-point connection interface designed for use with the Modicon TSX Micro PLC series. It provides reliable wiring and output connectivity for up to 24 output channels. This terminal block ensures secure electrical connections through screw-type terminals, supporting efficient and stable wiring within control panels. The TSXBLK8 serves as both an accessory and a spare part, providing robust integration in automation and machine control environments.

Technical Specifications

• Manufacturer Schneider Electric / Telemecanique

• Model TSXBLK8

• Product Type Terminal Block

• Product Line Modicon TSX Micro PLCs

• Number of Terminals 36 terminals

• Number of Outputs Supported 24 outputs

• Connection Type Screw-type terminal connections

• Mounting Type Panel or rack mount compatible

• Weight 0.31 lbs (0.14 kg)

• Operating Temperature Range 0°C to 40°C

• Storage Temperature Range 0°C to 50°C

• Maximum Operating Humidity 80% RH (non-condensing)

• Maximum Storage Humidity 80% RH (non-condensing)

• Operating Environment Clean, indoor environments free of corrosive agents

• Maximum Operating Altitude 1000 m above sea level

• Maximum Storage Altitude 1000 m above sea level

Application Scenarios

• Industrial control systems requiring reliable terminal connections for Modicon TSX Micro I/O modules

• Panel-mounted PLC systems where space efficiency and secure wiring are essential

• Factory automation and machine control setups needing organized cable termination

• Maintenance and replacement applications for existing TSX system terminal blocks

FAQs

• Q1: What is the primary use of the TSXBLK8 terminal block?
  A1: It provides a reliable 36-point interface for connecting up to 24 PLC outputs in Modicon TSX Micro systems.

• Q2: Does the TSXBLK8 include screw-type connections?
  A2: Yes, it uses durable screw terminals for secure and vibration-resistant connections.

• Q3: Is the TSXBLK8 compatible with all TSX Micro output modules?
  A3: Yes, it is designed to match Schneider TSX Micro output modules for direct connectivity.

• Q4: What are the environmental limitations of this terminal block?
  A4: It operates within 0–40°C and 80% humidity, suitable for clean, indoor industrial environments.
