Product Details
Overview

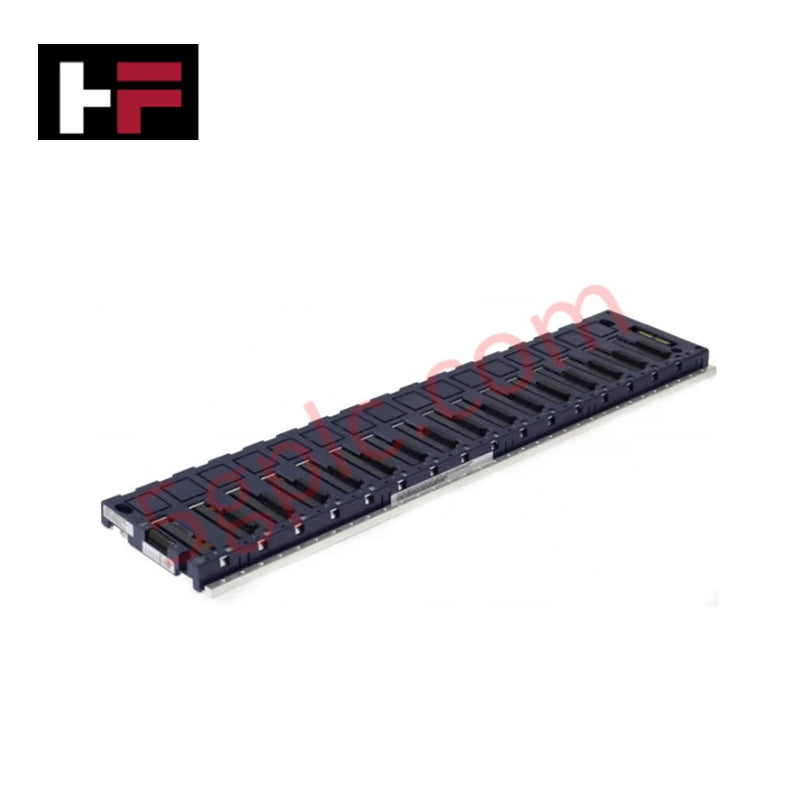

The GE Fanuc IC695CHS016 is a 16-slot universal backplane engineered for the RX3i PACSystems platform, providing robust connectivity for RX3i and Series 90-30 I/O modules. This backplane supports modular expansion, hot-swappable modules, and integrated bus communications, ensuring flexible system architecture and reliable data transfer in industrial control applications.
Its high-current capacity and precision bus design make it suitable for complex PLC networks, supporting both analog and digital I/O modules, while maintaining compatibility with legacy Series 90-30 option modules.
Technical Specifications
-
Manufacturer: GE Fanuc / Emerson
-
Product Line: RX3i PACSystem
-
Model Number: IC695CHS016
-
Product Type: Universal Backplane Module
-
Number of Slots: 16
-
Supported Modules: RX3i I/O, Series 90-30 I/O and option modules
-
Mounting Type: Horizontal rack mount
-
Bus Connectors: PCI Bus / Serial Bus
-
Input Voltage: +24 VDC
-
Current Rating: 600 mA @ 3.3 VDC, 240 mA @ 5 VDC
-
Internal Power Consumption: 600 mA @ 3.3 VDC, 240 mA @ 5 VDC
-
Input Terminals: TB1; Terminal 7: Isolated +24 VDC, Terminal 8: Isolated Ground
-
Grounding: Integrated grounding bar
-
Module Hot-Swap: Supported
-
Installation Protection: NEMA/UL Type 1 (IP20), recommended enclosure IP54 or higher
-
Recommended Wire Size: 14–22 AWG
-
Minimum Installation Clearance: 102 mm (4 inches) on all sides
-
Orientation: Horizontal
-
Weight: 4.56 lbs (2.07 kg)
-
Lifecycle Status: Active
Key Features
-
Universal Compatibility: Works with RX3i and Series 90-30 I/O modules for flexible PLC expansion.
-
High Reliability: Supports 16 slots with robust current ratings to maintain stable operation under full load.
-
Hot-Swappable Modules: Enables replacement or upgrades without shutting down the system.
-
Integrated Bus Communication: PCI and serial bus interfaces facilitate reliable data transfer across modules.
-
Industrial-Grade Construction: Designed for horizontal rack mounting in IP54 or better enclosures.
-
Legacy Support: Fully compatible with existing Series 90-30 option modules.
Applications
-
Modular PLC control systems
-
PACSystems RX3i automation platforms
-
Industrial I/O expansion and integration
-
Critical process control requiring reliable backplane performance
FAQ
Q: Can this backplane support both RX3i and Series 90-30 I/O modules?
A: Yes, the IC695CHS016 supports RX3i modules and legacy Series 90-30 option modules.
Q: Does it support hot-swappable modules?
A: Yes, all 16 slots allow for module replacement without system shutdown.
Q: What is the recommended mounting orientation?
A: Horizontal mounting is required for optimal performance and cooling.
Q: What enclosure rating is recommended?
A: IP54 or greater is recommended for environmental protection.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
