GE VersaMax IC200CHS002 Box-Style I/O Terminal Carrier

Product Overview

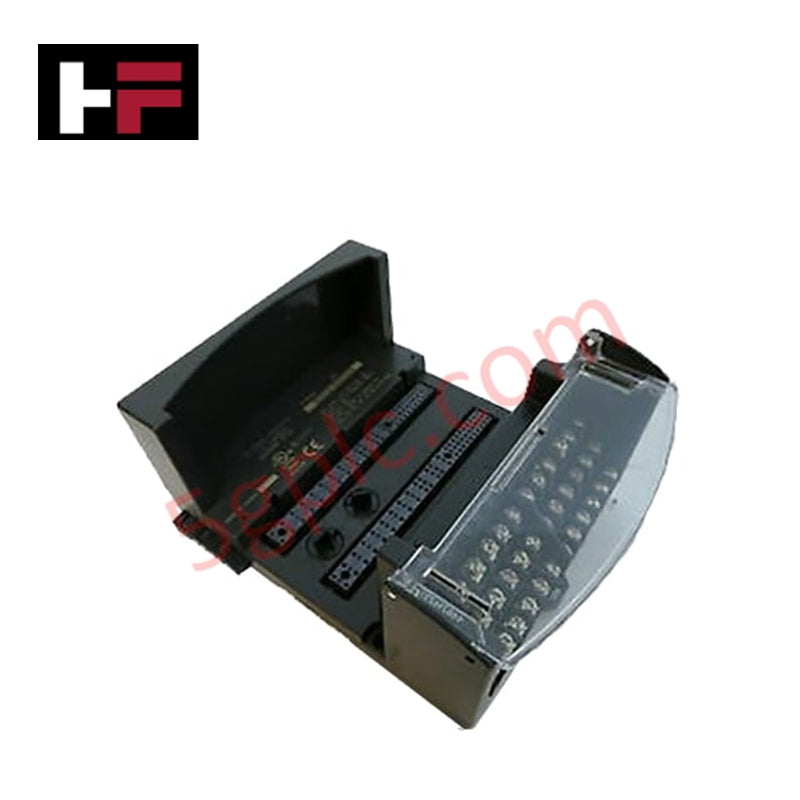

The GE Fanuc IC200CHS002 is a box-style I/O carrier for the VersaMax system, providing secure wiring and backplane connectivity for input/output modules. It supports 32 I/O points plus 4 power terminals and features 36 IEC box-style terminals with a hinged protective cover. Adjustable keying ensures correct module installation, and DIN-rail or panel mounting options make it suitable for standard and high-vibration industrial applications.

Technical Specifications

• Manufacturer: GE Fanuc

• Product Line: VersaMax Series

• Model Number: IC200CHS002

• Product Type: Box-Style I/O Carrier

• Terminal Configuration: 36 IEC box-style terminals

• Supported I/O Points: 32 input/output channels + 4 shared power terminals

• Keying System: Adjustable keying feature prevents incorrect module insertion

• Protective Cover: Transparent hinged door for safety and easy maintenance

• Mounting Options:

• Standard 7.5 mm × 35 mm DIN rail (snap-on installation)

• Panel-mount option for high-shock and vibration resistance

• Grounding Requirement: DIN rail must be electrically grounded for EMC compliance

• Wire Compatibility:

• Accepts solid or stranded wire from AWG 14 to AWG 22

• Supports dual wires up to AWG 18 per terminal

• Auxiliary Connections: Includes additional I/O terminal strip with notches for optional bussed wiring

• Recommended Wire Type: Copper conductors rated to 90°C

Key Features

• 36 box-style terminals providing secure and easy wiring access

• Supports up to 32 I/O points plus shared power terminals

• Hinged transparent cover for wire protection and visibility

• Built-in keying controls ensure proper module matching and installation

• Supports both DIN-rail and panel-mount installations

• Auxiliary terminal strip for additional or shared signal connections

• Durable construction suitable for demanding industrial environments

Applications

• Distributed I/O systems in industrial control networks

• Machine automation and equipment monitoring

• Factory and process automation panels

• Control cabinet assembly and retrofits

• High-reliability installations requiring vibration resistance

FAQ

Q1: How many I/O connections can the IC200CHS002 handle?
It supports up to 32 I/O signal points, along with four shared power connections.

Q2: What wiring type does this carrier support?
It supports both solid and stranded copper wire, AWG 14–22, with dual-wire capability up to AWG 18.

Q3: Is the module protected against accidental wiring contact?
Yes. A transparent hinged door shields terminals while allowing easy inspection.

Q4: What installation options are available?
The carrier snaps onto a standard DIN rail or can be mounted directly to a panel for high-vibration environments.
