Product Details

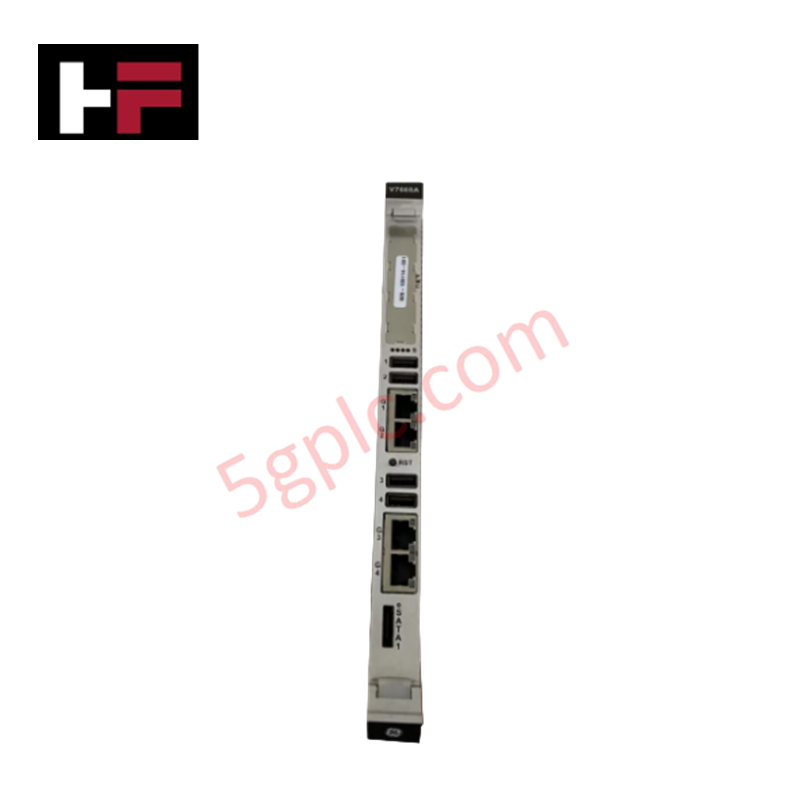

The General Electric V7668A-132L00, also cataloged as the V7668A Single Board Computer, operates as a dedicated hardware component for high-speed processing and discrete signal acquisition within industrial automation platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | V7668A-132L00 |
| Brand | General Electric (GE Fanuc) |
| Origin | USA |
| Power Consumption | 24 VDC power supply input |
| Processor | Intel Core 2 Duo T7400, 2.167 GHz |
| Memory | 2 GB SODIMM + 1 GB Soldered RAM |
| Storage | 4 GB CompactFlash |
| I/O Points | 16 discrete input points |
| Input Type & Current | AC input, 5 mA per point |
| Signal Isolation | Optical isolation |
| Wiring & Status | Screw-terminal connections, individual point LEDs |
| Relative Humidity | 5 to 95% non-condensing |
Deterministic Network Execution & Backplane Communication
Driven by an Intel Core 2 Duo T7400 processor operating at 2.167 GHz, the V7668A-132L00 delivers high computational capacity across backplane bus communication velocity frameworks. The dual-tier RAM layout combining 1 GB soldered memory with a 2 GB SODIMM module provides high-speed execution space for control algorithms, while a 4 GB CompactFlash flash card maintains onboard firmware flash compatibility and OS storage.
To facilitate process signal integration, the board incorporates 16 optically isolated AC discrete input channels operating at 5 mA per point. Optical isolation isolates internal processor circuitry from field-side voltage noise and ground loops during high-speed data acquisition cycles across Ethernet/IP and Profinet deterministic networks.
Frequently Asked Questions
Q: What memory configuration is physically onboard the V7668A-132L00 SBC?
A: The board includes 1 GB of soldered RAM directly on the circuit board, 2 GB of expansion memory via a SODIMM socket, and 4 GB of non-volatile storage via an onboard CompactFlash card.
Q: What electrical characteristics define the 16 discrete input channels?
A: The 16 input points accept AC voltage signals drawing 5 mA per point, featuring individual optical isolation channels to protect processing logic from field transients.
Q: Can the CompactFlash storage card be removed while power is applied to the board?
A: No. System 24 VDC power must be completely disconnected before removing or inserting the CompactFlash card to prevent file system corruption or memory controller damage.
Field Installation Guidelines
- Power Disconnection: De-energize the main 24 VDC power supply to the chassis enclosure prior to card installation or maintenance.
- ESD Protection: Strap a grounded anti-static wrist band to a clean chassis earth point before removing the card from its protective sleeve.
- Board Alignment: Slide the single board computer carefully along the chassis slot card guide rails until the backplane edge connectors meet the rack interface.
- Fastener Engagement: Seat the front panel levers completely and hand-tighten all top and bottom retaining screws to ensure proper chassis grounding.
- Field I/O Wiring: Wire AC input signals into the designated screw-terminal interface blocks. Verify that signal wiring is separated from high-voltage motor circuits to limit electromagnetic coupling.
