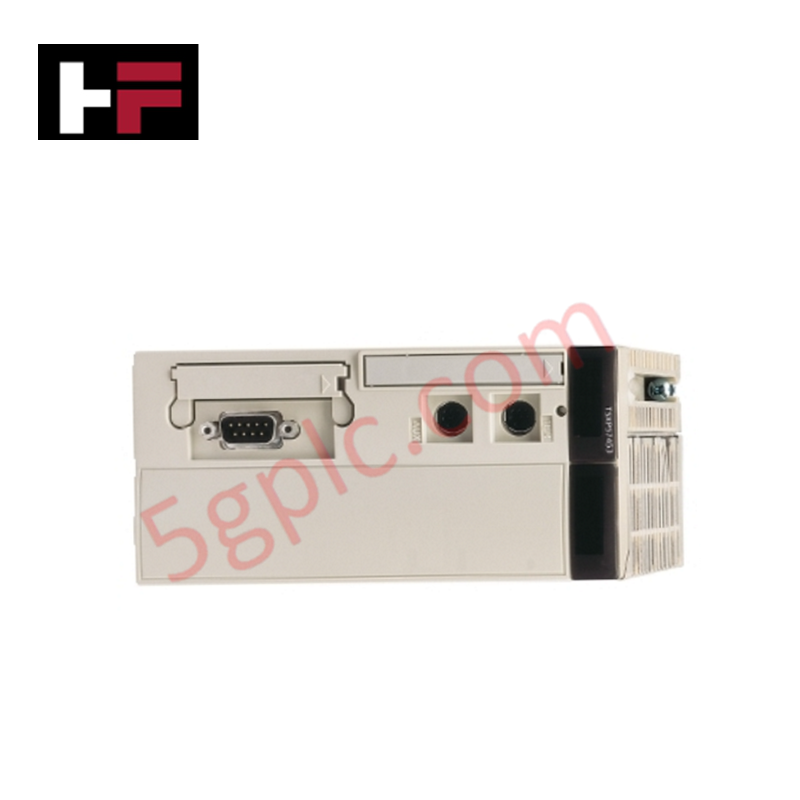

TSXP57453AM | Schneider Electric | Modicon Premium Double-Format PL7 Processor Module

Product Overview

The Schneider Electric TSXP57453AM acts as the high-capacity computational heart of the Modicon Premium automation platform. This double-format PL7 central processing unit executes complex process control loops, manages massive discrete and analog I/O arrays, and orchestrates multi-tiered fieldbus networks. Configured via PL7 Junior or PL7 Pro software, this processor orchestrates large-scale industrial control architectures including automotive assembly systems, continuous chemical processing plants, and extensive water treatment networks.

Technical Specifications

Engineering Advantages

• Integrated Large-Scale Fipio Network Management: Large industrial processing lines require direct control over dozens of remote distributed telemetry blocks. The TSXP57453AM embeds a dedicated Fipio Manager interface through a rugged SUB-D 9 connector, controlling up to 127 independent field agents directly from the CPU. This integrated master link removes the need for standalone network communication cards and reduces engineering programming overhead.

• Massive Multi-Rack I/O Aggregation: Complex infrastructure operations frequently demand extensive digital and analog signal density across vast cabinet footprints. This processor commands up to 16 separate 4, 6, or 8-slot racks, or up to 8 premium 12-slot racks simultaneously, enabling a total system mapping of up to 128 physical module slots. It scans 2,040 discrete points and 256 analog channels smoothly without causing cycle delays.

• Ultra-Fast Deterministic Logic Engine: High-speed motion positioning and packaging lines depend on highly predictable software execution intervals. The TSXP57453AM processes a binary Boolean instruction in just 0.06 microseconds and completes complex floating-point calculations in 1.7 microseconds. This processing speed delivers a steady throughput of 13.82 Kinstructions per millisecond, satisfying strict timing windows for high-speed machinery.

• Multi-Tiered Interrupt Prioritization Architecture: Critical emergency shutdown routines and precision tracking sensors must bypass standard cyclic program delays. This controller handles 64 independent event tasks alongside a specialized fast task loop. When an external hardware event trips an interrupt input, the CPU temporarily pauses the main master scan line and solves the targeted logic block instantly, ensuring immediate real-time safety positioning.

• Flexible PCMCIA Expansion Scaling: Standard built-in memory blocks limit long-term data logging, recipe retention, and future code expansions. The TSXP57453AM supplements its 96 Kwords base internal RAM with a dual PCMCIA card expansion interface. This expansion slots in up to 992 Kwords of additional program code and 2,048 Kwords of secondary data storage, providing ample room for comprehensive process monitoring variables.

FAQs

• Is this TSXP57453AM processor module a brand new original unit?

  Yes. We supply this product strictly as a 100% brand new, original factory-sealed unit. The processor arrives inside its authentic original Schneider Electric corporate box with all factory packing clips, protective port caps, and anti-static protective wrapping intact.

• Does this double-width module require two separate backplane power supplies?

  No. Although the double-format casing physically occupies two physical slots on a standard Modicon Premium rack backplane, it draws its total operational electrical power of 1080 mA at 5V DC through a single backplane bus connection interface. It leaves adjacent slot communication lines open for complementary I/O mapping.

• Can I program this specific processor version using Unity Pro or EcoStruxure Control Expert?

  The TSXP57453AM is a dedicated PL7 architecture processor designed natively for PL7 Junior or PL7 Pro application software environments. If your facility requires migration into Unity Pro or EcoStruxure Control Expert, you must first execute a hardware firmware upgrade or convert your existing PL7 database files using official Schneider Electric software translation tools.

• How does the front panel help maintenance crews troubleshoot runtime errors?

  The faceplate provides five independent diagnostic LEDs that show system status immediately. A green RUN LED indicates active code execution. Red FIP and TER LEDs flash to show active communications or wiring bugs on the Fipio and terminal serial lines. Dedicated red I/O and ERR LEDs light up instantly during local configuration mismatches or internal hardware faults, speeding up troubleshooting and reducing plant downtime.
