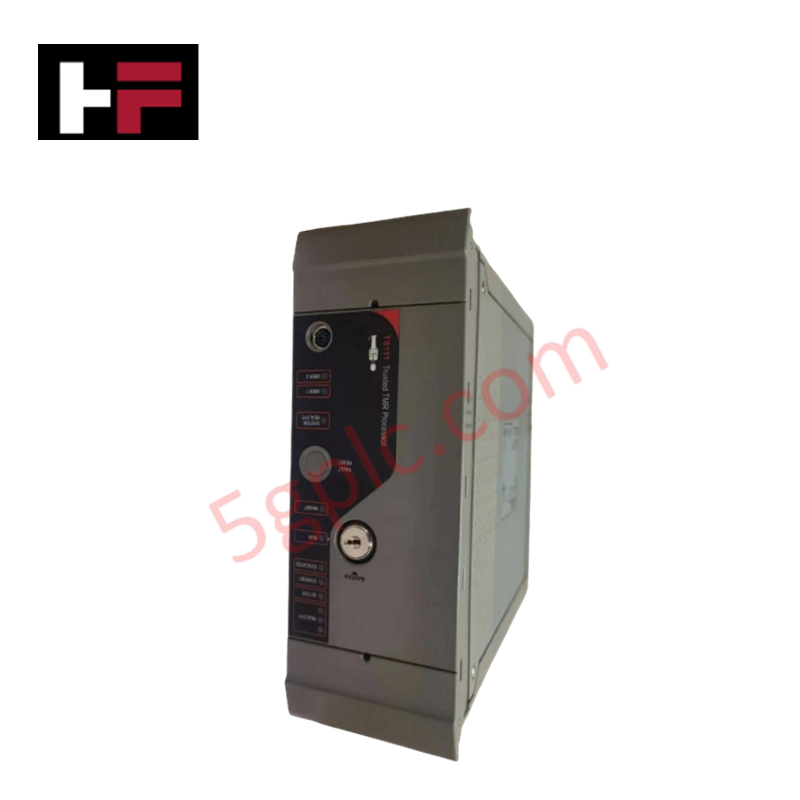

Configured for fault-tolerant safety logic execution in T8100 chassis platforms, the ICS Triplex T8111 (T8111 Trusted TMR Processor Module) provides direct physical/electrical execution. The processor module executes application logic across a triple-redundant Inter-Module Bus, synchronizing voter architecture and logic routines over high-speed system backplanes.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | T8111 |
| Brand | ICS Triplex |
| Origin | United Kingdom |
| Weight | 2.90 kg (6.39 lb) |
| Dimensions | 266 mm x 93 mm x 303 mm (10.5 in x 3.6 in x 12.0 in) |
| Operating Temp | 0 deg C to +60 deg C (+32 deg F to +140 deg F) |
| Power Consumption | 80 W Maximum Load |
| Voltage Range | 20 VDC to 32 VDC |
| Compatible Chassis | T8100 |
| System Architecture | Triple Modular Redundant (TMR) 2oo3 |
| I/O Bus Interface | Triple Redundant Inter-Module Bus (IMB) |
| Relative Humidity | 10% to 95% non-condensing |
High-Reliability Safety Control & TMR Architecture
The T8111 processor utilizes a triple modular redundancy (TMR) 2oo3 architecture to satisfy SIL3 certification criteria in critical safety-instrumented systems (SIS). Fault-tolerant processing channels execute synchronized hardware majority voting across three isolated execution paths, ensuring continuous fail-safe state execution without interruption to system monitoring. Galvanic isolation across system bus channels isolates internal processor logic from field-side electrical transients and backplane voltage variances.
Frequently Asked Questions
Q: What chassis unit accommodates the primary T8111 TMR processor module?
A: The T8111 module is engineered specifically for installation into dedicated controller slots within the T8100 Trusted chassis backplane.
Q: How does the triple modular redundant architecture prevent fault propagation?
A: Triplicated processing channels independently evaluate input states and execute application logic, utilizing 2oo3 hardware voting to isolate single-point faults and maintain deterministic logic execution.
Field Installation Guidelines
- Confirm that the system chassis backplane power supplies are within the specified 20 VDC to 32 VDC operating range before seating the module into the T8100 chassis slot.
- Fully engage and tighten the upper and lower module retaining screws to ensure continuous chassis frame grounding and mechanical connection with the backplane.
- Maintain recommended vertical enclosure clearance above and below the rack assembly to allow sufficient heat dissipation for the 80 W thermal load.
- Verify signal ground continuity across cabinet earth buses to shield internal triple-redundant bus paths from high-frequency electromagnetic interference.
