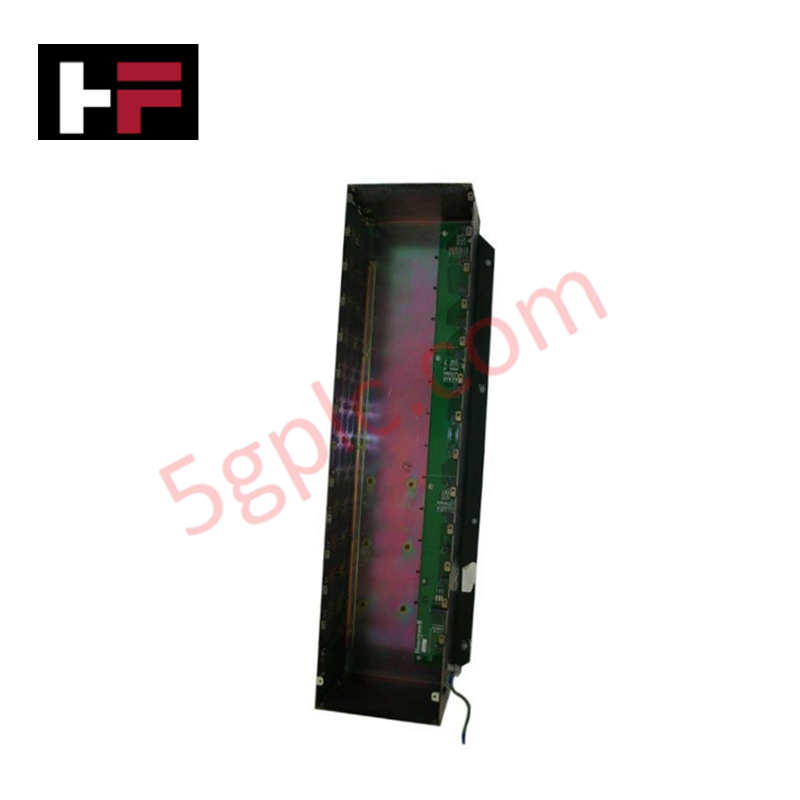

Honeywell 900R12-0001 ControlEdge HC900 12-Slot I/O Rack Chassis

Product Overview

The Honeywell 900R12-0001 serves as the high-capacity foundation for the ControlEdge HC900 automation system. This 12-slot I/O rack chassis provides the structural housing and high-speed communication backplane necessary for expansive process control architectures. It facilitates the integration of a wide array of analog and digital I/O modules, enabling large-scale data acquisition and control. We provide this unit in 100% Brand New and original factory condition, ensuring the mechanical alignment and electrical integrity required for high-uptime industrial environments.

Technical Specifications

The 900R12-0001 utilizes a heavy-duty backplane designed for maximum module density:

Engineering Advantages

• Maximized I/O Density: The 12-slot configuration solves the challenge of limited cabinet space. By centralizing up to 12 modules in a single footprint, it reduces the need for multiple smaller racks and interconnecting cables, simplifying the overall system topology.

• Superior Signal Decoupling: Advanced backplane trace routing minimizes electrical crosstalk between adjacent analog and high-speed digital modules. This design maintains signal purity, which is critical when mixing low-level thermocouple inputs with high-voltage discrete signals in the same chassis.

• Rigid Mechanical Stability: The chassis uses reinforced mounting points to resist the mechanical stress of heavy industrial vibration. This prevents fretting corrosion on the module-to-backplane gold fingers, a common failure point in environments with reciprocating machinery.

• Enhanced Thermal Airflow: The rack geometry optimizes natural convection currents across all 12 slots. This passive cooling prevents localized hot spots, ensuring that even fully populated racks stay within their operational temperature range without requiring forced-air cooling in most standard enclosures.

FAQs

Q: Can I use the 900R12-0001 as a remote I/O rack?

A: Yes. When paired with a 900S50 or 900S75 scanner module, this 12-slot rack functions as a distributed I/O station, transmitting data back to the central HC900 controller via Ethernet.

Q: Does this rack include the power supply or the CPU?

A: No. This part number refers to the empty 12-slot chassis and backplane. You must purchase the power supply (900P01) and the desired I/O modules separately to complete the assembly.

Q: Is the 900R12-0001 compatible with older HC900 modules?

A: This rack maintains backward compatibility with legacy HC900 I/O modules. However, we recommend verifying that your current module revisions align with the ControlEdge platform standards to ensure full diagnostic capability.

Q: How do I ensure proper grounding for this 12-slot rack?

A: The chassis features a dedicated grounding stud. You must connect this to a low-impedance earth ground to dissipate static charges and provide a path for EMI shielding, protecting the internal digital logic from field-induced transients.
