Product Overview

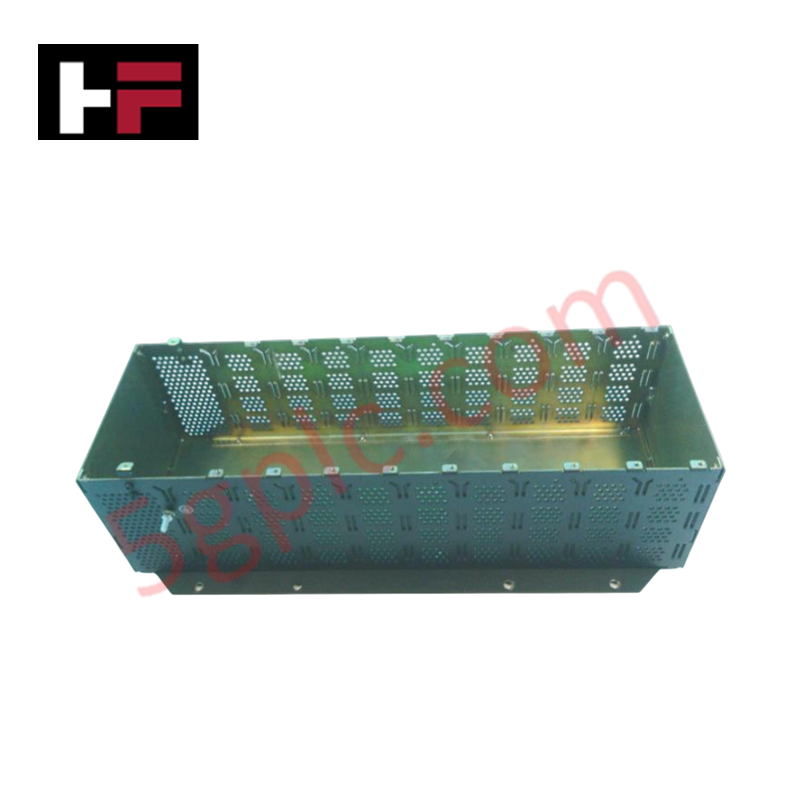

The Honeywell 900R08-0101 acts as the high-integrity structural and electrical backbone for the ControlEdge HC900 automation system. This 8-slot I/O rack assembly provides the physical mounting points and the high-speed communication backplane necessary for various input/output modules. It distributes dual-voltage power (5 VDC and 24 VDC) across all slots to ensure consistent module performance. We supply this unit in 100% Brand New and original factory condition, guaranteeing the mechanical precision and electrical conductivity required for critical process control.
Technical Specifications
The 900R08-0101 utilizes a heavy-duty design to manage high-density I/O configurations:
| Parameter | Specification |
| Module Capacity | 8 I/O Slots |
| System Compatibility | Honeywell HC900 Controller Series |
| Backplane Voltages | 5 VDC and 24 VDC |
| Current Rating | 2 Amps / 6 Amps |
| Function | I/O Module Housing & Signal Routing |
| Dimensions | Standard HC900 Rack Footprint |
| Weight | 5.75 lbs (2.61 kg) |
| Construction | Industrial-grade reinforced chassis |
Engineering Advantages
-
Optimized Thermal Management: The 900R08-0101 features an open-frame design that promotes natural convection. This prevents heat buildup between densely packed I/O modules, solving the common industrial issue of component derating in unventilated control cabinets.
-
High-Speed Backplane Integrity: Gold-plated connectors and low-impedance trace routing eliminate signal crosstalk and data packet loss. This ensures that the HC900 CPU maintains a deterministic scan rate even when the rack hosts a full load of high-speed analog and digital modules.
-
Dual-Voltage Distribution: The assembly manages 5 VDC for internal logic and 24 VDC for field-side sensing through separate power planes. This architecture simplifies wiring and protects sensitive digital processors from the electrical noise generated by field-side switching.
-
Rugged Mechanical Foundation: Weighing 5.75 lbs, the chassis utilizes rigid materials to resist vibration and mechanical shock. This prevents micro-arcing and fretting corrosion at the module-to-backplane interface, which is a frequent cause of intermittent faults in aging or lower-quality surplus racks.
FAQs
Q: Can I install a Control Processor Module (CPM) in this rack?
A: No. The 900R08-0101 specifically hosts I/O modules and I/O scanners. Redundant processors require a dedicated redundant CPU rack (such as the 900RR0 series).
Q: Does this rack assembly include the power supply?
A: No. This part number covers the 8-slot rack and backplane assembly. You must purchase the 900P01 (AC) or 900P24 (DC) power supply modules separately to energize the backplane.
Q: How do I address the modules installed in this rack?
A: The rack hardware defines the slot positions. When you insert a module, the HC900 controller identifies its position based on the physical slot (1 through 8). Ensure you set the rack address correctly via the dip switches on the scanner module inserted into the rack.
Q: Is this 900R08-0101 a new original or a "cleaned" surplus unit?
A: This is 100% Brand New original Honeywell hardware. We do not sell refurbished racks for HC900 systems, as backplane reliability is non-negotiable for system safety and uptime.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
