AMM32 | Yokogawa Universal Analog I/O Module for CENTUM CS/VP Systems

Product Overview

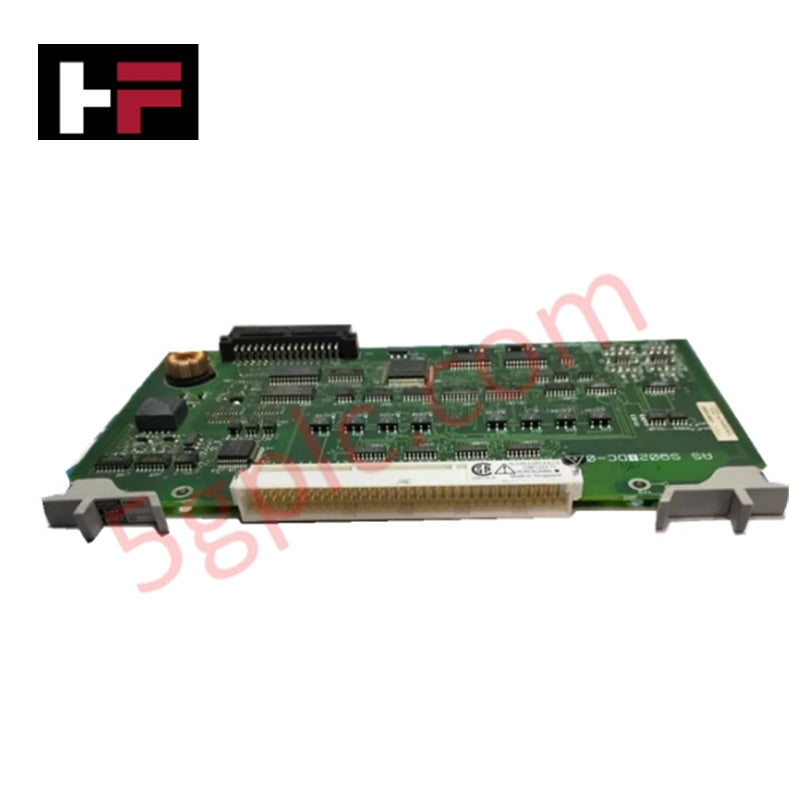

The Yokogawa AMM32 is a high-density, universal analog input/output module engineered for the CENTUM CS and CENTUM VP distributed control systems (DCS). It is designed to consolidate a wide variety of field signals into a single, space-saving unit, significantly reducing wiring complexity and panel footprint. By supporting multiple signal types—including voltage, current, RTDs, and thermocouples—the AMM32 offers unparalleled flexibility for process control applications in industries such as oil & gas, chemicals, and power generation. This module ensures precise signal acquisition and reliable control output, critical for maintaining operational efficiency and safety.

Technical Specifications

The following table outlines the key technical parameters for the AMM32 module.

Model Code Interpretation

For Yokogawa modules, the specific suffix codes (e.g., -S3, -H50) often define the connector type, isolation level, or specific hardware revision. While the base model "AMM32" refers to the 32-channel universal I/O function, the full part number determines the exact physical interface.

Example of Yokogawa Suffix Logic:

In a typical Yokogawa part number structure like AMM32-S3:

• AMM32: Indicates the base module type (32-channel Analog Multiplexer/I/O).

• S3: This suffix typically designates the connector style and terminal compatibility.

• S: Often refers to the "Spring-clamp" or specific terminal block style compatible with the AMN series carrier boxes.

• 3: Denotes the specific revision or voltage rating class compatible with the backplane.

Note: Always verify the specific suffix code on the module label against your system's I/O allocation sheet to ensure compatibility with your existing carrier and cabling.

Installation and Wiring Guidelines

Proper installation is critical to ensure signal integrity and system safety.

1. Safety First: Always disconnect power to the CENTUM system and the field wiring before inserting or removing the module. Although some Yokogawa systems support hot-swapping, it is best practice to power down when possible to prevent backplane damage.

2. Carrier Compatibility: The AMM32 is designed to mount into specific I/O carrier boxes (such as the AMN series). Ensure the module is firmly seated in the slot and locked in place.

3. Wiring Connections:

• Signal Inputs: Use shielded twisted-pair cables for all analog signals (RTD, Thermocouple, mA) to minimize electromagnetic interference (EMI).

• Grounding: Ensure the shield is grounded at the control cabinet end to prevent ground loops.

• Terminal Check: Refer to the wiring diagram specific to the signal type you are using (e.g., 2-wire vs. 4-wire transmitter) as the AMM32 is a universal module and requires correct configuration in the engineering software (IEC 61131-3 environment).

4. Environmental Limits: Ensure the control room temperature remains within the -10°C to +55°C operating range to prevent thermal shutdown or drift in analog readings.

Frequently Asked Questions (FAQ)

Q: Is the AMM32 compatible with the CENTUM VP system?A: Yes, the AMM32 is fully compatible with both CENTUM CS and the newer CENTUM VP systems, offering a migration path for legacy hardware.

Q: What types of signals can this module handle simultaneously?A: As a "Universal" module, it is highly flexible. However, typically channels are configured in groups. It supports a mix of analog inputs (Voltage, Current, RTD, Thermocouple) and digital/discrete signals depending on the specific configuration set in the system engineering software.

Q: Can I replace an older AMM module with the AMM32?A: In most cases, yes. The AMM32 is designed as a high-performance replacement for older multiplexer modules, offering higher density (32 channels) and broader signal support. Please check the carrier box compatibility (AMN series) before upgrading.

Q: Does this module support HART communication?A: While the module handles standard analog signals, specific HART communication capabilities depend on the system configuration and the specific sub-model suffix.
