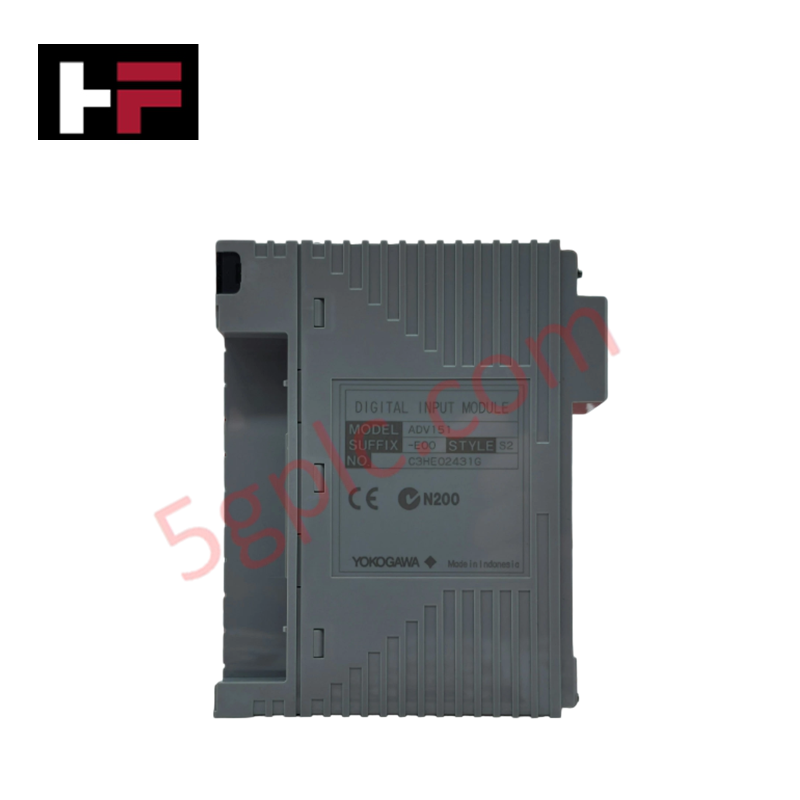

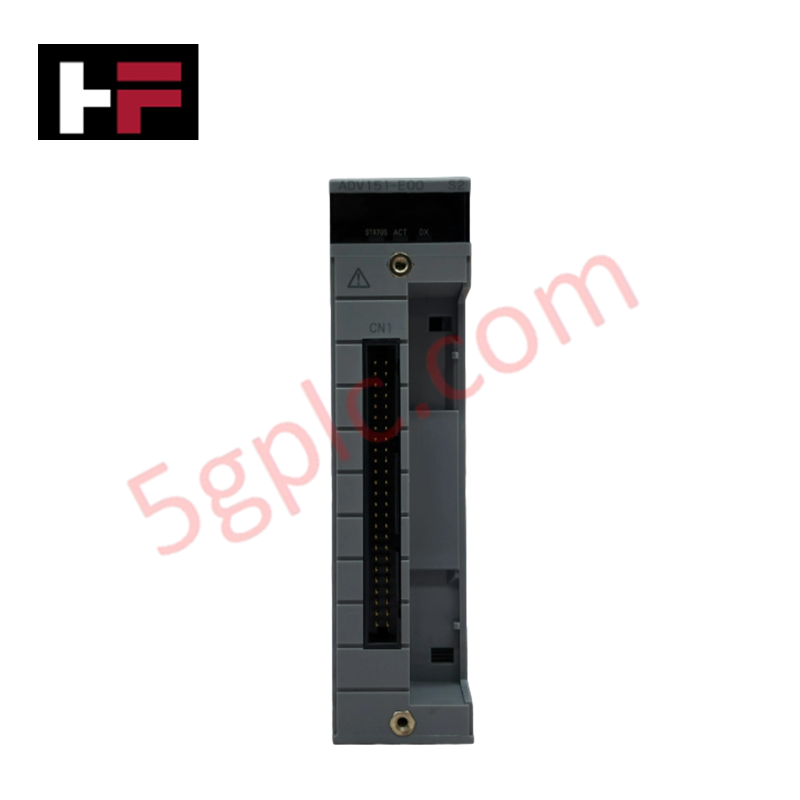

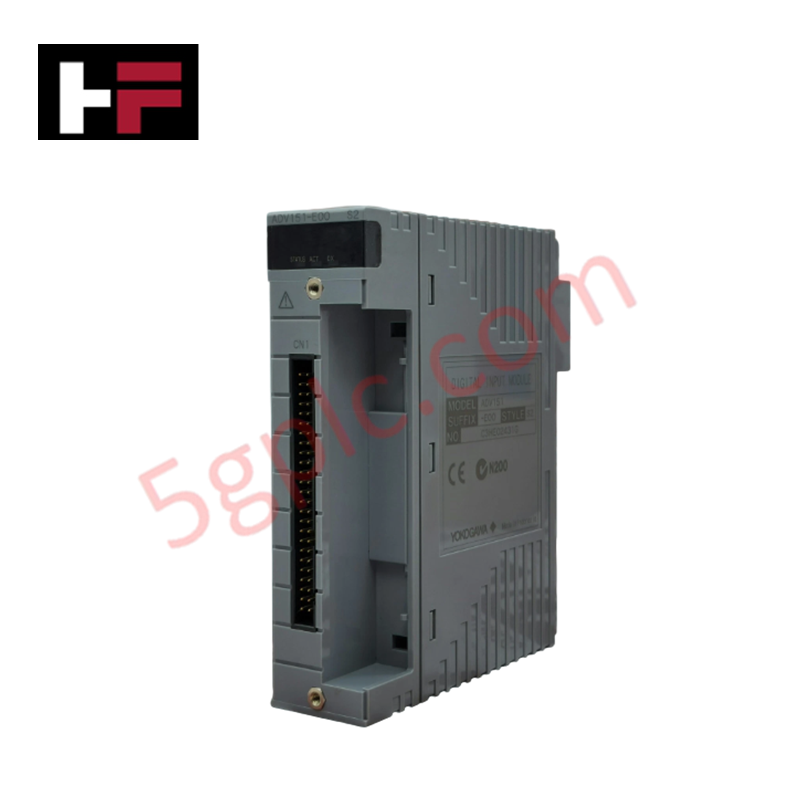

ADV151-E00 | Yokogawa CENTUM VP/FIO Digital Input Module

Product Overview

The Yokogawa ADV151-E00 functions as a high-density digital input interface for the CENTUM VP and CS 3000 FIO (Field network I/O) systems. This module provides 32 isolated channels to monitor discrete field states from devices such as pressure switches, limit switches, and relay contacts. It converts field-level signals into system-level data while providing a robust electrical barrier to protect the control network. We supply this module as 100% brand new, original factory equipment to ensure maximum reliability for your distributed control system (DCS).

Part Number Breakdown: ADV151-E00

• ADV151: Digital Input Module (32-channel, isolated).

• -E: Standard type with extended environmental specifications.

• 0: Always 0 (Standard configuration).

• 0: Basic type without specialized coating.

Technical Specifications

• Manufacturer: Yokogawa

• Number of Channels: 32 (Isolated)

• Input Voltage: 24 V DC

• Input Current: 4.1 mA (at 24 V DC)

• Isolation: Channel-to-system and channel-to-channel isolation

• Power Consumption: 500 mA max (supplied via FIO base module)

• Dimensions: 130 mm × 107.5 mm × 32.8 mm

• Weight: 0.3 kg

• Mounting: Plug-in installation on FIO baseplate

• Condition: 100% Brand New Original

Engineering Advantages

The ADV151-E00 optimizes signal acquisition through superior hardware engineering and high-density integration:

• Total Electrical Isolation: This module employs high-grade optoisolators for every channel. This architecture prevents ground loops and blocks high-voltage surges from the field, ensuring that localized electrical faults do not damage the core DCS processors.

• High-Density Cabinet Savings: The 32-channel configuration doubles the input capacity compared to 16-channel modules within the same physical footprint. This allows engineers to consolidate I/O wiring and reduce the total number of required nests and cabinets.

• Advanced Noise Filtering: Integrated hardware filters eliminate signal "chatter" and debouncing issues caused by mechanical contacts in the field. This ensures the DCS receives clean, stable status updates even in high-vibration or electrically noisy environments.

• Hot-Swappable Maintenance: The module supports "hot-plugging" on the FIO baseplate. Maintenance teams can replace a module without powering down the entire I/O nest, significantly reducing downtime during routine system upgrades or repairs.

FAQs

• Does the ADV151-E00 require an external power supply for the field inputs?

  Yes. While the module's internal logic draws power from the FIO baseplate, you must provide a 24 V DC external power source for the field loops to sense the status of the input contacts.

• Can I use this module with the older Centum CS 3000 system?

  Yes. The ADV151-E00 remains fully compatible with both Yokogawa Centum CS 3000 and the newer Centum VP platforms that utilize the FIO architecture.

• What is the benefit of the "-E" suffix in the part number?

  The "-E" designation signifies the module complies with specific industrial standards for electromagnetic compatibility and operating temperature ranges, making it suitable for standard industrial control room environments.

• Is this product a genuine Yokogawa component?

  We guarantee that every ADV151-E00 we ship is 100% brand new and original. Each unit arrives in its original factory packaging and includes our standard 1-year warranty.
