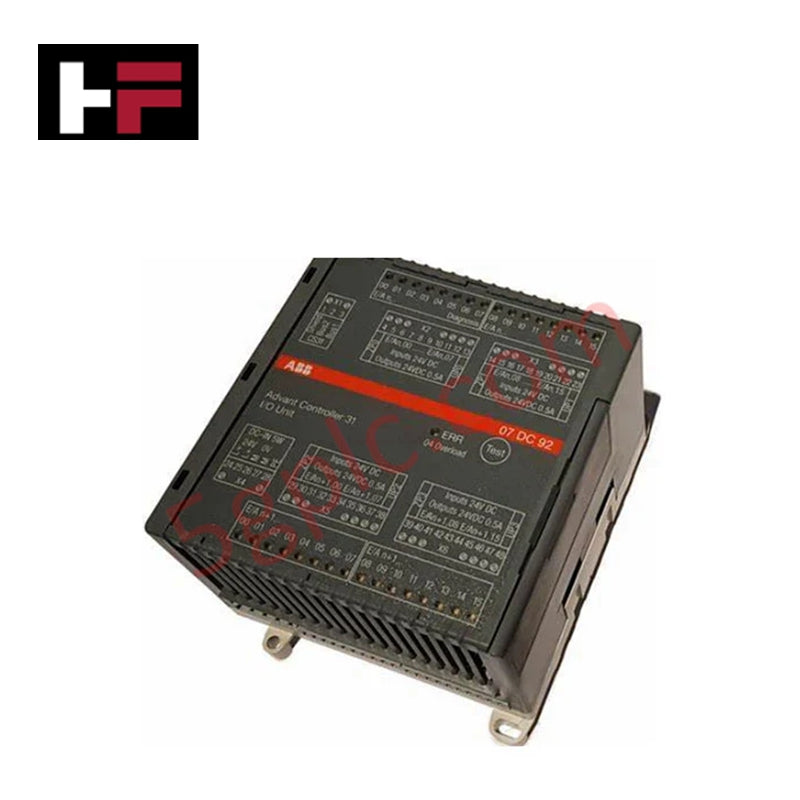

ABB 07 DC 92 | Digital Configurable I/O Module | Input Output Controller

Overview

The ABB 07 DC 92 is a compact digital configurable input/output module engineered for flexible signal management in industrial automation systems. It offers a balance of control and monitoring capabilities, supporting both input and output configurations on the same hardware. Designed for integration within distributed process control architectures, this module ensures reliable performance under demanding industrial conditions.

Technical Specifications

• Model Number: 07 DC 92

• Manufacturer: ABB

• Product Type: Digital Input/Output Module

• Number of Channels: 16 configurable digital I/O channels

• Signal Type: Discrete (On/Off)

• Nominal Voltage: 24 V DC

• Channel Current Rating: Up to 0.5 A per channel

• Switching Capacity: Optimized for low-power and standard logic control circuits

• Mounting Options: DIN rail or panel mounting

• Operating Temperature Range: 0°C to +60°C

• Insulation Type: Galvanic isolation between field and logic circuits

• Status Indicators: Integrated diagnostic LEDs for each channel

• Protection Rating: IP20 (suitable for control cabinet installation)

• Response Time: <1 ms (typical switching response)

• Module Weight: Approximately 0.5 kg

Key Features

• Configurable channels for flexible I/O assignment

• Supports mixed digital input and output operation within one module

• LED diagnostics for real-time signal and fault indication

• Rugged design ensuring stable operation in continuous process environments

• Compatible with ABB’s Advant Controller and AC31 automation families

• Easy integration through standard industrial communication interfaces

Application Scenarios

The 07DC92 module is ideal for:

• Machine automation systems requiring high-speed digital control

• Process plants with modular I/O configurations

• Distributed control systems using ABB Advant Controller 31 or AC31 platforms

• General-purpose industrial signal switching and status monitoring

FAQ

Q: Can the 07DC92 be configured as both input and output within one system?
A: Yes. Each channel can be programmed as either an input or output, providing flexible I/O configuration options.

Q: What voltage level does the module operate on?
A: The unit operates at 24 V DC nominal, suitable for most industrial control systems.

Q: How is diagnostic feedback provided?
A: Each channel includes a status LED indicator that displays active state and fault conditions.

Q: What type of mounting is supported?
A: The 07DC92 supports both DIN rail and panel mounting, ensuring easy system integration.
