1VCF750132807 | ABB | BIO3 Input/Output Modules

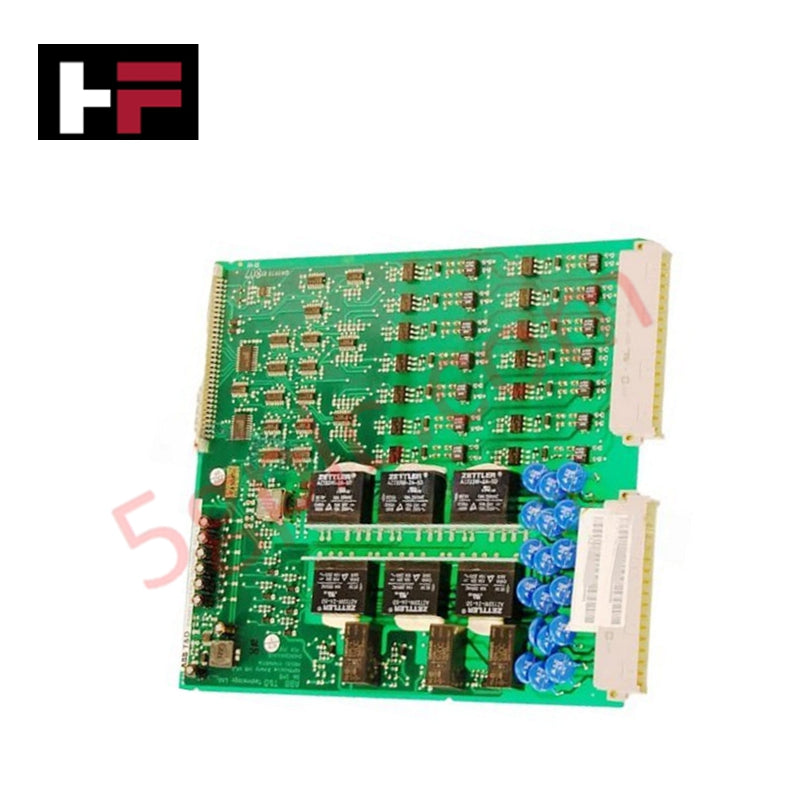

Configured for discrete signal scanning and logic execution in industrial control nodes, the ABB 1VCF750132807 (BIO3 176-264VDC (143VDC) Input/Output Module) provides direct physical/electrical execution.

Hardware Specifications

Backplane Bus Communication Velocity and System Clock Sync

The 1VCF750132807 interfaces with the node controller across high-density connection pins that maintain uniform backplane bus communication velocity. The binary module maps physical high-voltage contact inputs directly to internal memory arrays within fixed microsecond cycles. Hardware filtering circuits suppress transients and mechanical contact bounce across the 176-264 VDC operational window, preventing signal noise from interrupting the real-time deterministic software task. By implementing physical I/O density scaling options across localized racks, the interface module transfers processed field status bits into local register structures simultaneously with the centralized system clock.

Frequently Asked Questions

Q: What is the technical behavior of the 143 VDC rating on the 1VCF750132807?

A: The 143 VDC specification dictates the physical switching threshold for the binary logic input circuits. Any applied field potential above 143 VDC forces the module log into a logic state of 1, whereas voltage drops substantially beneath this marker cause the input channel to transition back to a logic state of 0.

Q: Can the 1VCF750132807 module be hot-swapped while the primary backplane is actively cycling data?

A: Physical insertion or extraction of this unit under active backplane power requires verification of the parent rack's design parameters. If the hardware frame lacks dedicated pre-charge grounding pin trails, removing the module can interrupt the localized internal bus velocity and trigger master chassis communication errors.

Field Installation Guidelines

1. Subrack Insertion Mechanical Alignment: Align the top and bottom edge tracks of the 1VCF750132807 with the corresponding module slot guides within the subrack housing. Push the assembly inward until the rear pins seat completely into the backplane matrix.
2. Terminal Wire Connection Integrity: Fasten the high-voltage discrete loop wires into the dedicated terminal block matching the module layout. Maintain firm terminal screw retention to lower contact resistance across the 176-264 VDC voltage paths.
3. Common Return Grounding Protocol: Connect the system common and return paths to the appropriate bus terminations within the instrumentation cubicle. Do not share input returns with inductive power links to minimize electrical interference across sensor loops.
4. Wiring Separations and Cable Management: Route high-voltage binary loop cables separate from low-voltage network trunks and fiber systems inside the enclosure wireways. This prevents high-voltage capacitive coupling from inducing stray voltages across deterministic networks.
