DS200TCPSG1APE | GE | Mark V Speedtronic Power Supply DC Input Board

Product Overview

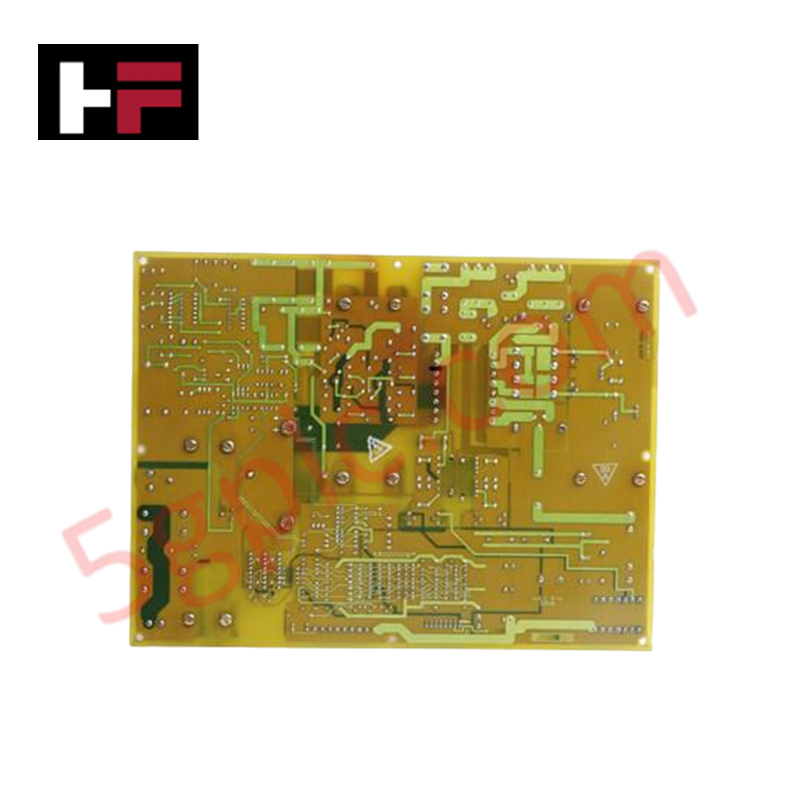

The DS200TCPSG1APE functions as a primary Power Supply DC Input Board specifically engineered for the GE Speedtronic Mark V gas turbine control system. This essential module converts and regulates DC input power to support internal drive logic and auxiliary components. We supply this unit as 100% Brand New, ensuring your turbine control system maintains maximum uptime with original manufacturer hardware.

Technical Specifications

The DS200TCPSG1APE features a high-density circuit layout designed for heavy-duty industrial power regulation:

Engineering Advantages

• Active Fault Detection: The board works in tandem with the Mark V drive’s internal diagnostic tools. Operators use the 2-line display interface to monitor the board's health and instantly identify malfunctions within the wider drive assembly.

• Streamlined Data Export: The DS200TCPSG1APE supports serial connection downloads. Engineers can extract diagnostic files to a laptop for detailed reporting, printing, or remote technical consultation, eliminating guesswork during maintenance.

• Robust Over-current Protection: Three strategically placed fuses shield the PCB from input surges. This localized protection prevents power irregularities from damaging more expensive downstream control boards.

• Dynamic Program Management: Through the interface panel menus, users alter drive programs and regulate operating behavior directly. This flexibility allows for precise tuning of the power supply performance during active turbine runs.

Installation & Maintenance Protocol

1. Serial Interface Setup: To download diagnostic reports, utilize a high-quality serial cable compatible with both the drive's serial port and your technician's laptop.

2. Fuse Inspection: Always verify the integrity of the three on-board fuses before commissioning the board. A blown fuse often indicates an upstream DC input issue that requires resolution before the new board activates.

3. Software Interaction: Use the interface panel keys to navigate configuration menus. The system confirms a successful download via an on-screen notification, ensuring data integrity before you disconnect the hardware.

FAQs

• Is the DS200TCPSG1APE compatible with all Mark V systems? This board specifically serves as the Power Supply DC Input for Mark V gas turbine control architectures. Always verify your specific drive configuration via the GEI instruction manuals to ensure functional parity.

• How do I troubleshoot a suspected board failure? Access the diagnostic tools via the drive’s interface panel. Use the menu options to run a diagnostic routine on various drive components; the resulting file will appear on the 2-line display or can be exported via the serial port.

• What is the benefit of the integrated test points? The physical test points allow field engineers to use multimeters to verify voltage levels at specific circuit stages, providing a secondary layer of hardware verification beyond the software diagnostics.

• Is this unit a refurbished part? No. This specific listing is for a 100% Brand New original GE DS200TCPSG1APE board, providing the highest level of reliability and service life compared to rebuilt or used alternatives.
